2011 Yamaha RAPTOR 250 Steering OEM Parts Diagram

Submodel RAPTOR 250 - YFM25RAL - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

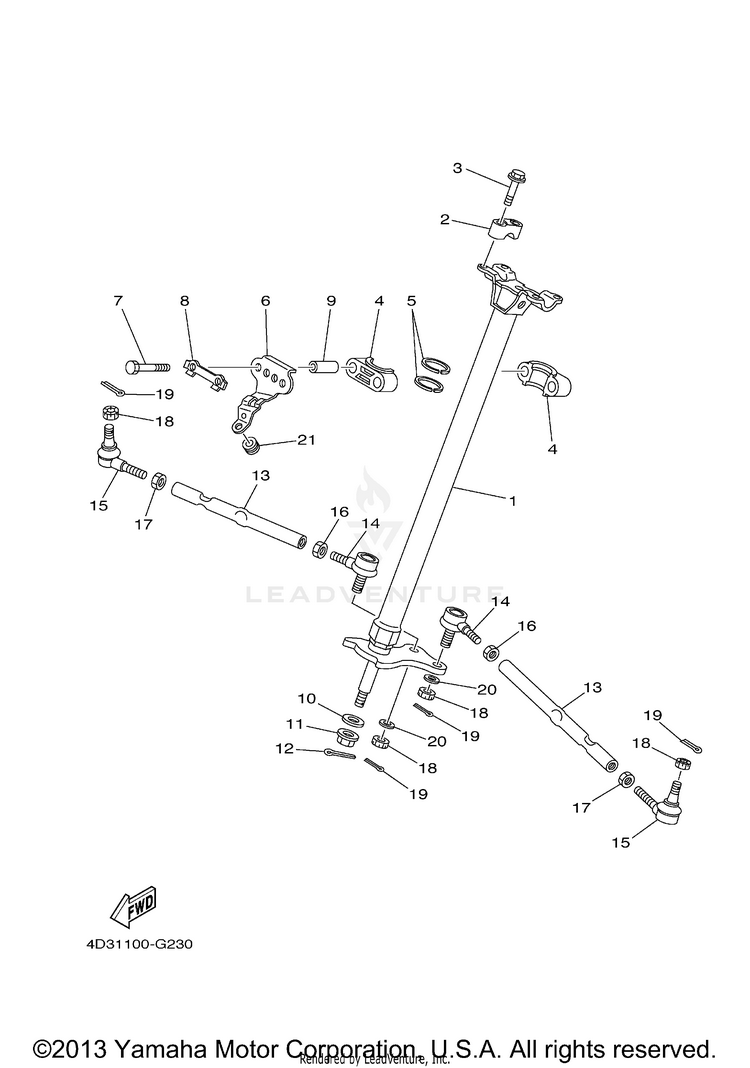

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14D3-23813-00-00COLUMN, STEERING 2$275.99$215.273 In-Stock
21E6-23441-00-00

(replaces part #
8K1-23814-00-00)

HOLDER, HANDLE UPR (1E6-23441-0$30.99$24.1710+ In-Stock
395817-08030-00

(replaces part #
95822-08030-00)

BOLT, FLANGE$9.49$7.408 In-Stock
41UY-23812-00-00PLANE BEARING, STEERING$26.99$21.0510+ In-Stock
593112-31011-00OIL SEAL$10.49$8.1810+ In-Stock
64D3-23868-00-00BRACKET, STEERING LOWER$15.49$12.083 In-Stock
797017-08055-00

(replaces part #
97022-08055-00)

BOLT$10.49$8.186 In-Stock
81UY-23894-01-00WASHER, LOCK 1$8.49$6.6210+ In-Stock
990387-106T4-00

(replaces part #
90387-090R0-00)

COLLAR (903-87090-R0-00)$16.49$12.8610+ In-Stock
1090201-10036-00WASHER, PLATE$8.49$6.6210+ In-Stock
1190185-10019-00NUT, SELF-LOCKING$9.49$7.4010+ In-Stock
1291490-20025-00

(replaces part #
91401-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
134D3-23831-00-00ROD, TIE$42.99$33.535 In-Stock
141UY-23841-01-00JOINT, UNIVERSAL 1$83.99$65.517 In-Stock
AFTERMARKET ALTERNATIVE
$29.99$24.9910+ In-Stock
151UY-23845-01-00JOINT, UNIVERSAL 2$83.99$65.519 In-Stock
AFTERMARKET ALTERNATIVE
$29.99$24.9910+ In-Stock
1695380-10700-00

(replaces part #
95302-10700-00)

NUT$6.49$5.0610+ In-Stock
1790170-10010-00NUT | (L.H. THREAD)$3.35$2.8810+ In-Stock
1890171-10001-00NUT, CASTLE$3.55$3.0510+ In-Stock
1991490-20025-00

(replaces part #
91401-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
2090209-10229-00WASHER$8.49$6.6210+ In-Stock
2190480-12475-00

(replaces part #
90480-15235-00)

GROMMET$9.49$7.4010+ In-Stock
