2011 Yamaha RAPTOR 90 Generator OEM Parts Diagram

Submodel RAPTOR 90 - YFM90RAW - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

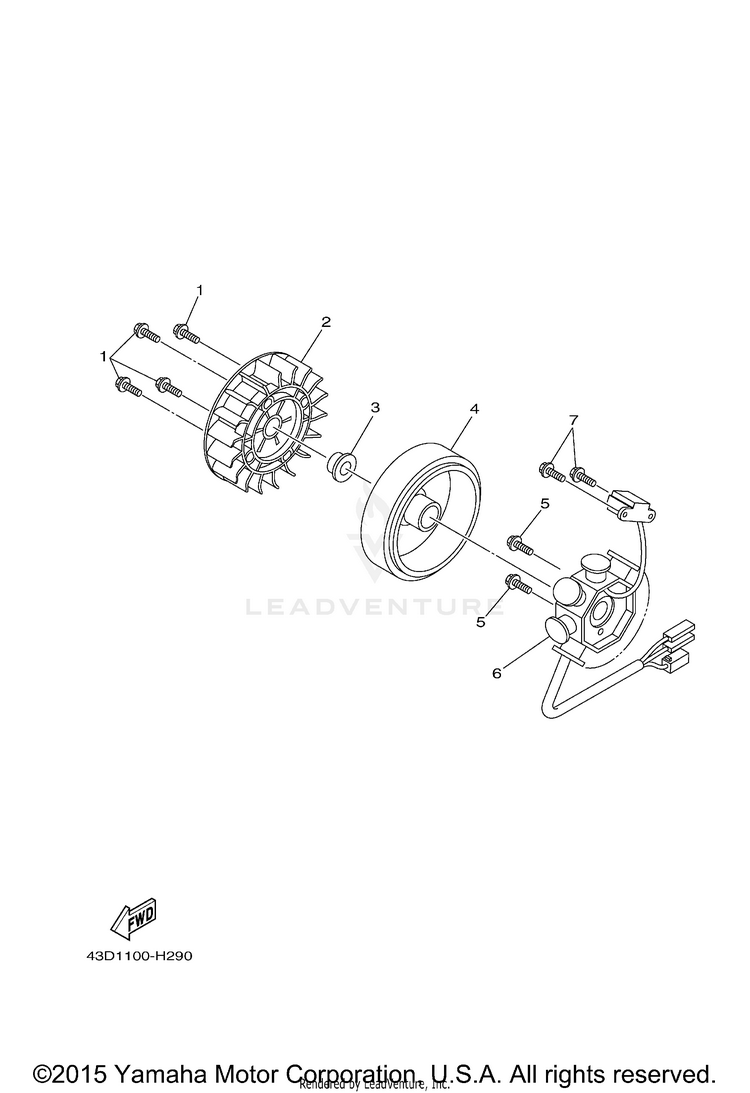

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
195022-06016-00BOLT, FLANGE$3.90$3.3510+ In-Stock
243D-E2611-00-00FAN$41.99$34.43Usually ships in 7-10 business days
390179-12588-00

(replaces part #
43D-E3588-00-00)

NUT, FLANGE$8.49$6.6210+ In-Stock
443D-H5550-00-00ROTOR ASSY$152.99$121.41Usually ships in 7-10 business days
595022-06020-00BOLT, FLANGE$3.90$3.3510+ In-Stock
643D-H5510-00-00STATOR ASSY$346.99$270.65Usually ships in 7-10 business days
743D-F1532-00-00BOLT 2$2.50$2.25Usually ships in 7-10 business days
