2011 Yamaha V-Star Tourer XVS950 Crankcase OEM Parts Diagram

Submodel V STAR 950 TOURER - XVS95CTACB - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

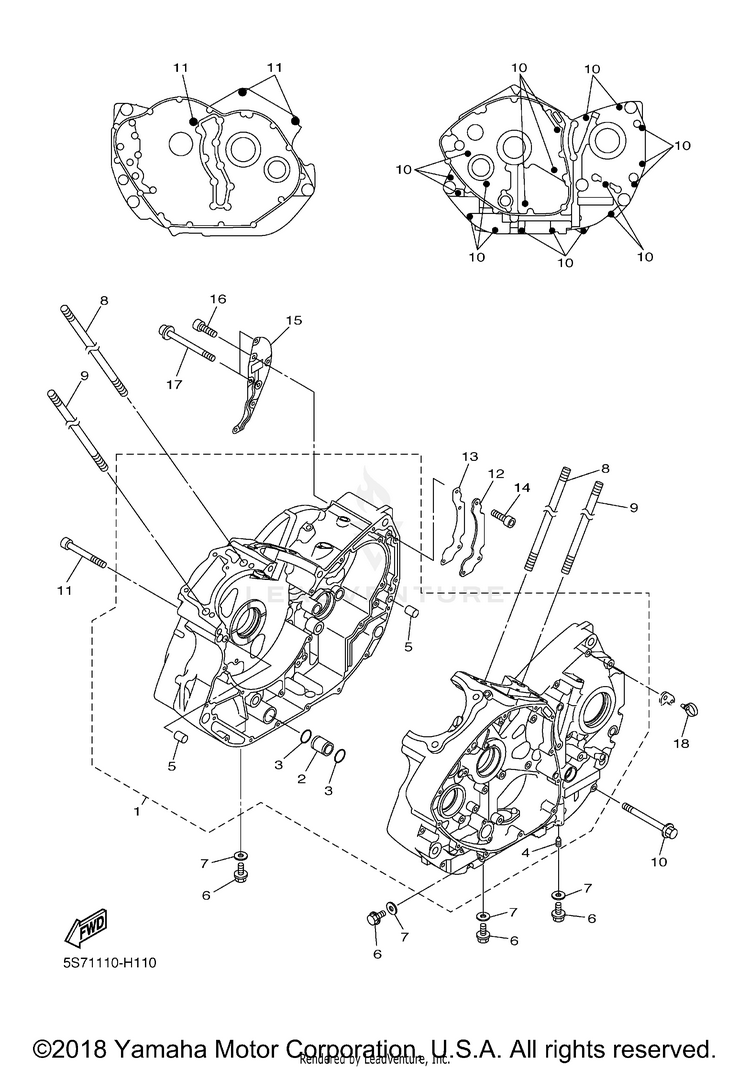

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15S7-15100-09-00

(replaces part #
5S7-15100-00-00)

CRANKCASE ASSY$1,482.99$1,296.75Usually ships in 7-10 business days
23D8-15154-00-00NOZZLE ASSY., 2$21.99$18.03Usually ships in 7-10 business days
393210-18319-00O-RING$10.49$8.60Usually ships in 7-10 business days
42H7-15138-00-00NOZZLE 1$4.85$4.36Usually ships in 7-10 business days
599530-10116-00PIN, DOWEL$4.40$3.7810+ In-Stock
695022-10016-00BOLT, FLANGE$9.49$7.4010+ In-Stock
790430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
890116-12012-00BOLT, STUD$17.49$14.34Usually ships in 7-10 business days
990116-12011-00BOLT, STUD$16.49$13.52Usually ships in 7-10 business days
1090105-06144-00BOLT, FLANGE$2.60$2.34Usually ships in 7-10 business days
1191314-10110-00

(replaces part #
90110-10030-00)

BOLT, HEXAGON SOCKET HEAD$8.99$8.09Usually ships in 7-10 business days
123D8-15358-00-00SEPARATOR, OIL$4.60$4.14Usually ships in 7-10 business days
133D8-15353-00-00GASKET, DRAIN$5.99$5.39Usually ships in 7-10 business days
1491317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
153D8-15368-00-00SEPERATOR, OIL$46.99$38.53Usually ships in 7-10 business days
1691317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
1790110-06250-00

(replaces part #
90110-06270-00)

BOLT, HEXAGON SOCKET$5.49$4.94Usually ships in 7-10 business days
1890464-16006-00CLAMP$10.49$8.182 In-Stock
