2011 Yamaha V-Star Tourer XVS950 Front Master Cylinder OEM Parts Diagram

Submodel V STAR 950 TOURER - XVS95CTACB - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

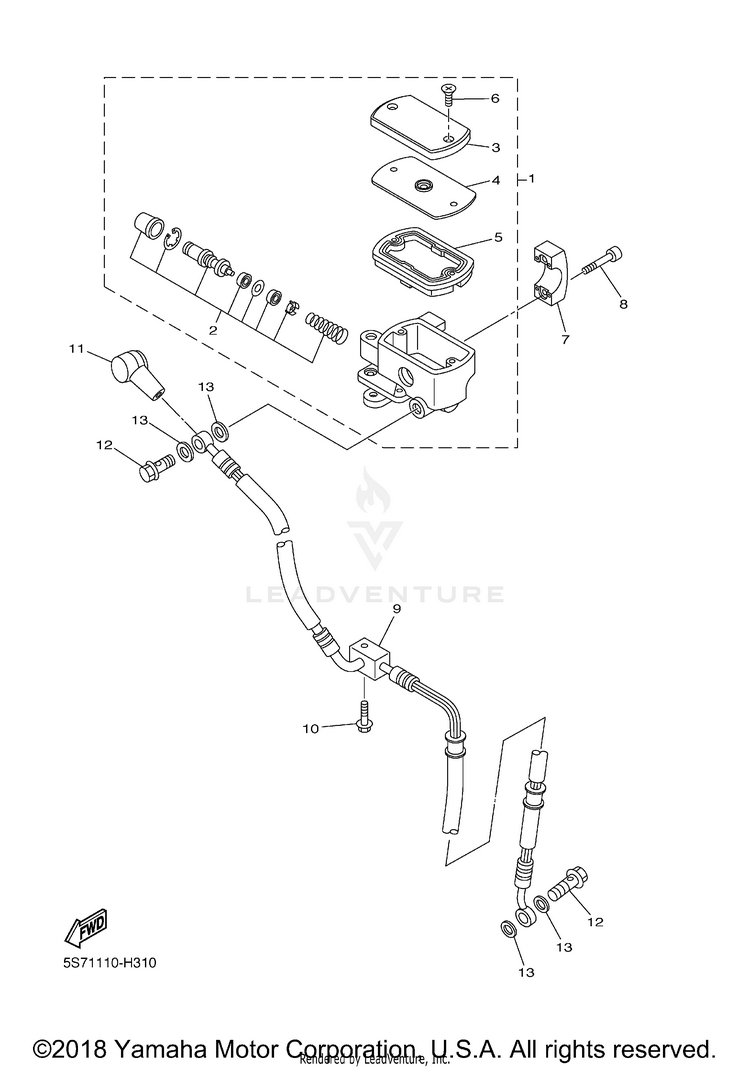

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15S7-25870-01-00

(replaces part #
5S7-W2587-01-00)

MASTER CYLINDER SUB ASSY$278.99$217.61Usually ships in 7-10 business days
21JL-25807-01-00

(replaces part #
1JL-W0041-00-00)

CYLINDER KIT, MASTER$86.99$67.85Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$29.80$28.315 In-Stock
33D8-25852-00-00CAP, RESERVOIR$48.99$40.17Usually ships in 7-10 business days
43D8-25855-00-00BUSH, DIAPHRAGM$5.99$5.39Usually ships in 7-10 business days
53D8-25854-00-00DIAPHRAGM, RESERVOIR$37.99$31.15Usually ships in 7-10 business days
63D8-2589H-00-00SCREW$7.49$6.74Usually ships in 7-10 business days
74TR-25867-10-00BRACKET, MASTER CYLINDER$43.99$36.07Usually ships in 7-10 business days
891314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
95S7-25872-00-00HOSE, BRAKE 1$131.99$102.95Usually ships in 7-10 business days
1090105-06791-00

(replaces part #
90105-06096-00)

BOLT, FLANGE$2.80$2.52Usually ships in 7-10 business days
114L0-25862-02-00

(replaces part #
4L0-25862-01-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
1290401-10020-00BOLT, UNION$10.49$8.602 In-Stock
1390430-10005-00GASKET$9.49$7.4010+ In-Stock
