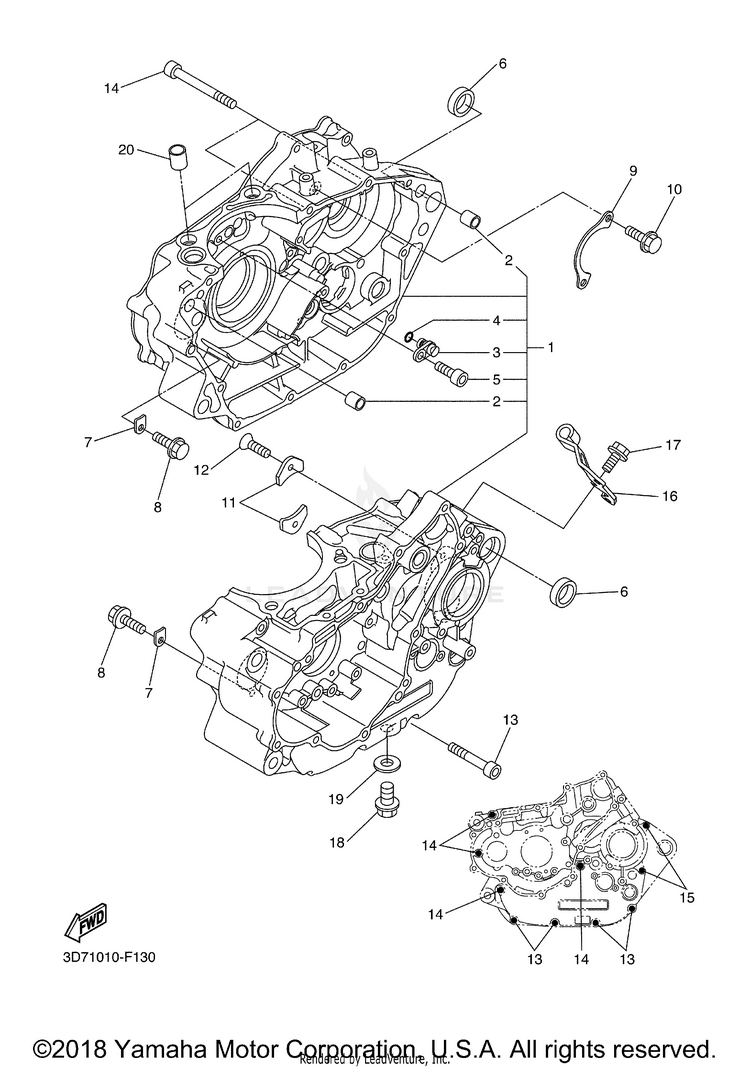

2011 Yamaha WR250X Crankcase OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	3D7-15100-01-00	CRANKCASE ASSY	$1,130.99	$987.02	Usually ships in 7-10 business days
2	93612-16254-00	PIN, DOWEL	$6.49	$5.06	10+ In-Stock
3	3D7-15155-00-00	NOZZLE 3	$36.99	$30.33	1 In-Stock
4	93210-06632-00 (replaces part # 93210-06422-00)	O-RING	$9.49	$7.40	10+ In-Stock
5	91317-06012-00 (replaces part # 90110-06182-00)	BOLT, HEXAGON SOCKET HEAD	$9.49	$7.40	10+ In-Stock
6	90387-19004-00	COLLAR	$11.49	$9.42	Usually ships in 7-10 business days
7	5DH-18562-00-00	PLATE, STOPPER 2	$8.49	$6.62	7 In-Stock
8	95022-06012-00 (replaces part # 90105-06081-00)	BOLT, FLANGE	$3.55	$3.05	10+ In-Stock
9	3D7-15388-00-00	PLATE, BEARING COVER	$5.99	$5.39	Usually ships in 7-10 business days
10	95022-06012-00 (replaces part # 90105-06081-00)	BOLT, FLANGE	$3.55	$3.05	10+ In-Stock
11	4JT-15381-01-00	PLATE, BEARING COVER	$14.49	$11.30	10+ In-Stock
12	90151-06052-00 (replaces part # 90151-06053-00)	SCREW	$9.49	$7.40	10+ In-Stock
13	91312-06045-00	BOLT	$4.40	$3.78	10+ In-Stock
14	91317-06065-00 (replaces part # 91312-06065-00)	BOLT	$4.05	$3.48	10+ In-Stock
15	91314-06090-00 (replaces part # 91312-06090-00)	BOLT, HEXAGON SOCKET HEAD	$9.49	$7.40	5 In-Stock
16	3D7-15441-00-00	HOLDER, CLUTCH CABLE	$17.99	$14.75	Usually ships in 7-10 business days
17	95022-06014-00	BOLT, FLANGE	$3.40	$2.92	8 In-Stock
18	90340-12006-00	PLUG, STRAIGHT SCREW	$4.55	$4.20	10+ In-Stock
19	90430-12213-00	GASKET	$6.49	$5.06	10+ In-Stock
20	99530-14016-00	PIN, DOWEL A	$3.80	$3.27	10+ In-Stock
