2011 Yamaha WR250X Front Master Cylinder OEM Parts Diagram

Submodel WR250X - WR25XACW - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

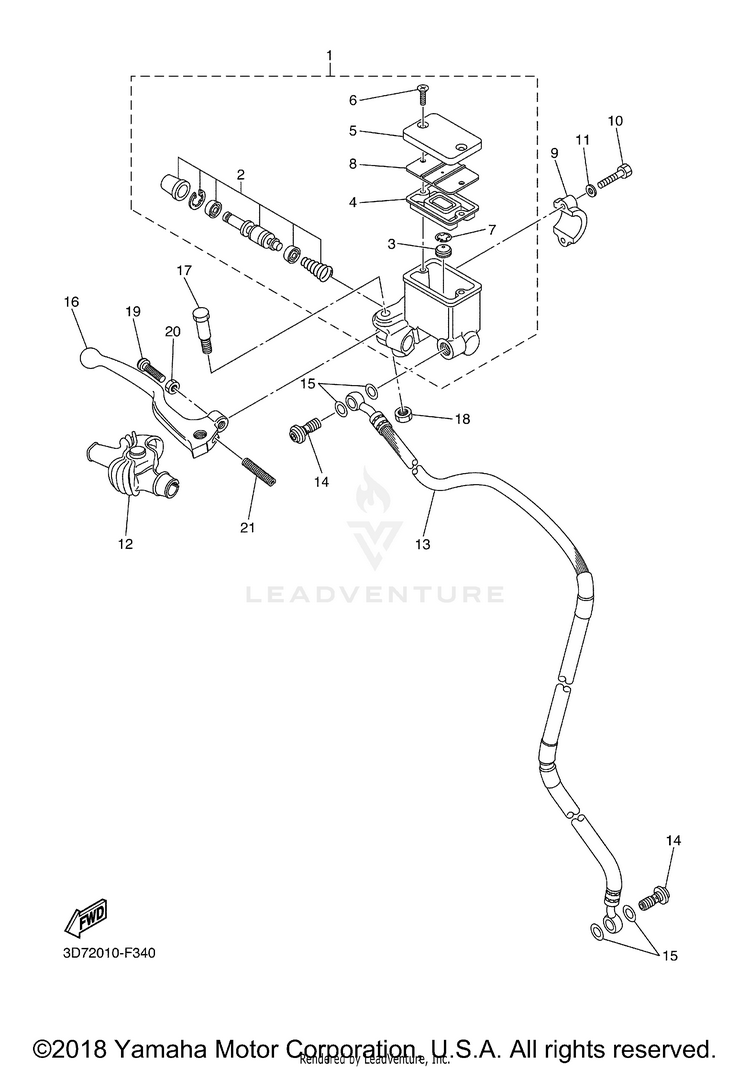

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D7-W2587-10-00MASTER CYLINDER SUB ASSY$217.99$170.03Usually ships in 7-10 business days
25VK-25807-00-00

(replaces part #
59X-W0041-00-00)

CYL KIT,MASTER$76.99$60.05Usually ships in 7-10 business days
35CG-25715-00-00SEPARATOR ASSY$14.49$11.305 In-Stock
455U-25854-00-00DIAPHRAGM, RESERVOIR$30.99$25.412 In-Stock
53GM-25852-22-00CAP, RESERVOIR$69.99$54.59Usually ships in 7-10 business days
698707-04012-00SCREW, FLAT HEAD-$1.9410+ In-Stock
75CG-2585G-00-00CIRCLIP$5.99$4.676 In-Stock
83GM-2585B-20-00PLATE, DIAPHRAGM$21.99$18.03Usually ships in 7-10 business days
956A-25867-00-00BRACKET, MASTER CYLINDER$31.99$24.953 In-Stock
1097017-06025-00

(replaces part #
97007-06025-00)

BOLT$4.55$3.9110+ In-Stock
1192907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
121T5-26372-00-00COVER, HANDLE LEVER 1$22.99$17.934 In-Stock
133D7-25872-10-00HOSE, BRAKE 1$89.99$70.19Usually ships in 7-10 business days
1490401-10172-00BOLT, UNION$6.49$5.0610+ In-Stock
1590430-10005-00GASKET$9.49$7.4010+ In-Stock
1655Y-83922-02-00

(replaces part #
55Y-83922-01-00)

LEVER 2$41.99$32.756 In-Stock
1790109-06577-00BOLT$6.49$5.0610+ In-Stock
1895617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1990149-06131-00SCREW$9.49$7.4010+ In-Stock
2090170-06021-00NUT$3.70$3.33Usually ships in 7-10 business days
2190501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
