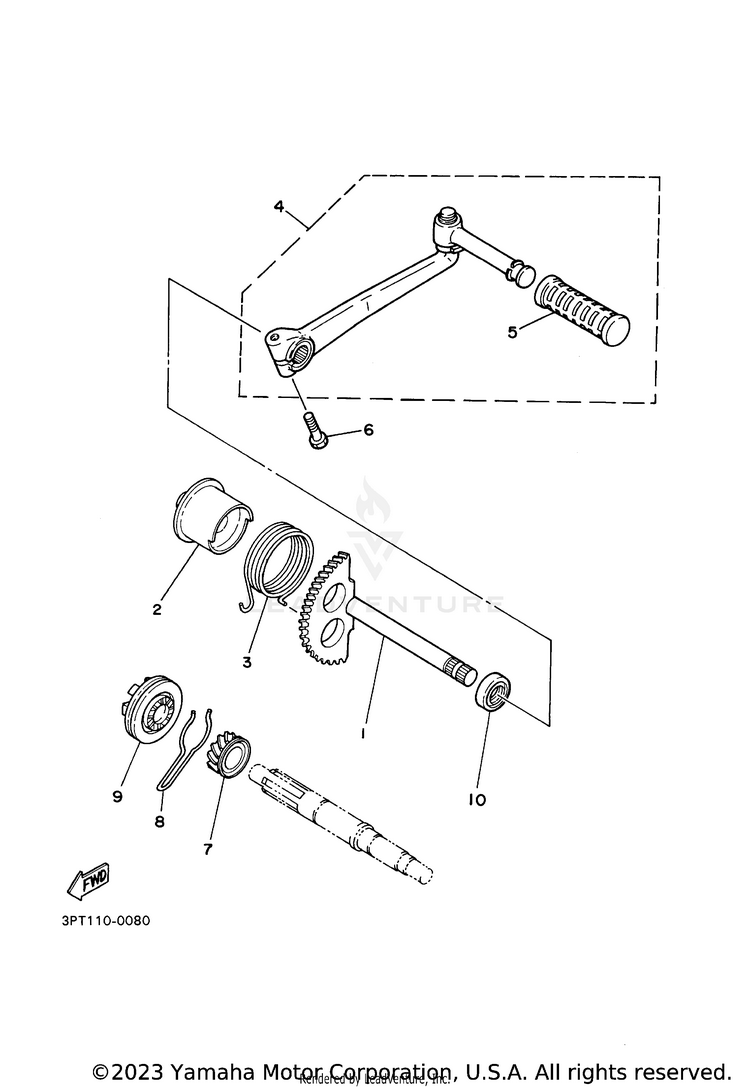

2012 Yamaha PW50 YZinger Starter OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	3L5-15601-01-00 (replaces part # 3L5-15601-00-00)	KICK SHAFT ASSY	$46.99	$36.65	8 In-Stock
2	3L5-15664-00-00	GUIDE, SPRING	$22.99	$17.93	7 In-Stock
3	90508-28399-00	SPRING, TORSION	$13.49	$10.52	4 In-Stock
4	17J-15620-01-00	KICK CRANK ASSY	$134.99	$105.29	2 In-Stock
5	156-15618-01-00 (replaces part # 2T4-15618-00-00)	COVER, KICK LEVER	$8.49	$6.62	10+ In-Stock
6	97017-06025-00	BOLT	$4.55	$3.91	10+ In-Stock
7	3L5-15631-00-00	GEAR, KICK PINION (13T)	$86.99	$67.85	4 In-Stock
8	3L5-15673-00-00	CLIP	$8.49	$6.62	6 In-Stock
9	3L5-13178-00-00	GEAR, PUMP DRIVE	$140.99	$109.97	Usually ships in 7-10 business days
10	93109-15001-00	OIL SEAL, SDO-TYPE	$9.49	$7.40	8 In-Stock
