2012 Yamaha Raider SCL XV1900SCL Cylinder Head OEM Parts Diagram

Submodel RAIDER SCL - XV19CBCO - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER HEAD

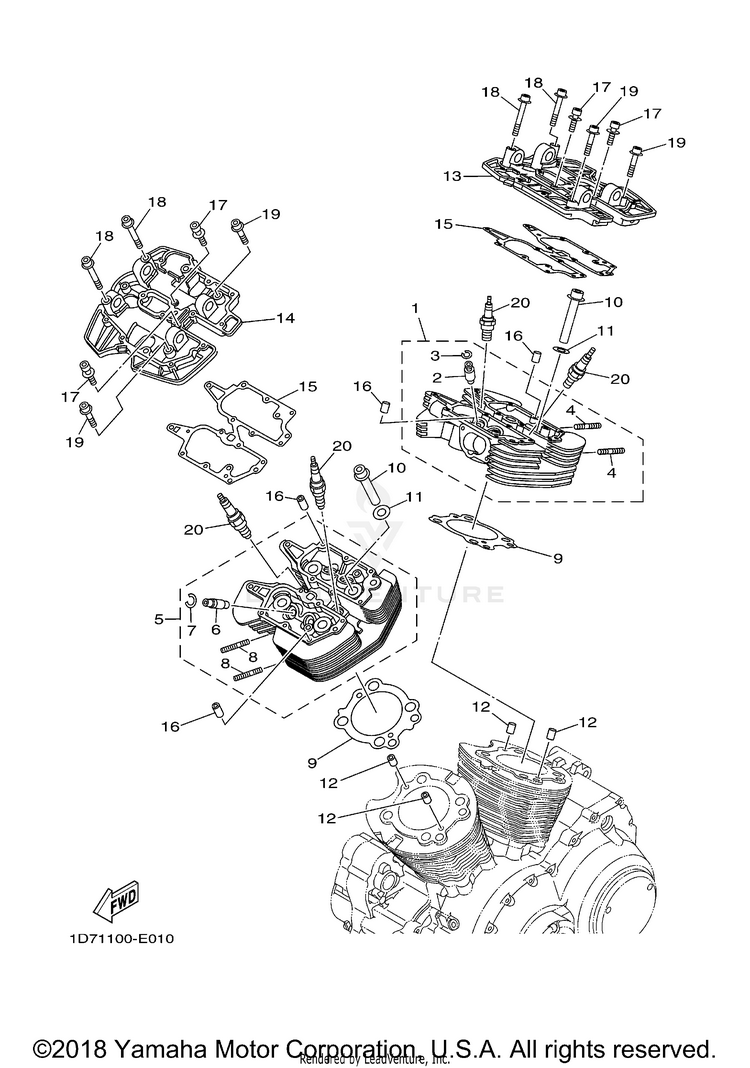

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11D7-11101-00-00CYLINDER HEAD ASSY$1,102.99$964.85Usually ships in 7-10 business days
24WM-11133-10-00GUIDE, VALVE 1$99.99$81.98Usually ships in 7-10 business days
393440-12052-00CIRCLIP$2.60$2.248 In-Stock
495617-08625-00BOLT, STUD$3.60$3.1010+ In-Stock
51D7-11101-10-00CYLINDER HEAD ASSY$1,053.99$919.28Usually ships in 7-10 business days
64WM-11133-10-00GUIDE, VALVE 1$99.99$81.98Usually ships in 7-10 business days
793440-12052-00CIRCLIP$2.60$2.248 In-Stock
895617-08625-00BOLT, STUD$3.60$3.1010+ In-Stock
91D7-11181-00-00GASKET, CYLINDER HEAD 1$49.99$40.99Usually ships in 7-10 business days
101D7-11171-00-00NUT, HOLDING$32.99$27.05Usually ships in 7-10 business days
1190201-18017-00WASHER, PLATE$14.49$11.88Usually ships in 7-10 business days
1290387-062T5-00COLLAR$10.49$8.60Usually ships in 7-10 business days
131D7-11131-00-00HEAD, CYLINDER 3$346.99$287.90Usually ships in 7-10 business days
141D7-11141-00-00HEAD, CYLINDER 4$346.99$287.90Usually ships in 7-10 business days
151D7-11182-10-00

(replaces part #
1D7-11182-00-00)

GASKET, CYLINDER HEAD 2$42.99$35.25Usually ships in 7-10 business days
1691808-16023-00PIN, DOWEL$7.99$6.2310+ In-Stock
1790110-06155-00BOLT, HEXAGON SOCKET HEAD$8.49$7.64Usually ships in 7-10 business days
1890110-08075-00BOLT, HEXAGON SOCKET HEAD$3.75$3.38Usually ships in 7-10 business days
1990110-08074-00BOLT, HEXAGON SOCKET HEAD$4.40$3.96Usually ships in 7-10 business days
20DPR-8EA90-00-00

(replaces part #
94701-00242-00)

DPR8EA-9 NGK 10PK | UR$4.40$4.1810+ In-Stock
