2012 Yamaha Raider SCL XV1900SCL Fender OEM Parts Diagram

Submodel RAIDER SCL - XV19CBCO - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

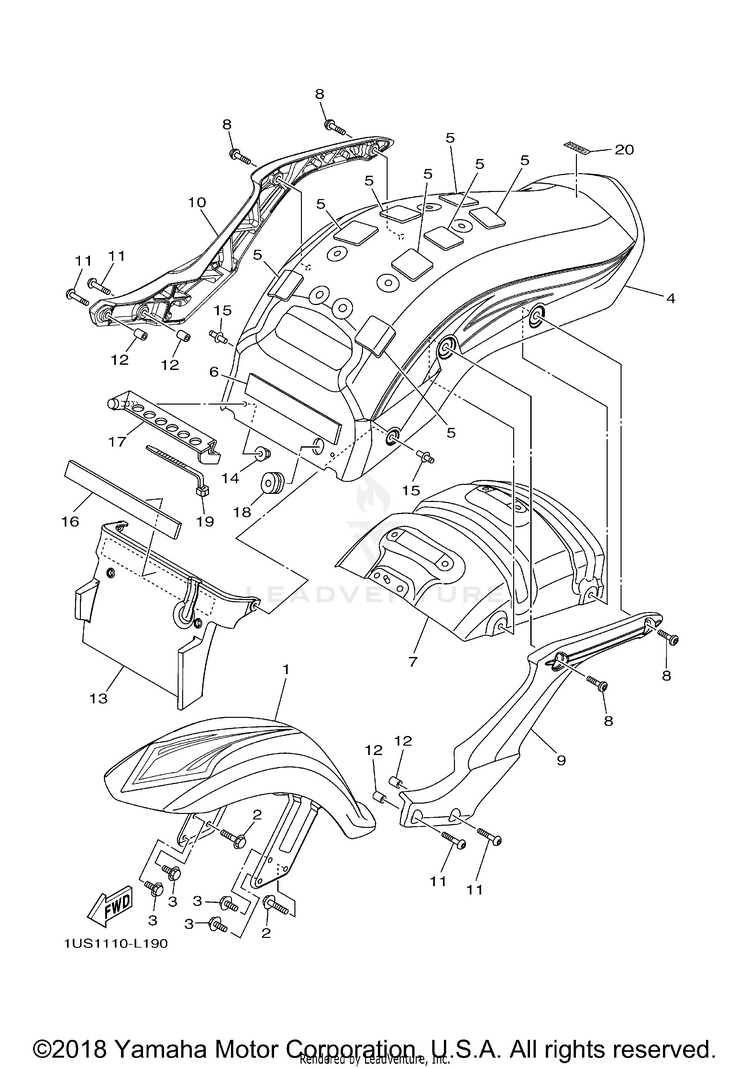

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15C7-Y2151-21-P8FRONT FENDER ASSY | FOR DOM8$718.99$560.81Usually ships in 7-10 business days
290119-08111-00BOLT, WITH WASHER$8.49$7.64Usually ships in 7-10 business days
390119-08110-00BOLT, WITH WASHER$8.49$7.64Usually ships in 7-10 business days
45C7-YKK26-E0-0XREAR FENDER COMP. | FOR DOM8$831.99$692.18Usually ships in 7-10 business days
55PX-21669-01-00SEAL$12.99$10.65Usually ships in 7-10 business days
65C7-21649-00-00DAMPER$8.49$7.64Usually ships in 7-10 business days
75C7-21643-00-00STAY, REAR$290.99$242.09Usually ships in 7-10 business days
890110-08071-00BOLT, HEXAGON SOCKET HEAD$10.49$8.183 In-Stock
95C7-21613-01-00STAY, FENDER 1$658.99$551.86Usually ships in 7-10 business days
105C7-21614-01-00STAY, FENDER 2$652.99$509.33Usually ships in 7-10 business days
1192014-10050-00BOLT, BUTTON HEAD$9.49$7.408 In-Stock
1299530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
135C7-21629-00-00GUARD, MUD$45.99$37.71Usually ships in 7-10 business days
1495604-06200-00

(replaces part #
95602-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
1590269-07077-00RIVET$9.49$7.4010+ In-Stock
165C7-21639-00-00DAMPER 2$2.30$2.07Usually ships in 7-10 business days
175C7-21688-00-00BRACKET, REAR STAY$39.99$32.79Usually ships in 7-10 business days
1890480-01015-00GROMMET$8.49$7.64Usually ships in 7-10 business days
1990464-13077-00CLAMP$9.49$7.4010+ In-Stock
203WF-2153E-71-00

(replaces part #
1D6-2153E-00-00)

EMBLEM, YAMAHA$5.49$4.94Usually ships in 7-10 business days
