CRANKCASE

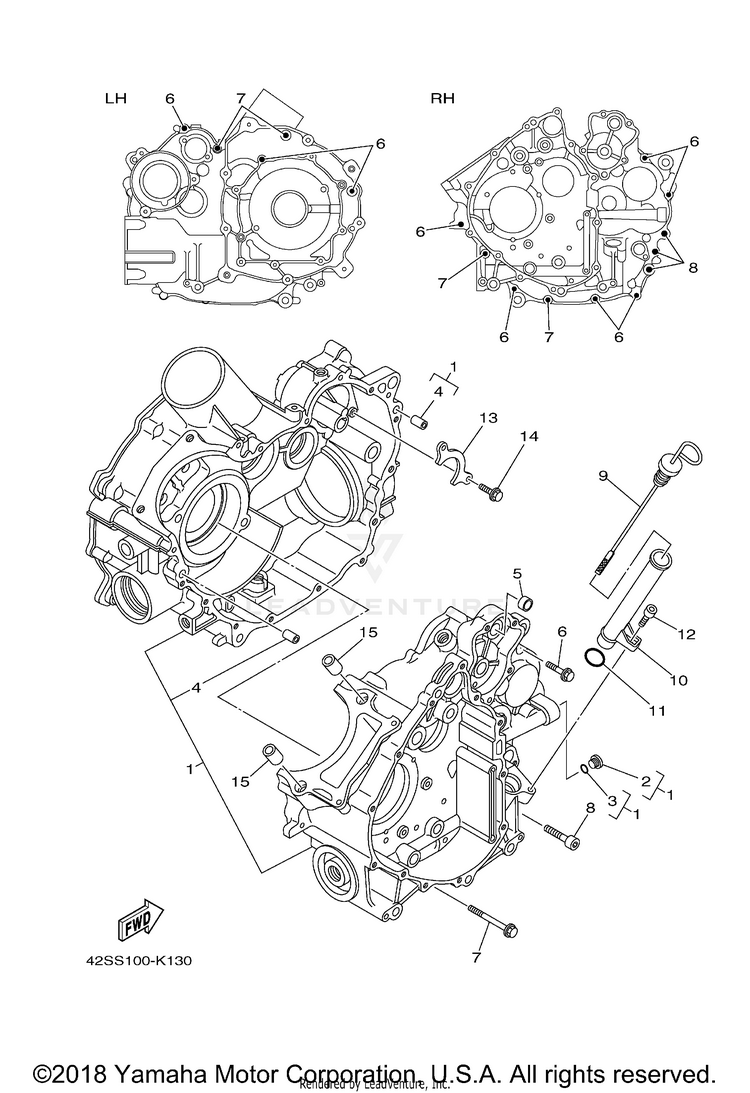

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13B4-15100-27-00

(replaces part #
3B4-15100-25-00)

CRANKCASE ASSY$1,699.99$1,325.991 In-Stock
236Y-15189-01-00

(replaces part #
36Y-15189-00-00)

PLUG-$16.695 In-Stock
393210-16325-00O-RING$8.49$6.6210+ In-Stock
499530-10116-00PIN, DOWEL$4.40$3.7810+ In-Stock
53B4-18581-00-00SPACER, CAM SHAFT$43.99$36.07Usually ships in 7-10 business days
695022-06030-00BOLT, FLANGE$1.80$1.5510+ In-Stock
795022-06060-00BOLT, FLANGE$9.49$7.403 In-Stock
891314-08040-00

(replaces part #
91312-08040-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
95B4-15362-00-00PLUG, OIL LEVEL$38.99$31.97Usually ships in 7-10 business days
105B4-15112-00-00PIPE, OIL$61.99$48.35Usually ships in 7-10 business days
1193210-21631-00O-RING$8.49$6.622 In-Stock
1291317-06012-00

(replaces part #
91312-06012-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
133B4-15388-00-00PLATE, BEARING COVER$4.25$3.82Usually ships in 7-10 business days
1495022-06020-00

(replaces part #
90105-06082-00)

BOLT, FLANGE$3.90$3.3510+ In-Stock
1599530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
