ELECTRICAL 2

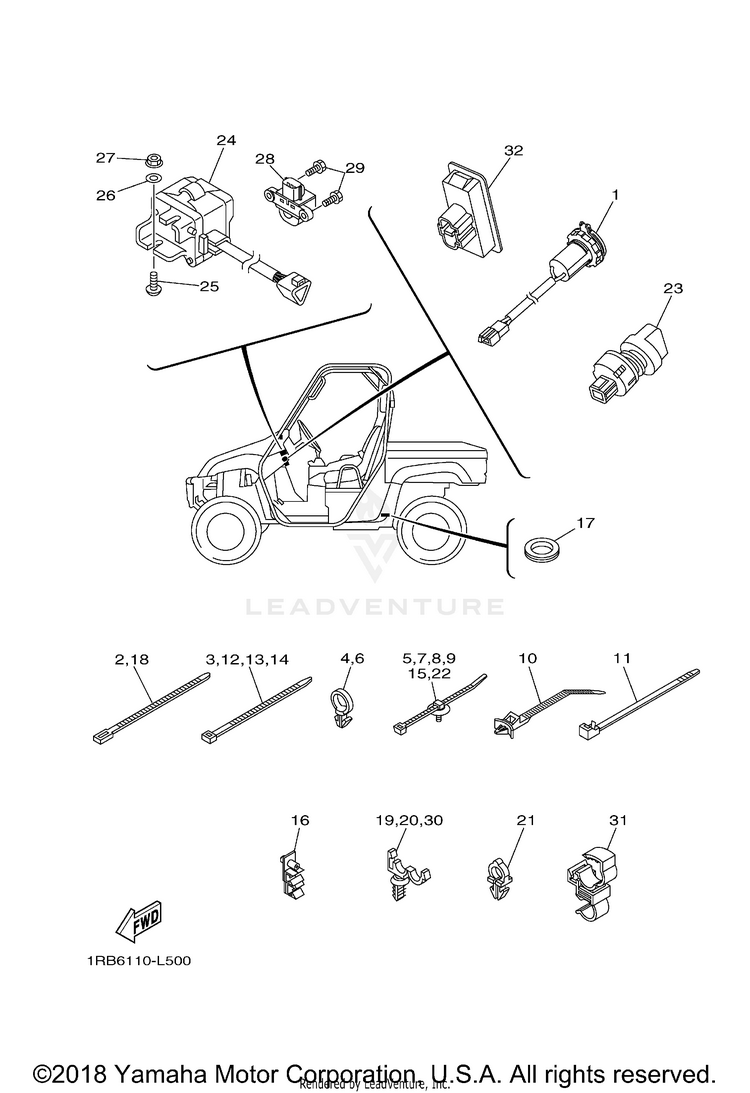

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11HP-H254B-10-00TERMINAL COMP.$20.99$16.373 In-Stock
290464-40825-00CLAMP$3.05$2.74Usually ships in 7-10 business days
390464-48800-00CLAMP$4.90$4.41Not Shipping
490464-19815-00CLAMP$1.80$1.62Usually ships in 7-10 business days
55B4-F1338-00-00CLAMP$3.60$3.1010+ In-Stock
690464-19815-00CLAMP$1.80$1.62Usually ships in 7-10 business days
75B4-F1338-00-00CLAMP$3.60$3.1010+ In-Stock
85B4-F1338-00-00CLAMP$3.60$3.1010+ In-Stock
95B4-F1338-00-00CLAMP$3.60$3.1010+ In-Stock
1090464-38800-00CLAMP$6.49$5.848 In-Stock
1190464-51800-00CLAMP | 213X7.60$16.49$13.52Usually ships in 7-10 business days
1290464-48800-00CLAMP$4.90$4.41Not Shipping
1390464-48800-00CLAMP$4.90$4.41Not Shipping
1490464-48800-00CLAMP$4.90$4.41Not Shipping
155B4-F1338-00-00CLAMP$3.60$3.1010+ In-Stock
165UG-F481H-00-00CLAMP$3.40$3.06Usually ships in 7-10 business days
1790480-25856-00GROMMET$2.20$1.98Usually ships in 7-10 business days
1890464-40825-00CLAMP$3.05$2.74Usually ships in 7-10 business days
1990464-12830-00CLAMP | d: 12mm$1.60$1.3810+ In-Stock
2090464-12830-00CLAMP | d: 12mm$1.60$1.3810+ In-Stock
2190464-12830-00

(replaces part #
90464-10833-00)

CLAMP$1.60$1.3810+ In-Stock
225B4-F1338-00-00CLAMP$3.60$3.1010+ In-Stock
235UG-H2526-00-00SWITCH, LAMP$58.99$46.012 In-Stock
241RB-83976-03-00

(replaces part #
1RB-83976-00-00)

SWITCH, HANDLE 1$73.99$57.71Usually ships in 7-10 business days
2590149-05299-00SCREW$4.45$3.8310+ In-Stock
2690201-05039-00WASHER, PLATE$9.49$7.405 In-Stock
2795707-05300-00

(replaces part #
95702-05300-00)

NUT, FLANGE$4.55$3.9110+ In-Stock
283B4-82576-00-00SENSOR, LEAN ANGLE$111.99$87.354 In-Stock
29JW1-F3394-00-00BOLT, SPECIAL$1.05$0.94Usually ships in 7-10 business days
3090464-12830-00CLAMP | d: 12mm$1.60$1.3810+ In-Stock
3190464-12012-00CLAMP$3.45$3.10Usually ships in 7-10 business days
325B4-H3530-00-00PILOT LIGHT ASSY$31.99$26.23Usually ships in 7-10 business days
