2012 Yamaha Road Star S XV1700AWS Steering OEM Parts Diagram

Submodel ROAD STAR S - XV17ASBCB - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

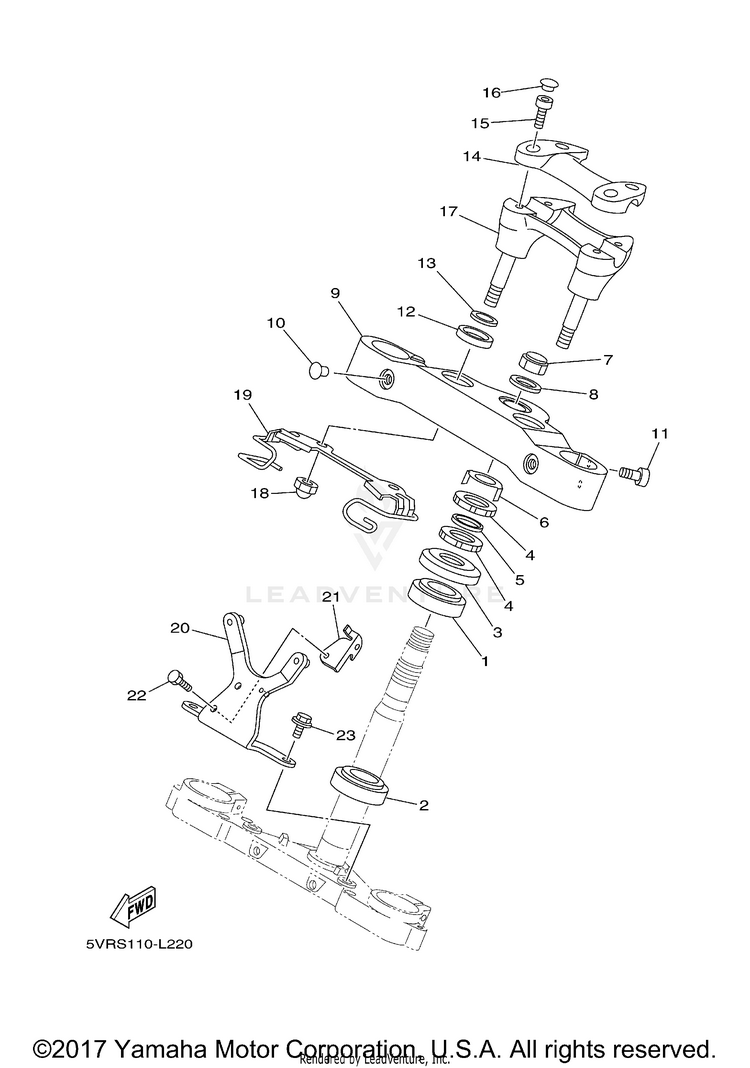

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00001-00BEARING$63.99$49.913 In-Stock
293332-00008-00BEARING$73.99$57.714 In-Stock
31W1-23416-00-00COVER, BALL RACE 2$32.99$25.736 In-Stock
490179-25004-00NUT$26.99$21.055 In-Stock
590202-26142-00WASHER, PLATE$10.49$8.187 In-Stock
626H-23418-01-00WASHER, SPECIAL$15.49$12.702 In-Stock
790176-22002-00NUT, CROWN$37.99$31.15Usually ships in 7-10 business days
890201-22018-00

(replaces part #
90201-220T0-00)

WASHER, PLATE$6.49$5.068 In-Stock
94WM-W2341-10-00CROWN, HANDLE$310.99$258.04Usually ships in 7-10 business days
104WM-23497-00-00GROMMET$17.49$14.34Usually ships in 7-10 business days
1191314-06030-00BOLT, HEXAGON SOCKET HEAD$9.49$8.547 In-Stock
123DM-23445-00-00DAMPER$8.49$6.621 In-Stock
1390201-14220-00WASHER, PLATE$9.49$7.4010+ In-Stock
145VR-23441-00-00HOLDER, HANDLE UPPER$323.99$269.15Usually ships in 7-10 business days
1591314-08025-00BOLT, HEXAGON SOCKET HEAD$9.49$8.542 In-Stock
1690338-08163-00PLUG (CROME)$3.75$3.2210+ In-Stock
175VR-23442-01-00HOLDER, HANDLE LOWER$317.99$264.40Usually ships in 7-10 business days
1890176-12052-00NUT, CROWN$13.49$11.06Usually ships in 7-10 business days
194WM-23389-00-00GUIDE, CABLE$60.99$47.57Usually ships in 7-10 business days
205VN-23174-00-00STAY, HEADLIGHT$38.99$31.97Usually ships in 7-10 business days
215VN-23175-00-00BRACKET, HEADLIGHT STAY 1$32.99$27.05Usually ships in 7-10 business days
2297017-05012-00

(replaces part #
97007-05012-00)

BOLT, HEXAGON$9.49$7.407 In-Stock
2395817-06016-00

(replaces part #
90105-06010-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
