2012 Yamaha Stratoliner Deluxe XV1900 Saddlebags OEM Parts Diagram

Submodel STRATOLINER DELUXE - XV19CTFBCS - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SADDLEBAGS

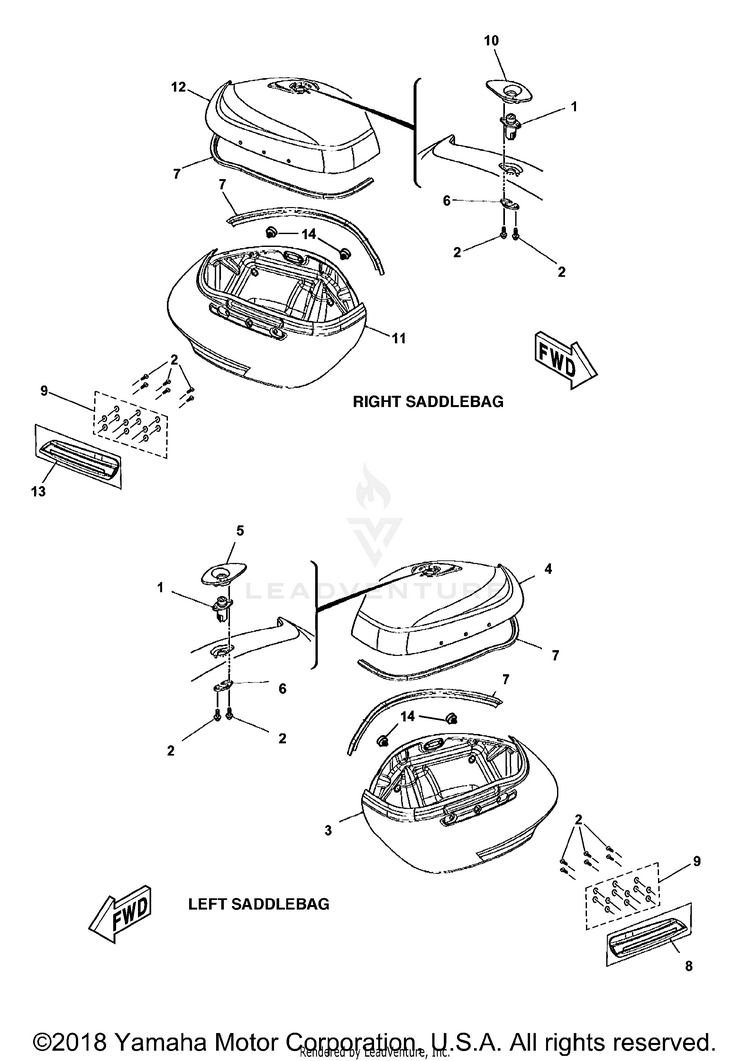

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12C5-28408-01-00LOCK ASSY 1$220.99$172.37Usually ships in 7-10 business days
292014-05010-00BOLT, BUTTON HEAD$9.49$8.54Usually ships in 7-10 business days
32C5-F8430-N0-00SADDLEBAG COMP 1 | LEFT SIDE BASE ASSY$606.95$493.29Usually ships in 7-10 business days
42C5-F844B-N0-00LID, 1 | LH$237.95$197.84Usually ships in 7-10 business days
52C5-F8493-00-00COVER LOCK ASSY 2$27.95$24.29Not Shipping
62C5-F848T-00-00PLATE, LOCK 1$4.95$4.46Not Shipping
72C5-F2480-V0-00SEAL ASSY | 2 SETS$202.99$168.95Usually ships in 7-10 business days
82C5-F8444-00-00HINGE, 1 | LH$127.95$99.80Usually ships in 7-10 business days
92C5-F5120-V0-00WASHER | SET OF 12$16.95$13.90Usually ships in 7-10 business days
102C5-F849K-00-00COVER LOCK ASSY 2$27.95$24.29Usually ships in 7-10 business days
112C5-F8440-N0-00SADDLEBAG COMP 2 | RIGHT SIDE BASE ASSY$606.95$493.29Usually ships in 7-10 business days
122C5-F844C-N0-00LID 2 | RH$237.95$197.84Usually ships in 7-10 business days
132C5-F845E-00-00HINGE, 2 | RH$127.95$99.80Usually ships in 7-10 business days
142C5-F8421-V0-00BUMPER, REAR 1$7.99$7.19Usually ships in 7-10 business days
