TAILLIGHT

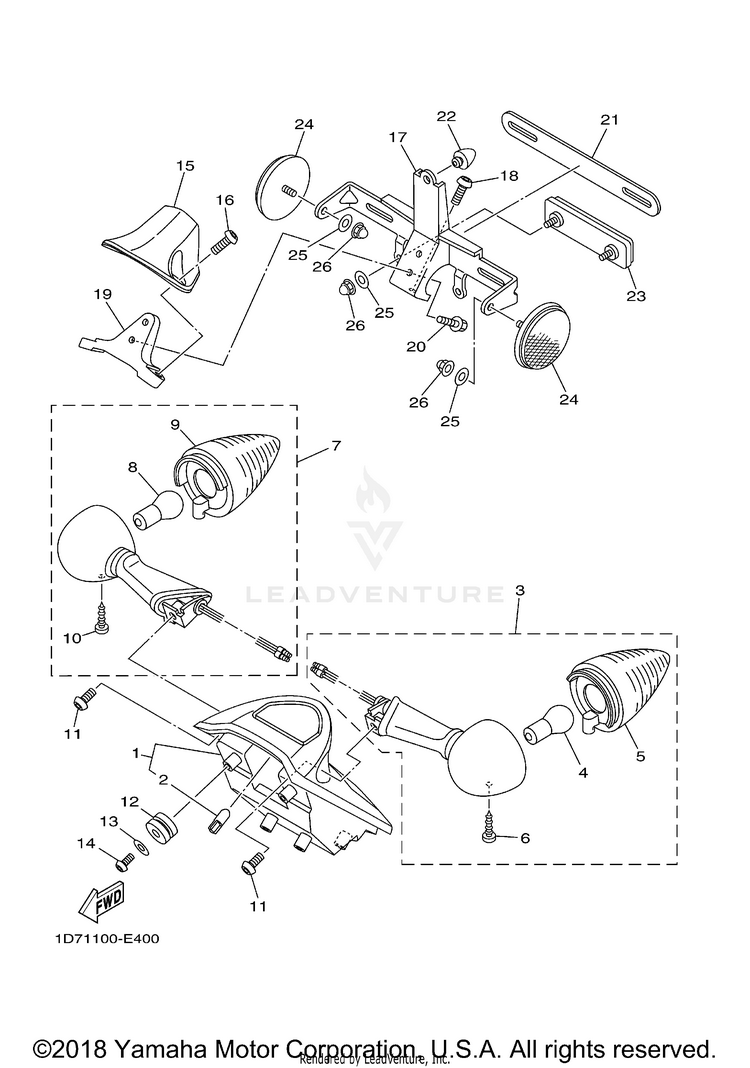

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11D7-84710-01-00TAILLIGHT UNIT ASSY$421.99$329.15Usually ships in 7-10 business days
24SV-84347-00-00

(replaces part #
4HC-84744-00-00)

BULB (12V-5W)$9.49$8.544 In-Stock
31D7-83330-01-00REAR FLASHER LIGHT ASSY 1$274.99$214.49Usually ships in 7-10 business days
45VN-83331-00-00BULB, FLASHER (12V-21W)$15.49$12.70Usually ships in 7-10 business days
51D7-83332-01-00LENS, FLASHER$51.99$40.55Usually ships in 7-10 business days
697780-40010-00SCREW, TAPPING$0.80$0.726 In-Stock
71D7-83340-01-00REAR FLASHER LIGHT ASSY 2$280.99$219.17Usually ships in 7-10 business days
85VN-83331-00-00BULB, FLASHER (12V-21W)$15.49$12.70Usually ships in 7-10 business days
91D7-83342-01-00LENS, FLASHER 2$51.99$40.55Usually ships in 7-10 business days
1097780-40010-00SCREW, TAPPING$0.80$0.726 In-Stock
111D7-84752-00-00BOLT, FITTING$9.49$8.54Usually ships in 7-10 business days
125PX-84553-00-00DAMPER$3.95$3.56Usually ships in 7-10 business days
1390201-061A5-00

(replaces part #
90201-05036-00)

WASHER, PLATE$8.49$6.6210+ In-Stock
1492012-05012-00BOLT, BUTTON HEAD$4.75$4.085 In-Stock
151D7-84558-00-00STAY, LICENSE BRACKET$170.99$135.18Usually ships in 7-10 business days
1692014-08020-00BOLT, BUTTON HEAD$9.49$8.542 In-Stock
171D7-84551-00-00BRACKET, LICENSE$59.99$46.79Usually ships in 7-10 business days
1892014-08020-00BOLT, BUTTON HEAD$9.49$8.542 In-Stock
191D7-8454L-00-00BRACKET$143.99$112.31Usually ships in 7-10 business days
2095027-06012-00BOLT, FLANGE$4.20$3.6110+ In-Stock
211D7-8454E-00-00BRACKET, NUMBER PLATE$8.49$7.64Usually ships in 7-10 business days
2242U-21639-00-00DAMPER 2$30.99$25.41Usually ships in 7-10 business days
231FK-85130-00-00REAR REFLECTOR ASSY$21.99$18.03Not Shipping
24449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
2590201-05020-00WASHER, PLATE$2.85$2.56Usually ships in 7-10 business days
2690176-05003-00NUT, CROWN$3.90$3.51Usually ships in 7-10 business days
