2012 Yamaha TTR 50E Fender OEM Parts Diagram

Submodel TTR50E - TTR50EB - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

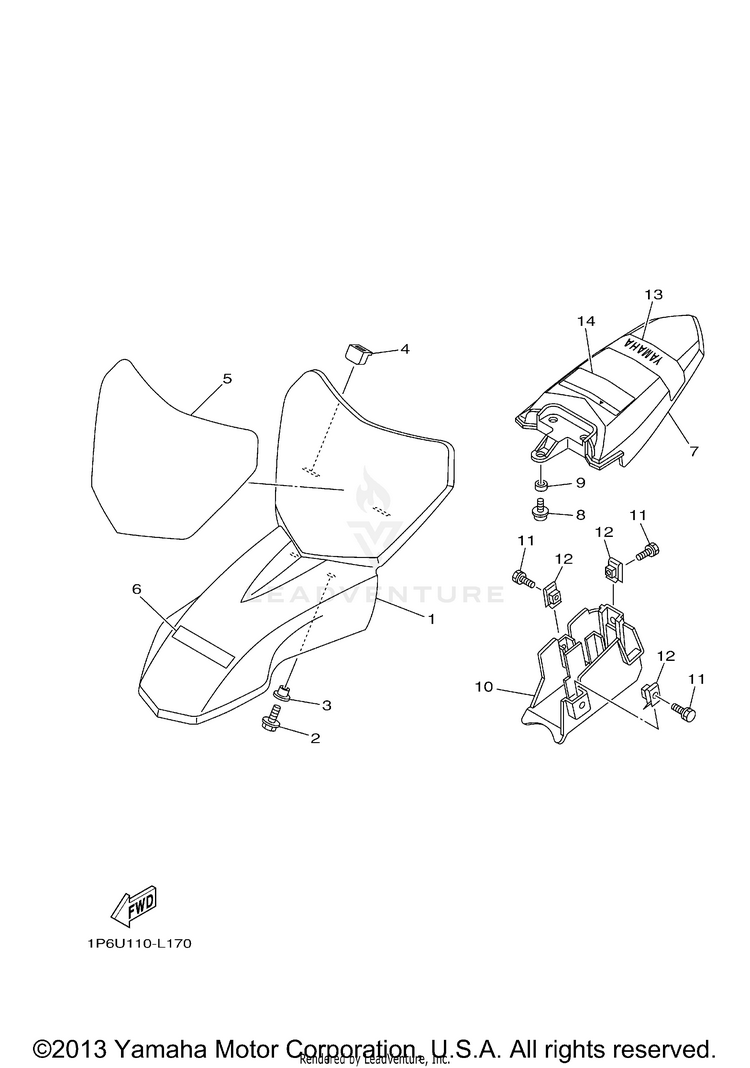

FENDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11P6-F1511-00-00FENDER, FRONT$63.99$53.9110+ In-Stock
295817-06012-00

(replaces part #
95802-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
390387-07818-00COLLAR$9.49$7.404 In-Stock
490480-16185-00GROMMET$9.49$7.407 In-Stock
51P6-F1569-10-00

(replaces part #
1P6-F1569-00-00)

GRAPHIC 1$33.99$26.512 In-Stock
61P6-F151A-40-00LABEL 1$7.49$5.84
71P6-F1611-00-00FENDER, REAR$53.99$42.114 In-Stock
890159-06182-00

(replaces part #
90159-06830-00)

SCREW, WITH WASHER$10.49$8.187 In-Stock
990387-07808-00COLLAR$8.49$6.625 In-Stock
101P6-F160E-01-00

(replaces part #
1P6-F160E-00-00)

BOX$24.99$20.49Usually ships in 7-10 business days
1197502-06514-00BOLT, WITH WASHER$3.55$3.058 In-Stock
1290183-06023-00NUT, SPRING$10.49$8.1810+ In-Stock
131P6-F163G-30-00

(replaces part #
1P6-F163G-00-00)

EMBLEM 1$16.49$12.863 In-Stock
143PT-2118K-A2-00

(replaces part #
3PT-2118K-A1-00)

LABEL, CAUTION$5.99$4.676 In-Stock
