2012 Yamaha TTR 50E Handle Switch Lever OEM Parts Diagram

Submodel TTR50E - TTR50EB - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

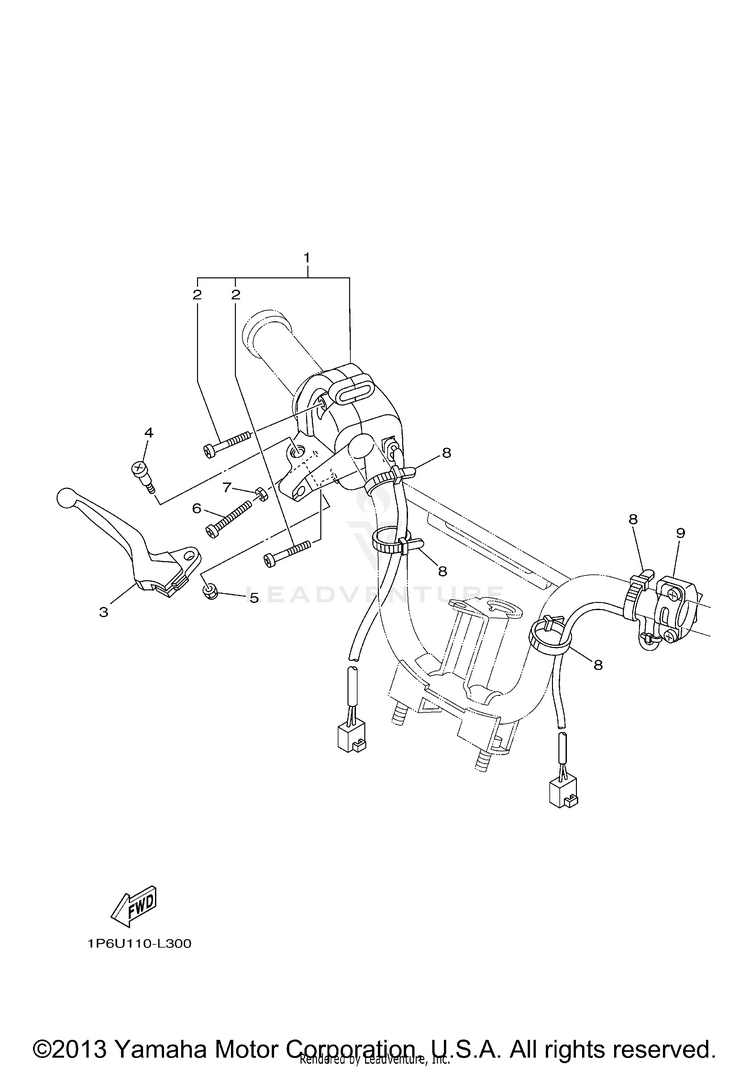

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11P6-H259E-20-00SWITCH ASSY$168.99$131.815 In-Stock
298507-05035-00

(replaces part #
98502-05035-00)

SCREW, PAN HEAD$9.49$7.407 In-Stock
31P6-H3922-00-00LEVER 2$28.99$22.611 In-Stock
490157-05801-00SCREW, PAN HEAD$5.49$4.282 In-Stock
595617-05100-00

(replaces part #
95602-05100-00)

NUT, U$10.49$8.1810+ In-Stock
690157-05803-00SCREW, PAN HEAD$4.70$4.041 In-Stock
795317-05700-00

(replaces part #
95302-05700-00)

NUT$9.49$7.402 In-Stock
8437-83936-01-00

(replaces part #
4TU-H3936-00-00)

BAND, SWITCH CORD$8.49$6.6210+ In-Stock
91P6-H3976-11-00SWITCH, HANDLE 1$66.99$52.257 In-Stock
