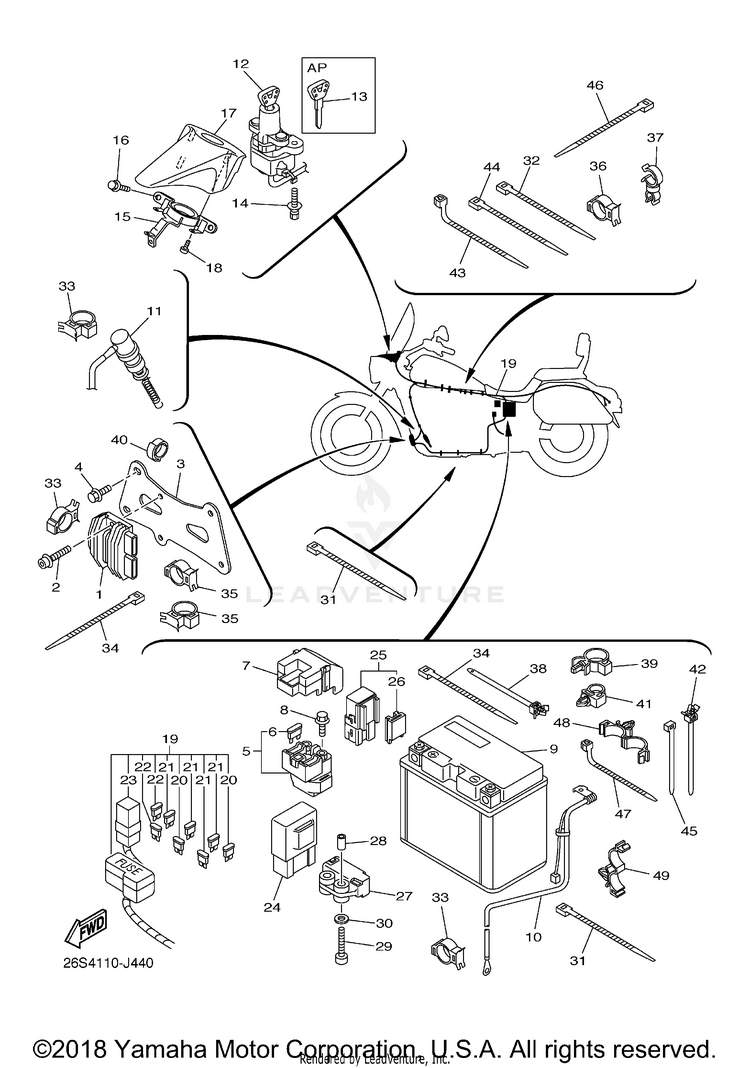

2012 Yamaha V-Star Tourer XVS950 Electrical 2 OEM Parts Diagram

Submodel V STAR 950 TOURER - XVS95CTBCB - 2012

Shop Aftermarket Parts

ELECTRICAL 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
127D-81960-00-00RECTIFIER & REGULATOR ASSY$342.99$267.53Usually ships in 7-10 business days
290110-06263-00BOLT, HEXAGON SOCKET HEAD$6.49$5.84Usually ships in 7-10 business days
35S7-2128A-00-00BRACKET, REGULATOR$38.99$31.97Usually ships in 7-10 business days
490105-08021-00BOLT, FLANGE$9.49$8.54Usually ships in 7-10 business days
55S7-81940-00-00STARTER RELAY ASSY (RC19-089A)$124.99$97.49Usually ships in 7-10 business days
642X-82151-00-00FUSE (10A-BL)$4.70$4.0410+ In-Stock
75SL-82119-10-00COVER, LEAD WIRE$5.49$4.2810+ In-Stock
895022-06008-00BOLT, FLANGE$9.49$7.4010+ In-Stock
9YTZ-14S00-00-00

(replaces part #
2D1-82100-00-00)

YTZ14S YUASA BATTER$271.99$229.40Usually ships in 7-10 business days
105S7-82116-00-00WIRE, MINUS LEAD$33.99$27.87Usually ships in 7-10 business days
115S7-82530-00-00STOP SWITCH ASSY$38.99$31.97Usually ships in 7-10 business days
123D8-82501-02-00

(replaces part #
3D8-82501-01-00)

MAIN SWITCH STEERING LOCK$177.99$138.83Usually ships in 7-10 business days
134BH-82511-09-00BLANK KEY | AP$33.99$26.517 In-Stock
1490109-08196-00

(replaces part #
90109-08195-00)

BOLT$9.49$7.4010+ In-Stock
155S7-2334G-00-00BRACKET 1$79.99$62.39Usually ships in 7-10 business days
1690105-06090-00

(replaces part #
90105-06063-00)

BOLT, FLANGE$9.49$7.406 In-Stock
175S7-82568-00-00COVER, MAIN SWITCH$117.99$92.03Usually ships in 7-10 business days
1897707-40016-00

(replaces part #
97702-40016-00)

SCREW, TAPPING$9.49$7.4010+ In-Stock
195S7-82590-20-00WIRE HARNESS ASSY$668.99$560.25Usually ships in 7-10 business days
2067F-82151-50-00

(replaces part #
5JJ-82151-10-00)

FUSE (15A)$4.15$3.74Usually ships in 7-10 business days
2167F-82151-40-00

(replaces part #
5JJ-82151-30-00)

FUSE (10A)$7.49$6.743 In-Stock
225JJ-82151-20-00FUSE (20A-BL)$8.49$7.64Usually ships in 7-10 business days
23JR9-82151-00-00

(replaces part #
5PS-82151-00-00)

SLOW BLOW FUSE$13.49$10.525 In-Stock
245VK-81950-33-00

(replaces part #
5VK-81950-30-00)

RELAY ASSY$61.99$48.3510+ In-Stock
255EA-81950-20-00RELAY ASSY (5EA-02)$62.99$49.1310+ In-Stock
265EA-81952-00-00HOLDER, RELAY$8.49$6.625 In-Stock
275VU-82576-03-00

(replaces part #
5VU-82576-01-00)

SENSOR, LEAN ANGLE$105.99$82.672 In-Stock
2890445-05N13-00

(replaces part #
90445-057G5-00)

HOSE (L200)$9.49$7.4010+ In-Stock
2991312-04025-00

(replaces part #
90110-04003-00)

BOLT, HEXAGON SOCKET HEAD$1.95$1.682 In-Stock
3090201-04027-00WASHER, PLATE$2.45$2.117 In-Stock
311UA-82591-00-00BAND$5.49$4.2810+ In-Stock
321UA-82591-00-00

(replaces part #
90464-32060-00)

BAND$5.49$4.2810+ In-Stock
3390464-10190-00CLAMP$10.49$8.60Usually ships in 7-10 business days
343MA-82591-00-00CLAMP$10.99$9.01Usually ships in 7-10 business days
3590464-20191-00CLAMP$11.49$9.42Usually ships in 7-10 business days
3690464-25217-00CLAMP$4.45$4.00Usually ships in 7-10 business days
3790464-20004-00CLAMP$4.15$3.74Usually ships in 7-10 business days
3890464-10112-00

(replaces part #
90464-12036-00)

CLAMP$9.49$7.404 In-Stock
3990464-16012-00CLAMP$8.49$6.626 In-Stock
4090464-16003-00CLAMP$7.99$7.19Usually ships in 7-10 business days
4190464-10008-00CLAMP$3.80$3.42Usually ships in 7-10 business days
4290464-10112-00

(replaces part #
90464-12089-00)

CLAMP$9.49$7.404 In-Stock
4390464-15195-00CLAMP$4.41$3.7910+ In-Stock
4490460-15126-00CLAMP, HOSE$8.49$7.645 In-Stock
4590465-10098-00CLAMP$2.80$2.417 In-Stock
4690465-13M39-00CLAMP$5.99$5.39Usually ships in 7-10 business days
4790464-15195-00

(replaces part #
90464-13073-00)

CLAMP$4.41$3.7910+ In-Stock
4890464-18007-00CLAMP$3.55$3.20Usually ships in 7-10 business days
4990464-16012-00CLAMP$8.49$6.626 In-Stock
