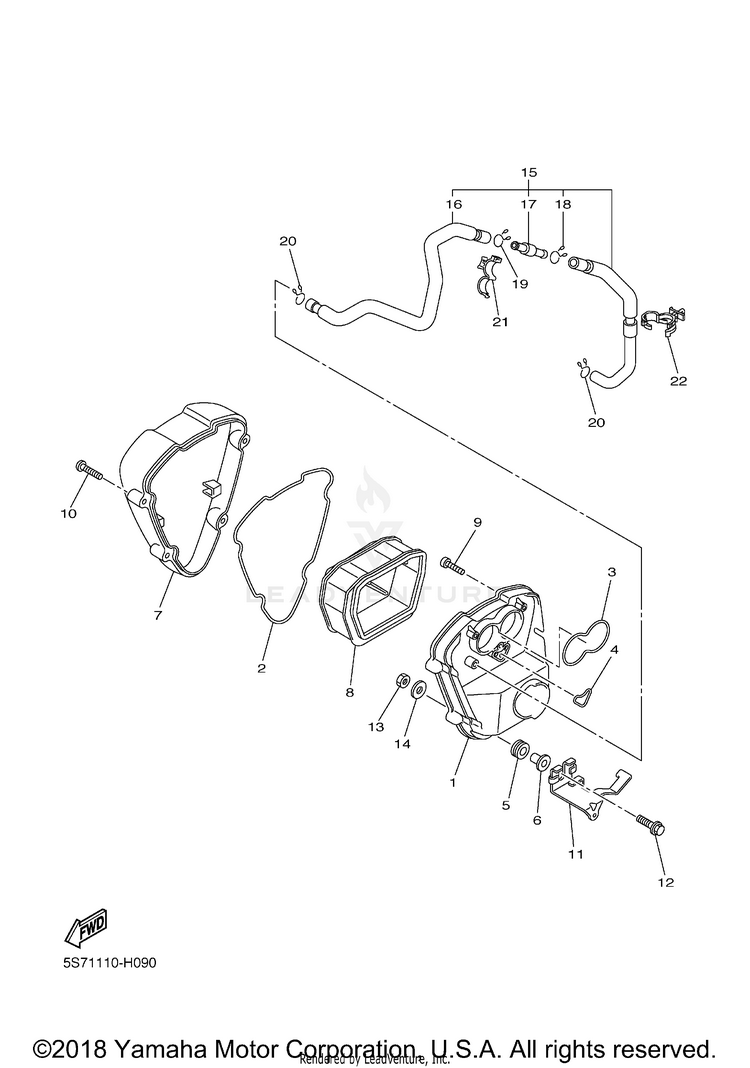

2012 Yamaha V-Star Tourer XVS950 Intake 2 OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5S7-14411-00-00	CASE, AIR CLEANER 1	$92.99	$72.53	Usually ships in 7-10 business days
2	51Y-14462-00-00 (replaces part # 4GA-14452-00-00)	SEAL	$19.99	$15.59	8 In-Stock
3	3D8-14457-00-00	SEAL	$7.49	$6.74	Usually ships in 7-10 business days
4	3D8-14462-00-00	SEAL	$7.49	$6.74	Usually ships in 7-10 business days
5	90480-11006-00	GROMMET	$4.50	$4.05	Usually ships in 7-10 business days
6	90387-087L0-00	COLLAR	$9.49	$7.40	10+ In-Stock
7	3D8-14421-01-00	CASE, AIR CLEANER 2	$212.99	$166.13	Usually ships in 7-10 business days
8	3D8-14451-01-00 (replaces part # 3D8-14451-00-00)	ELEMENT, AIR CLEANER	$36.99	$28.85	4 In-Stock
9	91312-05025-00	BOLT, HEXAGON SOCKET HEAD	$9.49	$7.40	6 In-Stock
10	90111-05024-00	BOLT, HEX. SOCKET BUTTON	$4.50	$4.05	4 In-Stock
11	3D8-14498-10-00	STAY 1	$28.99	$23.77	Usually ships in 7-10 business days
12	97017-06020-00 (replaces part # 97012-06020-00)	BOLT	$4.06	$3.49	10+ In-Stock
13	95702-06500-00	NUT, WITH WASHER	$2.60	$2.24	10+ In-Stock
14	90201-06088-00	WASHER, PLATE	$9.49	$7.40	7 In-Stock
15	5S7-11166-00-00	PIPE, BREATHER 1	$159.99	$126.58	Usually ships in 7-10 business days
16	5S7-1113J-00-00	PIPE 3	$47.99	$39.35	Usually ships in 7-10 business days
17	6S5-12594-00-00	JOINT, HOSE 4	$4.99	$4.49	Usually ships in 7-10 business days
18	90467-170A2-00	CLIP	$2.30	$2.07	Usually ships in 7-10 business days
19	90467-170A2-00	CLIP	$2.30	$2.07	Usually ships in 7-10 business days
20	90467-15M14-00 (replaces part # 90467-16195-00)	CLIP	$3.55	$3.05	3 In-Stock
21	90464-20191-00	CLAMP	$11.49	$9.42	Usually ships in 7-10 business days
22	90464-18011-00	CLAMP	$3.75	$3.38	Usually ships in 7-10 business days
