2012 Yamaha WR250R Front Wheel OEM Parts Diagram

Submodel WR25RB - WR25RBCL - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

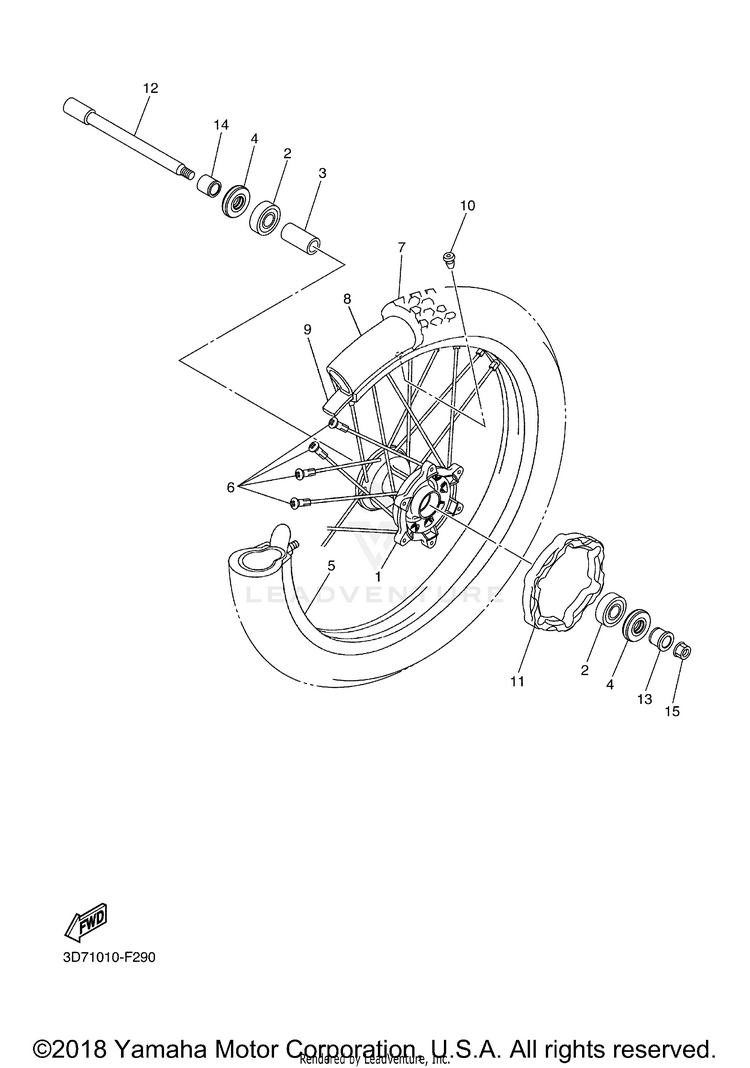

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D7-25111-00-00HUB, FRONT$190.99$148.97Usually ships in 7-10 business days
293306-20348-00BEARING$44.99$35.098 In-Stock
AFTERMARKET ALTERNATIVE
$14.99$12.9910+ In-Stock
33D7-25117-00-00SPACER, BEARING$32.99$27.05Usually ships in 7-10 business days
493106-23002-00OIL SEAL$6.49$5.067 In-Stock
594416-21035-00RIM (1.60-21)$335.99$279.16Usually ships in 7-10 business days
63D7-25104-00-00SPOKE SET, FRONT$91.99$71.753 In-Stock
794108-21019-00TIRE (80/100-21 M/C 51P) | BRIDGESTONE$135.99$106.07Usually ships in 7-10 business days
894209-21229-00TUBE (80/100-21 M/C TR4) | BRIDGESTONE$40.99$33.61Not Shipping
994330-21084-00BAND, RIM (1.60-21) | BRIDGESTONE$18.49$14.4210+ In-Stock
1090480-10068-00

(replaces part #
90480-08608-00)

GROMMET$9.49$7.4010+ In-Stock
113D7-2514A-00-00RING, WHEEL 1$28.99$23.77Usually ships in 7-10 business days
123D7-25181-00-00AXLE, WHEEL$69.99$54.591 In-Stock
133D7-25183-00-00COLLAR, WHEEL$36.99$30.33Usually ships in 7-10 business days
143D7-25186-00-00COLLAR, WHEEL$34.99$28.69Usually ships in 7-10 business days
1590179-16003-00NUT$17.49$13.647 In-Stock
