2012 Yamaha WR250R Headlight OEM Parts Diagram

Submodel WR25RB - WR25RBCL - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

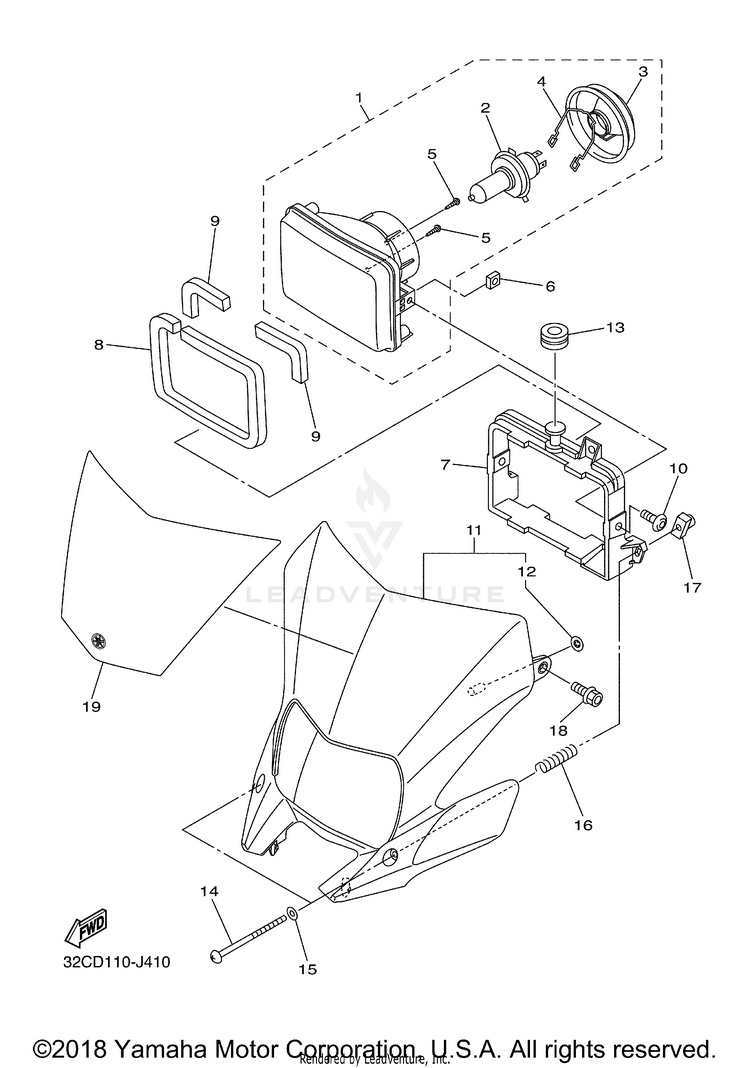

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
132C-84310-00-00HEADLIGHT UNIT ASSY$401.99$333.17Usually ships in 7-10 business days
28V0-84314-10-00

(replaces part #
32D-84314-00-00)

BULB, HEADLIGHT (12V-60/55W)$75.99$60.93Usually ships in 7-10 business days
332D-84378-00-00CAP$48.99$40.17Usually ships in 7-10 business days
432D-84335-00-00SPRING$41.99$34.43Usually ships in 7-10 business days
532D-84726-00-00SCREW$8.99$8.09Usually ships in 7-10 business days
632D-84117-00-00NUT$30.99$25.41Usually ships in 7-10 business days
732D-84118-00-00STAY, HEADLIGHT 1$77.99$60.83Usually ships in 7-10 business days
832D-84527-00-00DAMPER$8.49$7.64Usually ships in 7-10 business days
932D-84553-00-00DAMPER$7.49$5.843 In-Stock
1090110-06090-00BOLT, HEXAGON SOCKET HEAD$5.49$4.2810+ In-Stock
1132D-84330-00-00BODY ASSY$36.99$28.854 In-Stock
1290183-05068-00NUT, SPRING$11.49$8.964 In-Stock
1390480-16008-00GROMMET$6.49$5.064 In-Stock
1490157-04001-00

(replaces part #
341-84331-60-00)

SCREW, ADJUSTING$9.49$7.404 In-Stock
1592990-04600-00

(replaces part #
92902-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
16341-84332-60-00SPRING, SCREW$10.99$8.576 In-Stock
17198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
1890105-06064-00BOLT, FLANGE$3.45$2.9710+ In-Stock
1932D-8411B-00-00GRAPHIC$48.99$38.211 In-Stock
