2012 Yamaha YFZ 450 Exhaust OEM Parts Diagram

Submodel YFZ450 - YFZ45BW - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

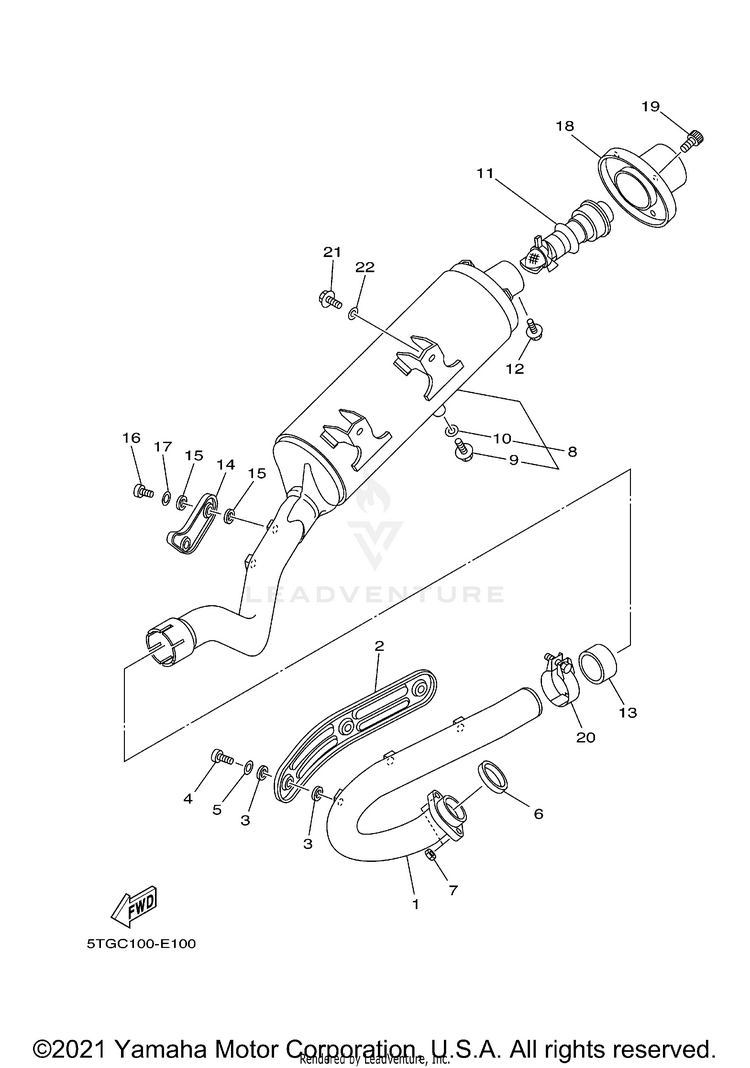

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TG-14611-20-00PIPE, EXHAUST 1$491.99$383.75Usually ships in 7-10 business days
25TG-14628-20-00PROTECTOR, EXHAUST PIPE$115.99$90.474 In-Stock
390201-05015-00WASHER, PLATE$9.49$7.409 In-Stock
498980-06010-00SCREW, BIND$10.49$8.6310+ In-Stock
592990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
63VD-14613-01-00GASKET, EXHAUST PIPE | INCL. IN TOP END GASKET KIT$12.99$10.1310+ In-Stock
795702-08500-00NUT, WITH WASHER$0.40$0.40Not Shipping
81PD-14711-00-00MUFFLER 1$288.99$238.58Usually ships in 7-10 business days
990105-10355-00BOLT, FLANGE$2.75$2.48Usually ships in 7-10 business days
1092990-10600-00WASHER, PLATE$3.10$2.6710+ In-Stock
115TG-14752-09-00

(replaces part #
5TG-14752-00-00)

PIPE, OUTLET$139.99$109.191 In-Stock
1295022-06008-00BOLT, FLANGE$9.49$7.4010+ In-Stock
138FA-14714-10-00GASKET, MUFFLER$45.99$35.874 In-Stock
145TG-14718-00-00PROTECTOR, MUFFLER 1$21.99$18.03Usually ships in 7-10 business days
1590201-05015-00WASHER, PLATE$9.49$7.409 In-Stock
1698980-06010-00

(replaces part #
98902-06010-00)

SCREW, BIND$10.49$8.6310+ In-Stock
1792990-06200-00

(replaces part #
92902-06200-00)

WASHER, PLAIN-$1.2810+ In-Stock
185TG-14787-00-00CAP, SILENCER$138.99$108.41Usually ships in 7-10 business days
1990110-06134-00BOLT, HEXAGON SOCKET HEAD$8.49$7.64Usually ships in 7-10 business days
205BE-14788-00-00BAND, SILENCER$38.99$30.4110+ In-Stock
2190105-08129-00BOLT, FLANGE$5.49$4.2810+ In-Stock
2290201-08053-00WASHER, PLATE$6.49$5.0610+ In-Stock
