2012 Yamaha YFZ 450 Front Wheel OEM Parts Diagram

Submodel YFZ450 - YFZ45BW - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

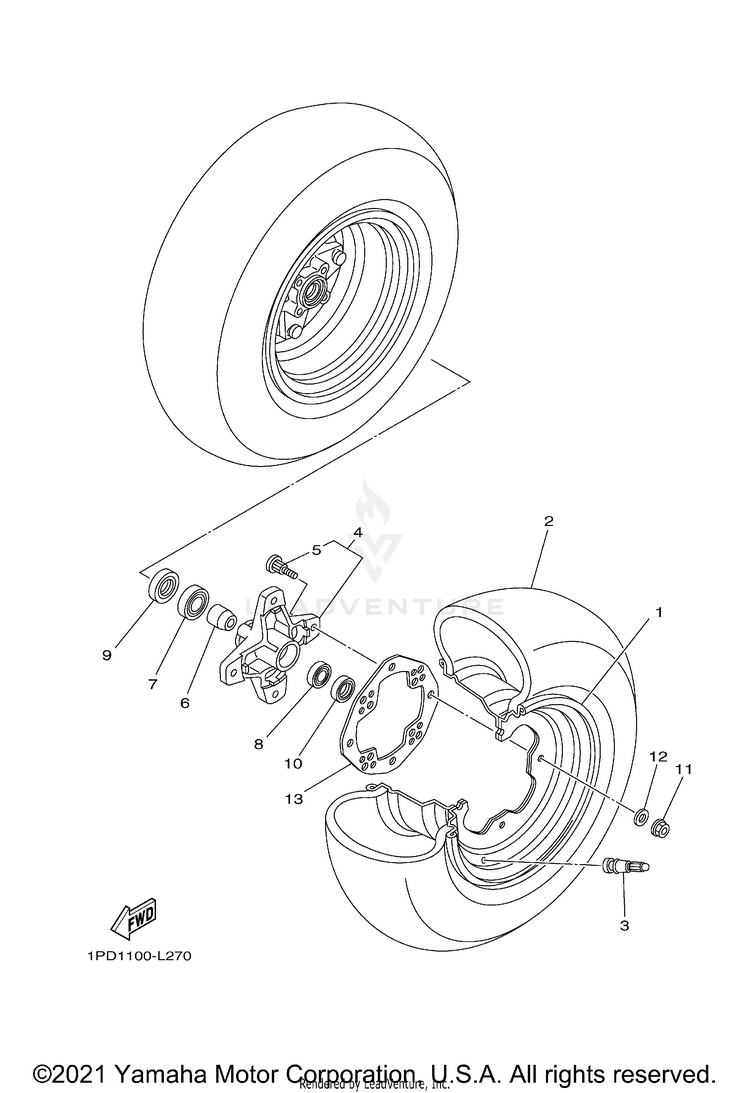

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11S3-25180-00-YX

(replaces part #
1S3-25180-00-00)

WHEEL COMP.$290.99$241.02Usually ships in 7-10 business days
294107-10020-00TIRE (AT21X7-10 KT851B T/L) | DUNLOP$120.99$101.72Usually ships in 7-10 business days
393900-00030-00VALVE, RIM (TR412) | TAIHEIYO$18.49$14.425 In-Stock
41PE-F5111-00-00

(replaces part #
1S3-25111-00-00)

HUB, FRONT$153.99$120.11Usually ships in 7-10 business days
590114-10006-00BOLT, SERRATION$6.49$5.0610+ In-Stock
65LP-25117-00-00SPACER, BEARING$18.99$14.817 In-Stock
793306-00446-00BEARING$47.99$37.4310+ In-Stock
893306-20231-00BEARING$25.99$20.2710+ In-Stock
993105-26026-00OIL SEAL$13.49$10.5210+ In-Stock
1093102-22216-00OIL SEAL$12.49$9.7410+ In-Stock
1195704-10500-00

(replaces part #
95702-10500-00)

NUT, WITH WASHER-$2.285 In-Stock
1292990-10200-00

(replaces part #
92902-10200-00)

WASHER, PLAIN$3.80$3.2710+ In-Stock
131S3-25127-01-00COVER, PLATE$8.49$6.628 In-Stock
