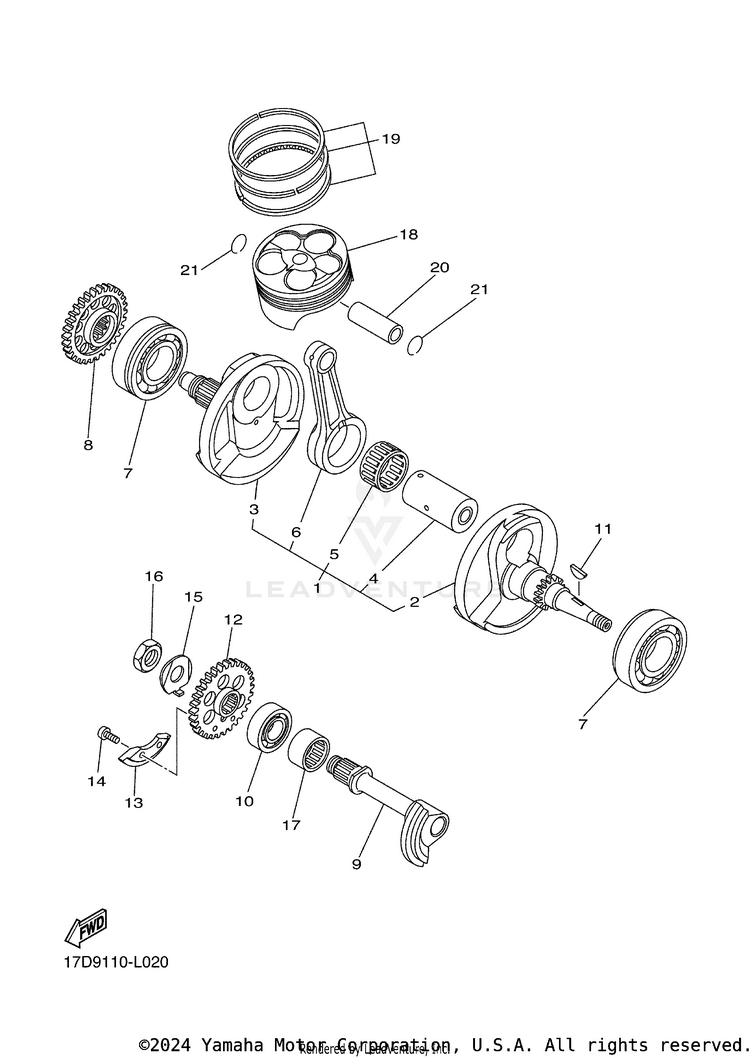

2012 Yamaha YZ250F Crankshaft Piston OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	17D-11400-90-00	CRANKSHAFT ASSY	$653.99	$528.66	Usually ships in 7-10 business days
2	17D-11412-90-00	CRANK 1	$258.99	$213.56	Usually ships in 7-10 business days
3	17D-11422-90-00	CRANK 2	$264.99	$219.89	Usually ships in 7-10 business days
4	5XC-11681-01-00	PIN, CRANK 1	$84.99	$66.29	2 In-Stock
5	93310-63290-00	BEARING	$120.99	$94.37	3 In-Stock
6	17D-11651-90-00	ROD, CONNECTING	$122.99	$95.93	Usually ships in 7-10 business days
7	93306-20648-00	BEARING	$99.99	$77.99	10+ In-Stock
8	5NL-11536-10-00	GEAR, DRIVE	$121.99	$95.15	Usually ships in 7-10 business days
9	17D-11455-10-00	SHAFT 1	$329.99	$257.39	Usually ships in 7-10 business days
10	93306-20335-00	BEARING	$38.99	$30.41	10+ In-Stock
11	90280-03006-00	KEY, WOODRUFF	$9.49	$7.40	10+ In-Stock
12	5NL-11531-00-00	GEAR, BALANCE WEIGHT	$124.99	$97.49	Usually ships in 7-10 business days
13	17D-11454-90-00	WEIGHT 1	$47.99	$39.35	Usually ships in 7-10 business days
14	90149-06084-00	SCREW	$9.49	$7.40	4 In-Stock
15	90215-14204-00	WASHER, LOCK	$10.49	$8.18	10+ In-Stock
16	90170-14171-00	NUT	$10.49	$8.18	4 In-Stock
17	93311-32261-00	BEARING	$78.99	$61.61	9 In-Stock
18	17D-11631-90-00	PISTON (STD)	$158.99	$124.01	Usually ships in 7-10 business days
19	17D-11603-00-00	PISTON RING SET (STD)	$68.99	$53.81	Usually ships in 7-10 business days
20	17D-11633-00-00	PIN, PISTON	$33.99	$26.51	2 In-Stock
21	93450-17129-00	CIRCLIP	$4.45	$3.83	10+ In-Stock
