2012 Yamaha YZ250F Cylinder OEM Parts Diagram

Submodel YZ250FB - YZ250FBL - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

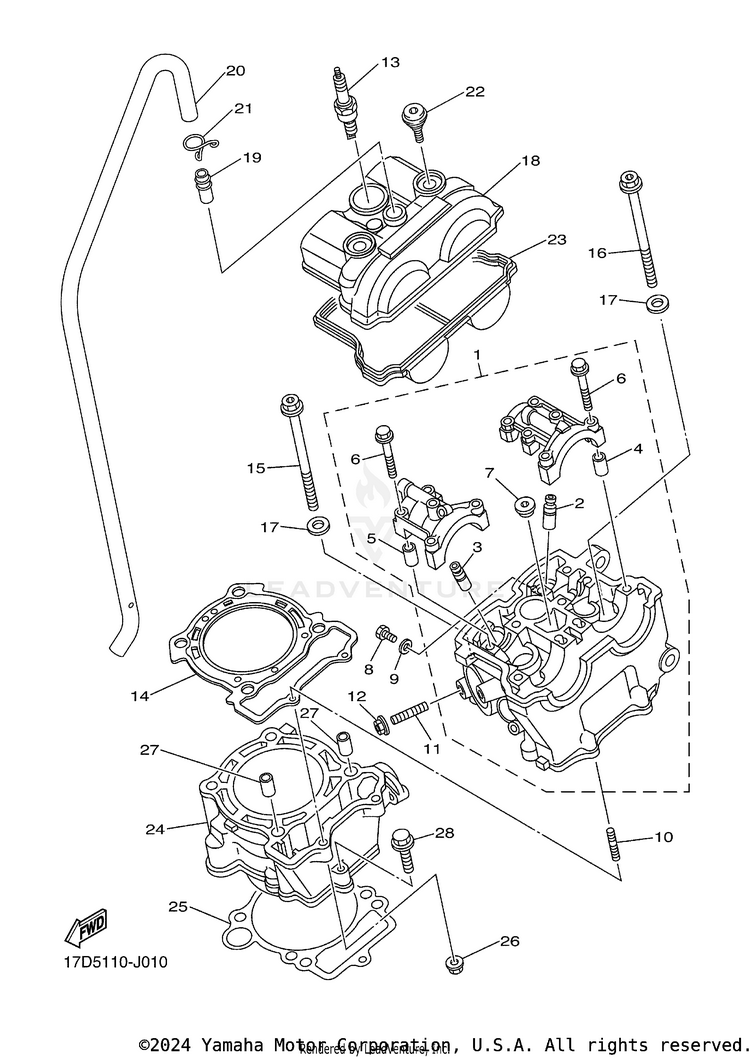

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
117D-11102-11-00CYLINDER HEAD ASSY$1,144.99$893.09Usually ships in 7-10 business days
25NL-11133-10-00

(replaces part #
5XC-11133-10-00)

GUIDE, VALVE 1$69.99$54.596 In-Stock
35NL-11134-10-00GUIDE, VALVE 2$96.99$75.656 In-Stock
491808-16023-00PIN, DOWEL$7.99$6.2310+ In-Stock
591808-16023-00PIN, DOWEL$7.99$6.2310+ In-Stock
690105-06027-00BOLT, FLANGE$8.49$6.6210+ In-Stock
790340-12007-00PLUG, STRAIGHT SCREW$9.49$7.405 In-Stock
895022-06010-00BOLT, FLANGE$6.49$5.066 In-Stock
990430-06014-00GASKET$8.99$7.0110+ In-Stock
1090116-06038-00BOLT, STUD$3.60$3.105 In-Stock
1195612-08620-00BOLT, STUD$8.49$6.629 In-Stock
1295702-08500-00NUT, WITH WASHER$0.40$0.40Not Shipping
13CR9-E0000-00-00

(replaces part #
94701-00410-00)

CR9E NGK SPLUG 4PK | AP$10.49$8.1810+ In-Stock
13CR8-E0000-00-00

(replaces part #
94701-00411-00)

PLUG, SPARK (NGK CR8E) | STD$10.49$8.1810+ In-Stock
145NL-11181-00-00GASKET, CYLINDER HEAD 1$55.99$43.679 In-Stock
1590105-09004-00BOLT, FLANGE$15.49$12.0810+ In-Stock
1690105-09002-00BOLT, FLANGE$17.49$13.6410+ In-Stock
1790201-096J9-00WASHER, PLATE$3.65$3.1410+ In-Stock
185NL-11191-50-00COVER, CYLINDER HEAD 1$212.99$166.13Usually ships in 7-10 business days
19371-11167-01-00PIPE, BREATHER 2$14.49$11.301 In-Stock
205XC-11166-00-00PIPE, BREATHER 1$26.99$21.053 In-Stock
2190467-140A4-00CLIP$10.49$8.185 In-Stock
225UM-1119E-00-00BOLT, COVER HEAD$15.49$12.0810+ In-Stock
235NL-11193-00-00GASKET, HEAD COVER 1$45.99$35.8710+ In-Stock
245XC-11311-20-00

(replaces part #
5XC-11311-10-00)

CYLINDER 1$583.99$455.516 In-Stock
255NL-11351-00-00GASKET, CYLINDER$28.99$22.6110+ In-Stock
2695702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
2793612-16254-00PIN, DOWEL$6.49$5.0610+ In-Stock
2895022-06035-00BOLT, FLANGE$3.85$3.3110+ In-Stock
