2012 Yamaha YZ85 Fender OEM Parts Diagram

Submodel YZ85 - YZ85B - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

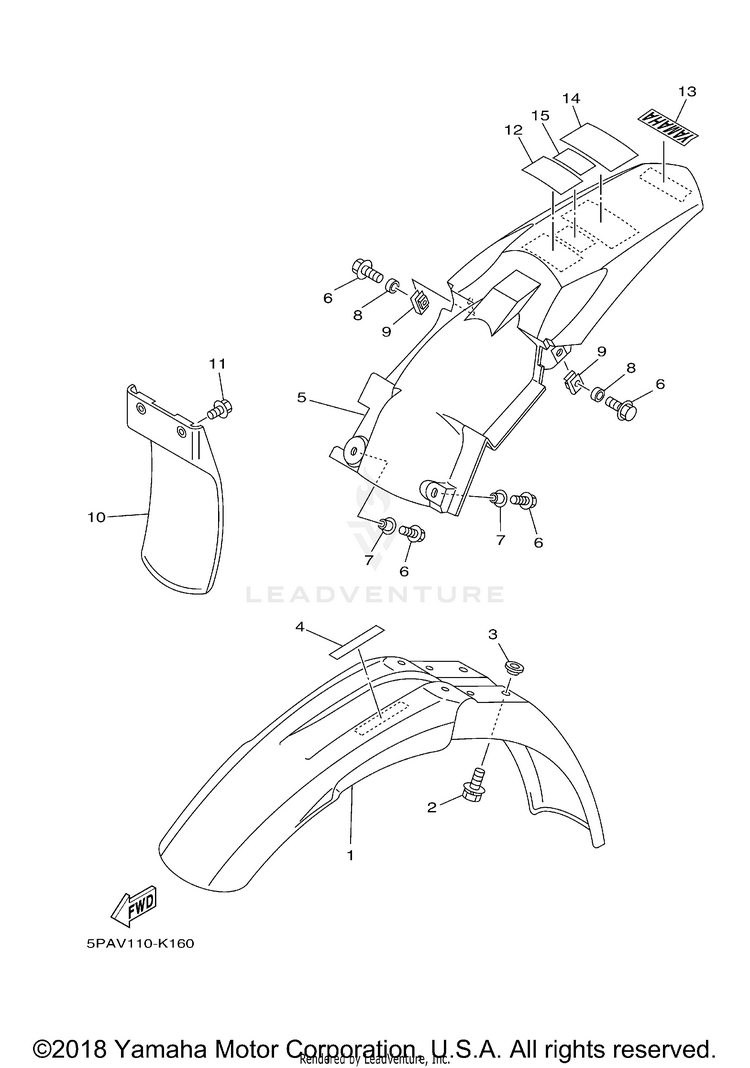

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14ES-21511-20-00FENDER, FRONT$49.99$42.75Usually ships in 7-10 business days
290119-06201-00BOLT, WITH WASHER$9.49$7.408 In-Stock
390209-06015-00WASHER$2.10$1.89Usually ships in 7-10 business days
43XJ-2415E-A1-00LABEL, CAUTION$5.49$4.285 In-Stock
55PA-21611-00-00FENDER, REAR$62.99$49.133 In-Stock
690119-06133-00BOLT, WITH WASHER$6.49$5.0610+ In-Stock
790387-064X4-00COLLAR$8.49$6.6210+ In-Stock
890387-0701A-00COLLAR$10.49$8.1810+ In-Stock
990183-060A7-00NUT, SPRING$9.49$7.4010+ In-Stock
104ES-21642-01-00

(replaces part #
4ES-21642-00-00)

GUARD, FLAP$41.99$32.757 In-Stock
1190119-06239-00BOLT, WITH WASHER$3.85$3.316 In-Stock
125PA-2118K-01-00

(replaces part #
5PA-2118K-00-00)

LABEL, CAUTION$7.49$5.849 In-Stock
134ES-2153E-02-00

(replaces part #
4ES-2153E-01-00)

EMBLEM YAMAHA$15.49$12.0810+ In-Stock
145B6-2839Y-00-00LABEL, CAUTION 2$7.49$6.74Usually ships in 7-10 business days
1517D-2812P-00-00PLATE, COMPETITION USA$8.49$6.626 In-Stock
