2012 Yamaha YZ85 Starter OEM Parts Diagram

Submodel YZ85 - YZ85B - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

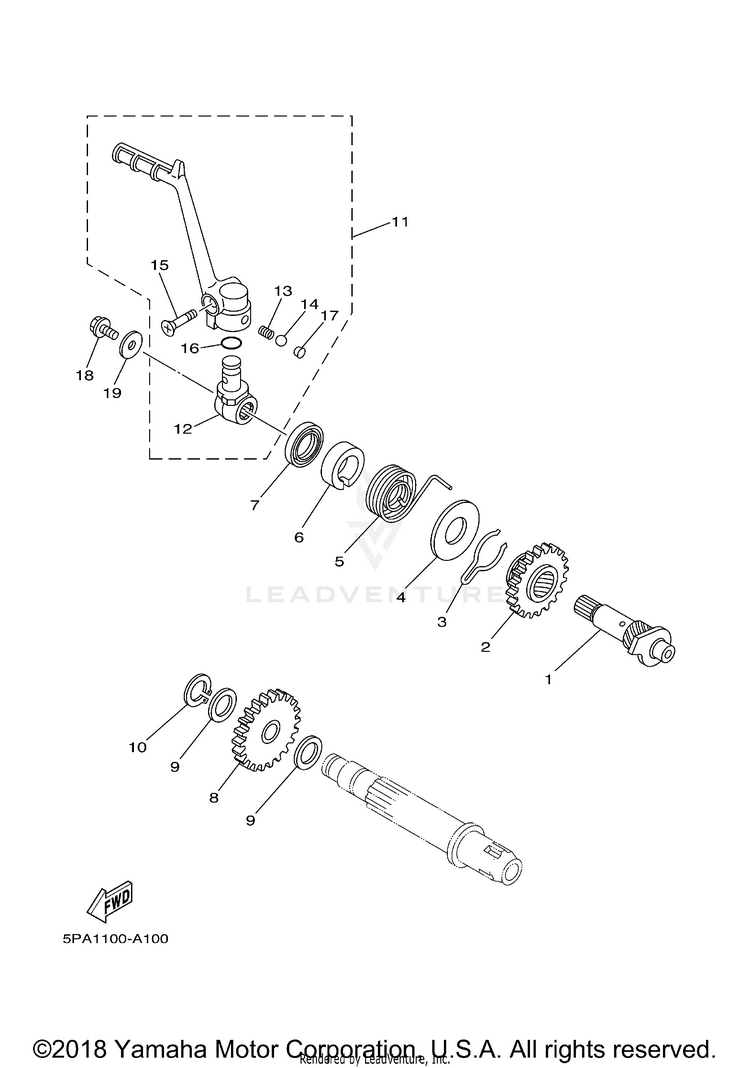

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PA-15660-00-00KICK AXLE ASSY$112.99$88.136 In-Stock
25PA-15641-00-00GEAR, KICK$84.99$66.292 In-Stock
390468-23194-00CLIP$10.49$8.186 In-Stock
490201-176L4-00WASHER, PLATE$10.49$8.182 In-Stock
590508-26750-00SPRING, TORSION$13.49$10.524 In-Stock
64ES-15664-00-00GUIDE, SPRING$33.99$26.512 In-Stock
793102-17263-00OIL SEAL$11.49$8.9610+ In-Stock
85PA-15651-00-00GEAR, KICK IDLE$79.99$62.3910+ In-Stock
990201-124F8-00WASHER, PLATE$10.49$8.1810+ In-Stock
1099009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
115PA-15620-01-00KICK CRANK ASSY$223.99$174.714 In-Stock
125PA-15621-00-00BOSS, KICK CRANK$80.99$63.17Usually ships in 7-10 business days
1390501-12081-00SPRING, BOSS STOPPER$9.49$7.4010+ In-Stock
1493507-32031-00

(replaces part #
93507-32009-00)

BALL$5.49$4.2810+ In-Stock
1590151-06045-00SCREW, COUNTERSUNK$9.49$7.4010+ In-Stock
1693210-12152-00O-RING$8.49$6.627 In-Stock
1790336-06031-00PLUG, TAPER$6.49$5.062 In-Stock
1895022-06012-00BOLT, FLANGE$3.55$3.0510+ In-Stock
1990201-06020-00

(replaces part #
90201-06060-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
