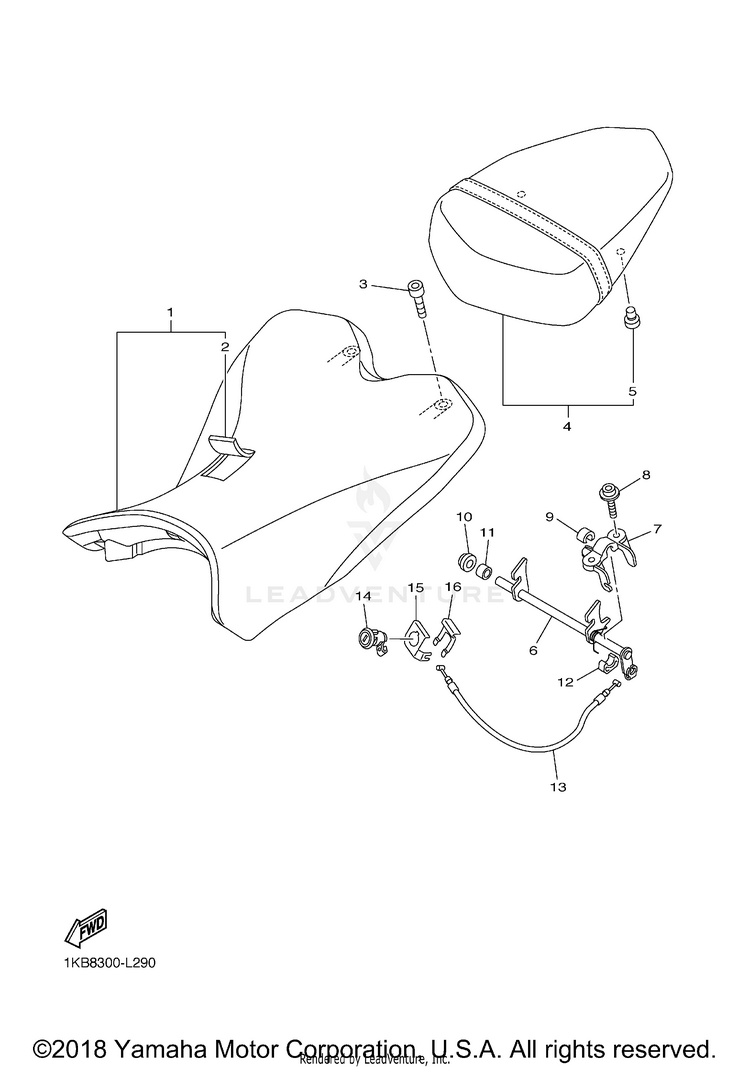

2012 Yamaha YZF-R1 Seat OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	14B-24710-01-00 (replaces part # 14B-24710-00-00)	SINGLE SEAT ASSY	$131.99	$102.95	Usually ships in 7-10 business days
2	14B-24711-01-00 (replaces part # 14B-24711-00-00)	COVER, SINGLE SEAT	$144.99	$113.09	Usually ships in 7-10 business days
3	90110-06258-00	BOLT, HEXAGON SOCKET HEAD	$10.49	$8.18	7 In-Stock
4	14B-24750-01-00 (replaces part # 14B-24750-00-00)	TANDEM SEAT ASSY	$178.99	$139.61	Usually ships in 7-10 business days
5	5SL-24723-00-00	DAMPER, SEAT	$7.49	$6.74	Usually ships in 7-10 business days
6	1KB-24780-00-00	SEAT LOCK ASSY	$78.99	$61.61	Usually ships in 7-10 business days
7	2C0-24792-00-00	PLATE	$44.99	$36.89	Usually ships in 7-10 business days
8	90110-06163-00	BOLT, HEXAGON SOCKET HEAD	$11.49	$8.96	10+ In-Stock
9	14B-24725-00-00	SPACER 1	$5.99	$5.39	Usually ships in 7-10 business days
10	13S-24725-00-00	SPACER 1	$7.49	$6.74	Usually ships in 7-10 business days
11	90560-08213-00	SPACER	$15.49	$12.70	Usually ships in 7-10 business days
12	13S-24847-00-00	HOLDER 1	$8.49	$7.64	Usually ships in 7-10 business days
13	14B-2478E-00-00	CABLE, SEAT LOCK	$25.99	$21.31	Usually ships in 7-10 business days
14	5VY-W2470-00-00	SEAT LOCK ASSY	$99.99	$77.99	Usually ships in 7-10 business days
15	5VY-2117K-01-00	STAY, LOCK	$8.49	$7.64	Usually ships in 7-10 business days
16	5VY-2176V-00-00	SPRING, LOCK 2	$12.99	$10.65	Usually ships in 7-10 business days
