2012 Yamaha YZF-R1 Taillight OEM Parts Diagram

Submodel YZFR1 - YZFR1BCB - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

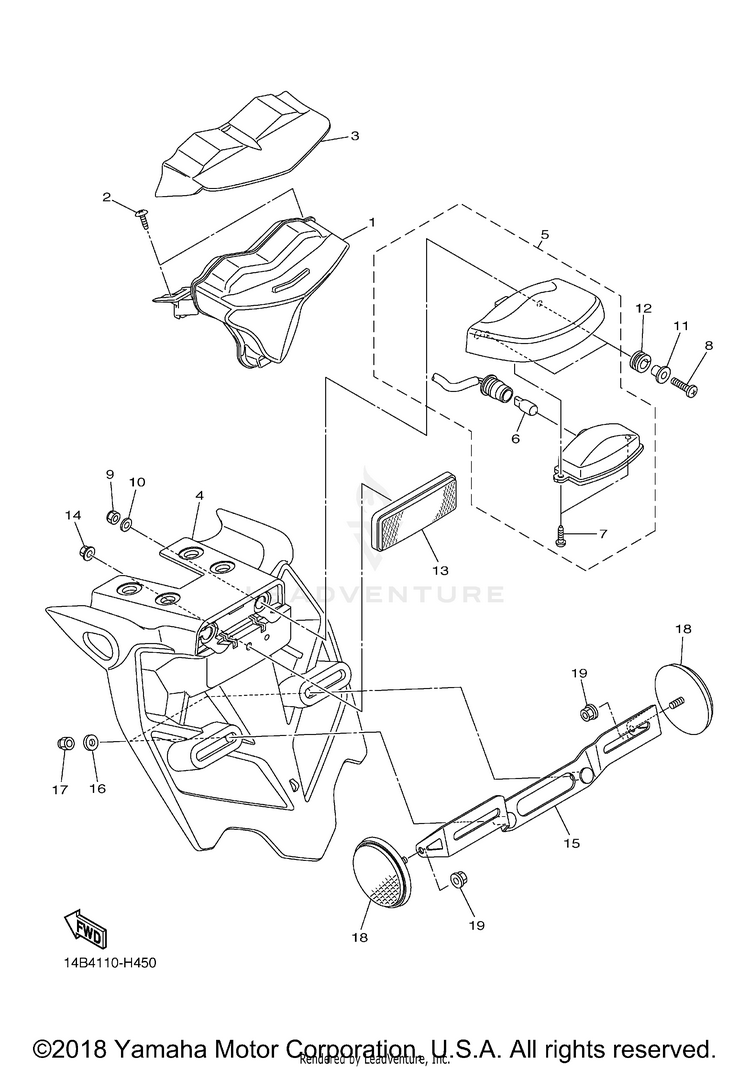

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
114B-84710-10-00TAILLIGHT UNIT ASSY$219.99$171.59Usually ships in 7-10 business days
297707-50014-00

(replaces part #
97702-50014-00)

SCREW, TRUSS HEAD TAPPING$9.49$7.4010+ In-Stock
314B-84516-00-00COVER, TAILLIGHT$27.99$22.95Usually ships in 7-10 business days
414B-21629-01-00GUARD, MUD$43.99$36.07Usually ships in 7-10 business days
55VX-84745-01-00LICENSE LIGHT UNIT ASSY$106.99$83.45Usually ships in 7-10 business days
64SV-84347-00-00

(replaces part #
4HC-84744-00-00)

BULB (12V-5W)$9.49$8.544 In-Stock
797707-40012-00

(replaces part #
97706-04012-00)

SCREW, TAPPING$9.49$7.4010+ In-Stock
898902-05020-00SCREW, BIND$1.85$1.5910+ In-Stock
995617-05100-00

(replaces part #
95602-05100-00)

NUT, U$10.49$8.1810+ In-Stock
1092907-05200-00WASHER$4.80$4.1310+ In-Stock
1190387-05003-00COLLAR$6.49$5.84Usually ships in 7-10 business days
1290480-11009-00GROMMET$1.20$1.08Usually ships in 7-10 business days
133Y6-85130-02-00REAR REFLECTOR ASSY$30.99$24.173 In-Stock
1495607-05200-00

(replaces part #
95602-05200-00)

NUT, U FLANGE$10.49$8.183 In-Stock
1514B-84751-00-00BRACKET, LICENSE$33.99$27.87Usually ships in 7-10 business days
1692990-06600-00

(replaces part #
92902-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
1795617-06100-00

(replaces part #
95602-06100-00)

NUT, U$2.90$2.4910+ In-Stock
18449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
1995702-05500-00NUT, WITH WASHER-$1.118 In-Stock
