2013 Yamaha FJR1300A Starting Motor OEM Parts Diagram

Submodel FJR1300A - FJR13ADCG - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

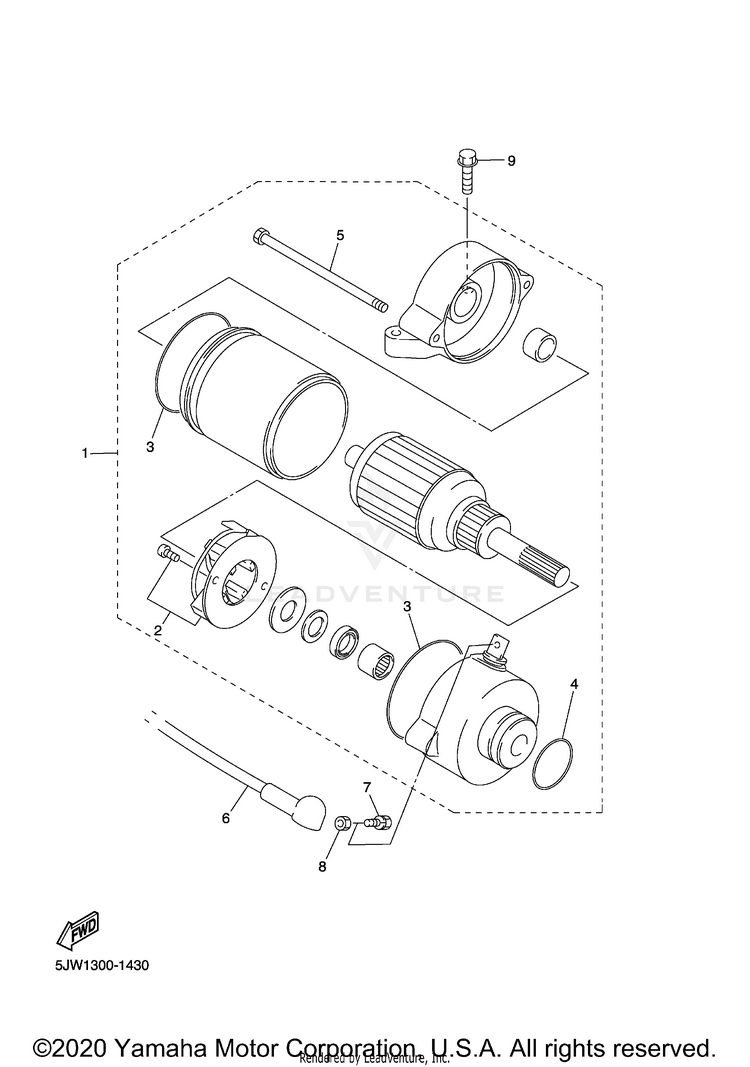

STARTING MOTOR

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11MC-81890-03-00

(replaces part #
1MC-81890-00-00)

MOTOR ASSY$539.99$470.76Usually ships in 7-10 business days
21MC-81801-00-00BRUSH SET$53.99$42.11Usually ships in 7-10 business days
393210-55669-00O-RING$9.49$7.403 In-Stock
493210-25711-00O-RING$8.49$6.6210+ In-Stock
55JW-81846-01-00SCREW$4.35$3.92Usually ships in 7-10 business days
61MC-8183G-00-00CORD COMP.$56.99$44.45Usually ships in 7-10 business days
73P6-81828-00-00SCREW 2$0.55$0.50Usually ships in 7-10 business days
895317-05700-00

(replaces part #
95302-05700-00)

NUT$9.49$7.402 In-Stock
991317-06025-00

(replaces part #
91312-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
