2013 Yamaha PW50 YZinger Carburetor OEM Parts Diagram

Submodel PW50 - PW50D1 - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

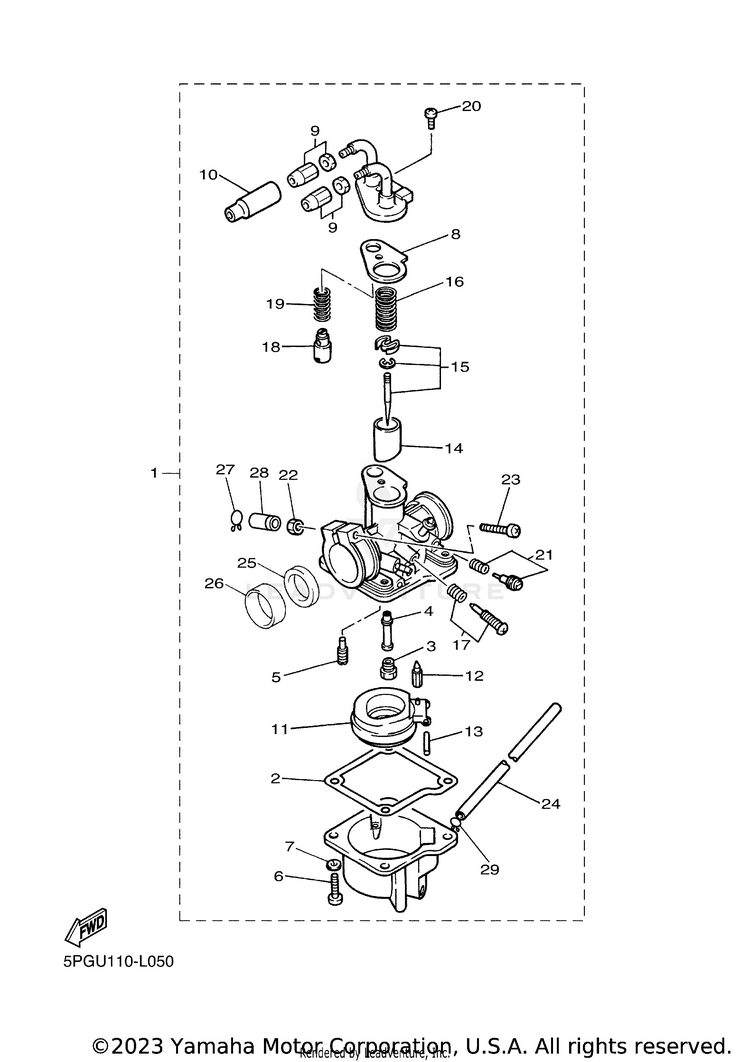

CARBURETOR

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PG-14101-11-00CARBURETOR ASSY 1$239.99$187.1910+ In-Stock
AFTERMARKET ALTERNATIVE
$27.99$23.9910+ In-Stock
23L5-14184-00-00GASKET, FLOAT CHAMBER$33.99$26.518 In-Stock
3620-14231-14-00JET, MAIN (# 70)$10.99$8.579 In-Stock
43L7-14141-12-00NOZZLE, MAIN$37.99$29.633 In-Stock
53L5-14142-40-00JET, PILOT (# 40)$10.99$8.574 In-Stock
698507-04014-00SCREW, PAN HEAD$2.00$1.7210+ In-Stock
792907-04100-00WASHER, SPRING$9.49$7.406 In-Stock
83L5-14198-00-00GASKET$9.49$7.406 In-Stock
917L-14106-00-00CABLE ADJUST SCREW SET$9.99$7.797 In-Stock
101R0-14169-00-00CAP$10.99$8.576 In-Stock
113L6-14185-01-00FLOAT$73.99$57.714 In-Stock
123L5-14190-01-00NEEDLE VALVE ASSY$39.99$31.1910+ In-Stock
13603-14186-00-00PIN, FLOAT$8.49$6.622 In-Stock
143L5-14112-40-00VALVE, THROTTLE 1$89.99$70.19Usually ships in 7-10 business days
155PG-1490J-00-00NEEDLE SET$28.99$22.617 In-Stock
16174-14131-01-00SPRING, THROTTLE VALVE$9.99$7.796 In-Stock
1736R-14103-00-00THROTTLE SCREW SET$31.99$24.951 In-Stock
1858E-14171-00-00

(replaces part #
127-14171-00-00)

PLUNGER, STARTER$37.99$29.634 In-Stock
19127-14135-00-00SPRING, PLUNGER$8.49$6.627 In-Stock
2097607-05112-00

(replaces part #
98607-05112-00)

SCREW, WITH WASHER$9.49$7.403 In-Stock
2136R-14104-00-00AIR SCREW SET$10.99$8.57
2298807-05100-00NUT$3.05$2.622 In-Stock
2398517-05030-00

(replaces part #
98507-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
2490445-05N13-00

(replaces part #
214-14197-00-00)

HOSE (L200)$9.49$7.4010+ In-Stock
251M3-14997-00-00SEAL$8.49$6.629 In-Stock
261V3-14271-00-00INSULATOR$33.99$26.514 In-Stock
2755X-14937-00-00CLIP$8.49$7.64Usually ships in 7-10 business days
283XV-14169-00-00CAP$5.99$5.39Usually ships in 7-10 business days
2922F-14139-00-00CLIP, PIPE$6.49$5.06
