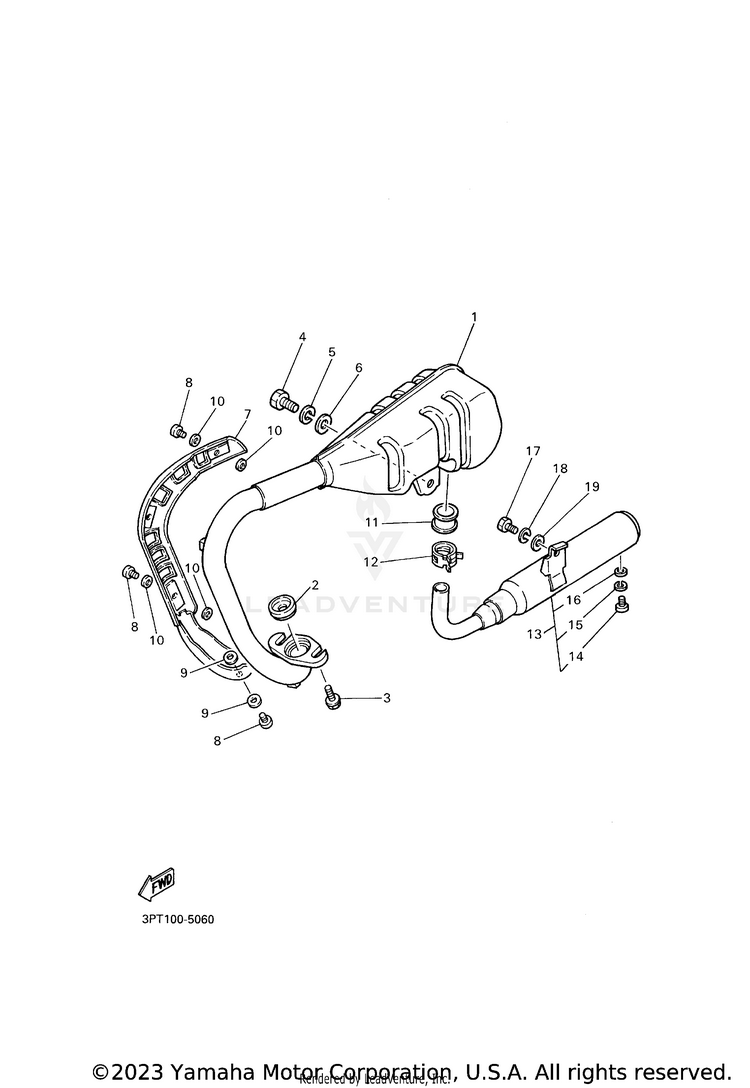

2013 Yamaha PW50 YZinger Exhaust OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	4X4-14610-01-00	EXHAUST PIPE ASSY 1	$224.99	$175.49	8 In-Stock
2	4X4-14623-11-00 (replaces part # 4X4-14623-10-00)	GASKET, EXHAUST PIPE	$7.49	$5.84	10+ In-Stock
3	90153-06011-00	SCREW, HEXAGON	$9.49	$7.40	10+ In-Stock
4	97017-08020-00 (replaces part # 97007-08020-00)	BOLT	$10.49	$8.18	10+ In-Stock
5	92907-08100-00	WASHER, SPRING	$9.49	$7.40	10+ In-Stock
6	92907-08600-00	WASHER, PLATE	$3.25	$2.80
7	4X4-14708-00-00	PROTECTOR ASSY	$71.99	$56.15	7 In-Stock
8	98507-05006-00 (replaces part # 90157-05003-00)	SCREW, PAN HEAD	$3.85	$3.31	10+ In-Stock
9	90202-04214-00	WASHER, PLATE	$9.49	$7.40	10+ In-Stock
10	3RV-14766-00-00	WASHER, PROTECTOR	$7.49	$5.84	10+ In-Stock
11	4X4-14714-00-00	GASKET, MUFFLER	$5.99	$4.67	10+ In-Stock
12	90467-22048-00	CLIP	$9.49	$7.40	10+ In-Stock
13	4X4-14750-00-00	SILENCER ASSY	$203.99	$159.11	8 In-Stock
14	98517-06008-00 (replaces part # 98507-06008-00)	SCREW	$9.49	$7.40	4 In-Stock
15	92907-06100-00	WASHER, SPRING	$1.30	$1.12	10+ In-Stock
16	92907-06600-00	WASHER, PLATE	$1.00	$0.99	10+ In-Stock
17	97017-06016-00 (replaces part # 97007-06016-00)	BOLT	$9.49	$7.40	7 In-Stock
18	92907-06100-00	WASHER, SPRING	$1.30	$1.12	10+ In-Stock
19	92907-06600-00	WASHER, PLATE	$1.00	$0.99	10+ In-Stock
