2013 Yamaha RAPTOR 250 Clutch OEM Parts Diagram

Submodel RAPTOR 250 - YFM25RDW - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

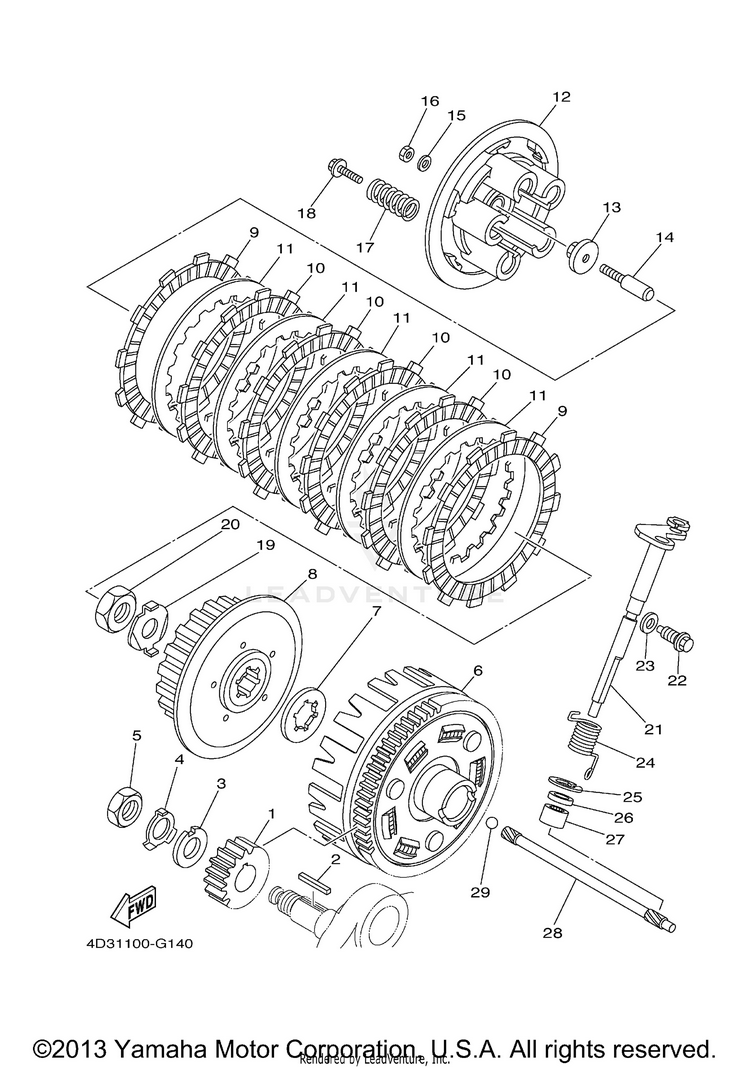

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14D3-16111-00-00GEAR, PRIMARY DRIVE$59.99$46.79Usually ships in 7-10 business days
290282-05077-00KEY, STRAIGHT$9.49$8.54Usually ships in 7-10 business days
390214-16063-00WASHER, CLAW$16.49$13.52Usually ships in 7-10 business days
490215-16293-00WASHER, LOCK$11.49$8.965 In-Stock
590170-16003-00NUT$3.85$3.312 In-Stock
64D3-16150-00-00PRIMARY DRIVEN GEAR COMP.$308.99$241.014 In-Stock
730X-16154-00-00PLATE, THRUST 1$28.99$22.615 In-Stock
84D3-16371-00-00BOSS, CLUTCH$111.99$87.354 In-Stock
93XJ-16321-00-00PLATE, FRICTION$24.99$19.4910+ In-Stock
105DH-16321-00-00PLATE, FRICTION$28.99$22.6110+ In-Stock
113XJ-16324-10-00

(replaces part #
3XJ-16324-01-00)

PLATE, CLUTCH 1$14.49$13.3010+ In-Stock
124GY-16351-00-00PLATE, PRESSURE 1$70.99$55.3710+ In-Stock
131W1-16358-01-00PLATE, PUSH$25.99$20.277 In-Stock
145XT-16356-00-00ROD, PUSH 1$17.99$14.0310+ In-Stock
1592990-06200-00

(replaces part #
92902-06200-00)

WASHER, PLAIN-$1.2810+ In-Stock
1695380-06600-00

(replaces part #
95302-06600-00)

NUT, HEXAGON$4.90$4.605 In-Stock
1790501-230A4-00SPRING, COMPRESSION$9.49$7.407 In-Stock
1890159-06029-00SCREW, WITH WASHER$9.49$7.4010+ In-Stock
1990215-16289-00WASHER, LOCK$7.99$6.5210+ In-Stock
2090170-16326-00NUT$14.49$11.305 In-Stock
214D3-16381-00-00PUSH LEVER COMP.$88.99$69.412 In-Stock
2290109-08105-00BOLT$3.45$3.102 In-Stock
2390430-08119-00GASKET$7.49$5.848 In-Stock
2490508-203B3-00SPRING, TORSION$6.49$5.062 In-Stock
2599009-20500-00CIRCLIP$1.85$1.599 In-Stock
2693102-12224-00OIL SEAL$11.49$8.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$3.99$2.9910+ In-Stock
2793317-11287-00BEARING$25.99$20.2710+ In-Stock
284GY-16357-00-00ROD, PUSH 2$51.99$40.557 In-Stock
2993511-32027-00

(replaces part #
93511-32017-00)

BALL$9.49$7.4010+ In-Stock
