2013 Yamaha RAPTOR 250 Crankcase OEM Parts Diagram

Submodel RAPTOR 250 - YFM25RDW - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

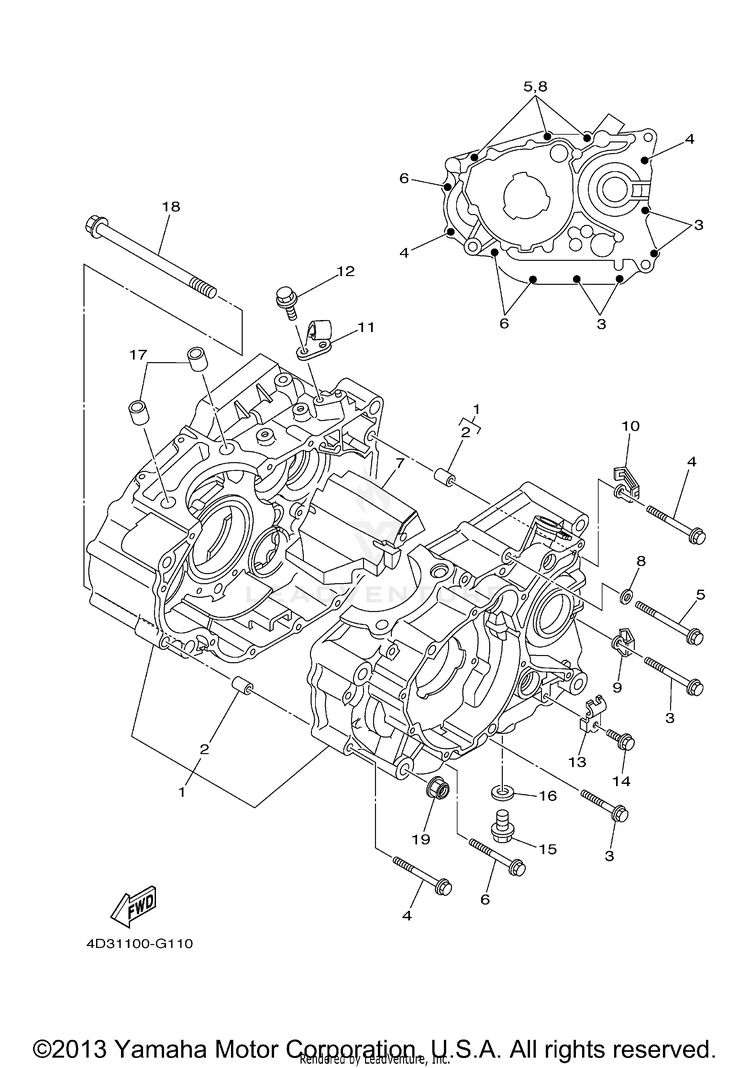

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XT-15100-07-00CRANKCASE ASSY$447.99$349.433 In-Stock
299530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
395022-06045-00BOLT, FLANGE$4.65$4.0010+ In-Stock
495022-06060-00BOLT, FLANGE$9.49$7.403 In-Stock
595022-06070-00BOLT, FLANGE$2.40$2.067 In-Stock
695022-06055-00BOLT, FLANGE$1.40$1.264 In-Stock
74D3-15327-00-00SPACER, ENGINE MOUNT$43.99$36.07Usually ships in 7-10 business days
890430-06014-00GASKET$8.99$7.0110+ In-Stock
990462-08045-00CLAMP$6.49$5.84Usually ships in 7-10 business days
1090461-08001-00CLAMP$5.49$4.94Usually ships in 7-10 business days
114D3-15441-00-00HOLDER, CLUTCH CABLE$16.49$13.52Usually ships in 7-10 business days
1295817-06016-00

(replaces part #
95812-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
1390462-10215-00CLAMP$9.49$8.54Usually ships in 7-10 business days
1495022-06010-00BOLT, FLANGE$6.49$5.066 In-Stock
1590340-12006-00

(replaces part #
90340-12059-00)

PLUG, STRAIGHT SCREW$4.55$4.2010+ In-Stock
1690430-12213-00GASKET$6.49$5.0610+ In-Stock
1799530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
1895812-10170-00BOLT, FLANGE$8.49$6.625 In-Stock
1995602-10200-00NUT, S/L FLANGE$2.70$2.3210+ In-Stock
