2013 Yamaha TTR230 Handle Switch Lever OEM Parts Diagram

Submodel TTR230 - TTR230D - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

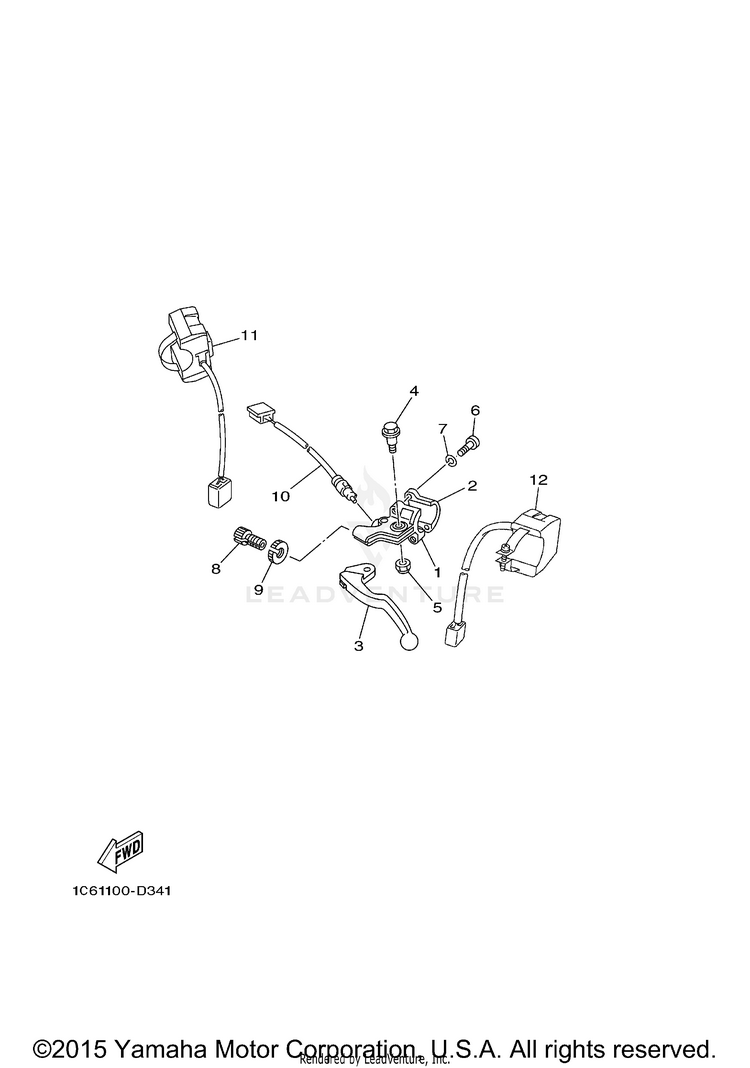

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12TY-H2911-00-00HOLDER, LEVER 1$25.99$20.277 In-Stock
21B2-H2913-00-00HOLDER, LEVER LOWER 1$4.90$4.21
34GY-83912-00-00

(replaces part #
1B2-H3912-00-00)

LEVER 1$31.99$24.9510+ In-Stock
44LR-H3945-00-00BOLT, LEVER$2.00$1.726 In-Stock
590185-06802-00

(replaces part #
90185-06W10-00)

NUT,SELF-LOCKING$1.35$1.167 In-Stock
698517-05020-00

(replaces part #
9851M-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
792907-05100-00

(replaces part #
9290M-05100-00)

WASHER, SPRING$9.49$7.706 In-Stock
890123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
990179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
105TJ-82917-02-00SWITCH$50.99$39.778 In-Stock
115TJ-83976-13-00SWITCH, HANDLE 1$86.99$67.851 In-Stock
125UM-83976-E2-00SWITCH, ENGINE STOP$76.99$60.053 In-Stock
