2013 Yamaha TTR230 Steering OEM Parts Diagram

Submodel TTR230 - TTR230D - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

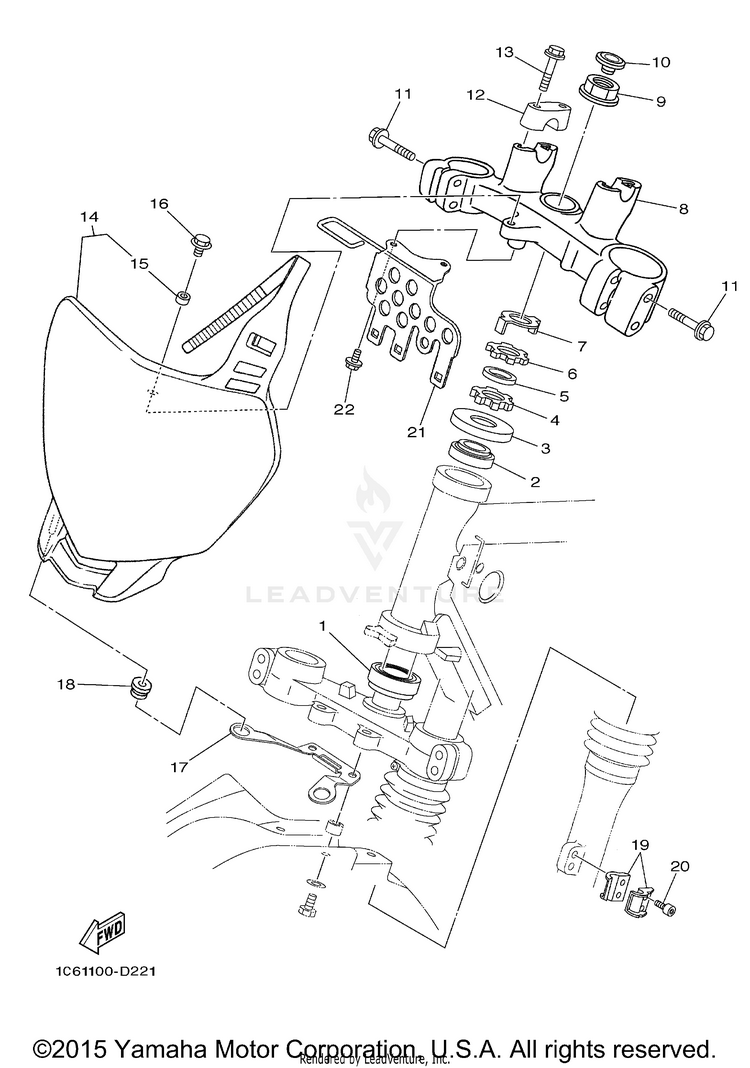

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00008-00BEARING$73.99$57.714 In-Stock
293332-00001-00BEARING$63.99$49.913 In-Stock
34JG-23416-00-00COVER, BALL RACE 2$28.99$23.77Usually ships in 7-10 business days
490179-25W23-00NUT$13.99$11.47Usually ships in 7-10 business days
590202-26142-00WASHER, PLATE$10.49$8.187 In-Stock
690179-25806-00

(replaces part #
90179-25W22-00)

NUT$11.49$9.42Usually ships in 7-10 business days
75HH-F3418-00-00WASHER, SPECIAL$2.10$1.89Usually ships in 7-10 business days
81C6-F3435-00-35

(replaces part #
1C6-F3435-00-00)

CROWN,HANDLE$167.99$131.03Usually ships in 7-10 business days
990179-22412-00NUT$22.99$17.932 In-Stock
101C6-F319U-00-00CAP$1.15$0.996 In-Stock
1195027-08040-00

(replaces part #
9502M-08040-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
123V9-F3441-10-35

(replaces part #
3V9-F3441-10-00)

HOLDER, HANDLE UPPER$16.49$12.866 In-Stock
1395027-08035-00

(replaces part #
9502M-08035-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
141C6-F3485-00-00PLATE, NUMBER$38.99$30.413 In-Stock
1590387-06W62-00COLLAR$2.35$2.022 In-Stock
1695027-06014-00

(replaces part #
9502M-06014-00)

BOLT, FLANGE$0.95$0.825 In-Stock
171C6-F3486-00-00STAY, PLATE$11.49$8.964 In-Stock
1890480-13428-00GROMMET$9.49$7.409 In-Stock
1990465-14242-00CLAMP$39.99$31.191 In-Stock
209131M-06016-00BOLT-$1.854 In-Stock
211C6-H350E-00-00BRACKET$20.99$17.21Not Shipping
2295817-06014-00

(replaces part #
9580M-06014-00)

BOLT, FLANGE-$2.8610+ In-Stock
