2013 Yamaha WR250F Side Cover OEM Parts Diagram

Submodel WR250F - WR250FD - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

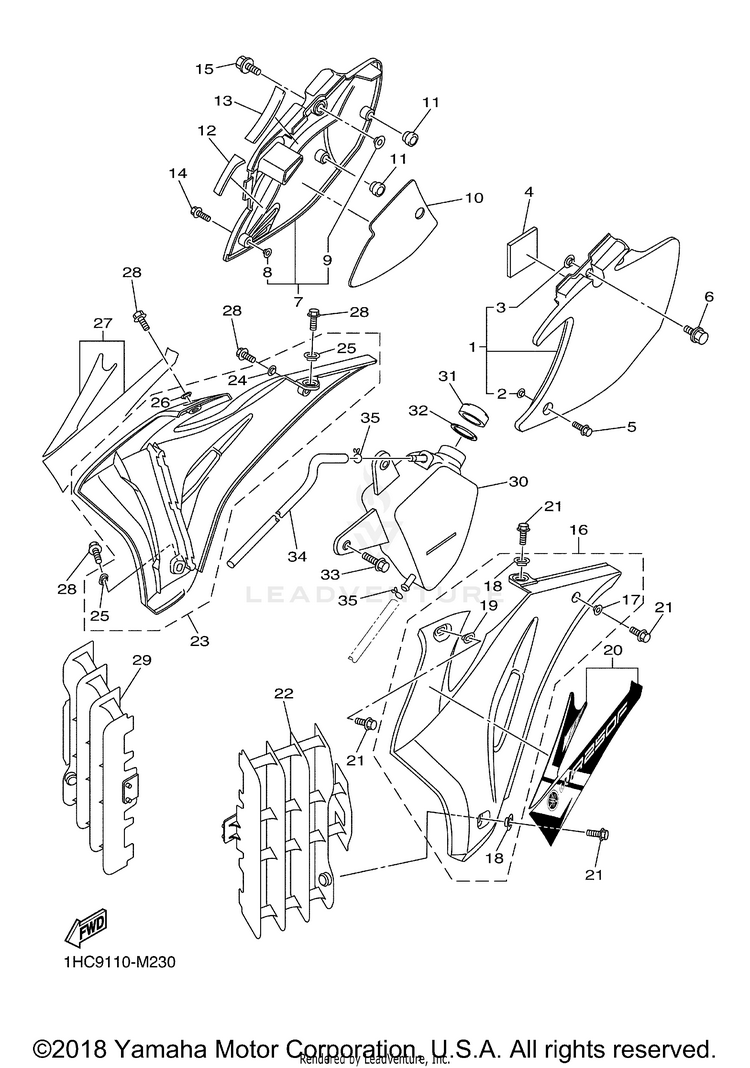

SIDE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15UM-21711-E0-00COVER, SIDE 1$35.99$28.074 In-Stock
290387-06009-00COLLAR$11.49$8.9610+ In-Stock
35BE-21749-00-00COLLAR$7.49$5.8410+ In-Stock
45UM-21717-E0-00DAMPER$5.99$5.394 In-Stock
590105-06103-00BOLT, FLANGE$5.49$4.2810+ In-Stock
690119-08095-00BOLT, WITH WASHER$9.49$7.4010+ In-Stock
75UM-21721-E0-00COVER, SIDE 2$34.99$27.294 In-Stock
890387-06009-00COLLAR$11.49$8.9610+ In-Stock
95BE-21749-00-00COLLAR$7.49$5.8410+ In-Stock
105UM-2174A-E0-00INSULATOR, SIDE COVER$28.99$23.771 In-Stock
115XC-21719-90-00GROMMET$10.99$9.017 In-Stock
125UM-2172S-E0-00INSULATOR 3$4.80$4.322 In-Stock
135UM-2173S-E0-00INSULATOR 4$9.49$7.402 In-Stock
1490105-06103-00BOLT, FLANGE$5.49$4.2810+ In-Stock
1590119-08095-00BOLT, WITH WASHER$9.49$7.4010+ In-Stock
165UM-21730-E0-00SIDE COVER ASSY 3$43.99$34.311 In-Stock
1790387-06009-00COLLAR$11.49$8.9610+ In-Stock
185TA-21749-00-00COLLAR$12.99$10.1310+ In-Stock
195XC-21749-90-00COLLAR$14.49$11.8810+ In-Stock
201HC-2173L-00-00GRAPHIC SET 1$58.99$46.01Usually ships in 7-10 business days
2190105-06064-00BOLT, FLANGE$3.45$2.9710+ In-Stock
222S2-2172A-70-00PANEL 1$44.99$35.094 In-Stock
235UM-21740-E0-00SIDE COVER ASSY 4$34.99$27.291 In-Stock
2490387-06009-00COLLAR$11.49$8.9610+ In-Stock
255TA-21749-00-00COLLAR$12.99$10.1310+ In-Stock
265XC-21749-90-00COLLAR$14.49$11.8810+ In-Stock
271HC-2174L-00-00GRAPHIC SET 2$54.99$42.89Usually ships in 7-10 business days
2890105-06064-00BOLT, FLANGE$3.45$2.9710+ In-Stock
292S2-2172A-80-00PANEL 1$45.99$35.873 In-Stock
305UM-21860-E0-00TANK ASSY$145.99$113.87Usually ships in 7-10 business days
3126H-21875-00-00CAP$37.99$29.633 In-Stock
3226H-21874-00-00GASKET$8.49$6.626 In-Stock
3390119-06146-00BOLT, WITH WASHER$4.70$4.046 In-Stock
345UM-1244J-E0-00HOSE 6$19.49$15.98Usually ships in 7-10 business days
3590467-090A2-00CLIP$4.75$4.0810+ In-Stock
