2013 Yamaha WR250F Starter Clutch OEM Parts Diagram

Submodel WR250F - WR250FD - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER CLUTCH

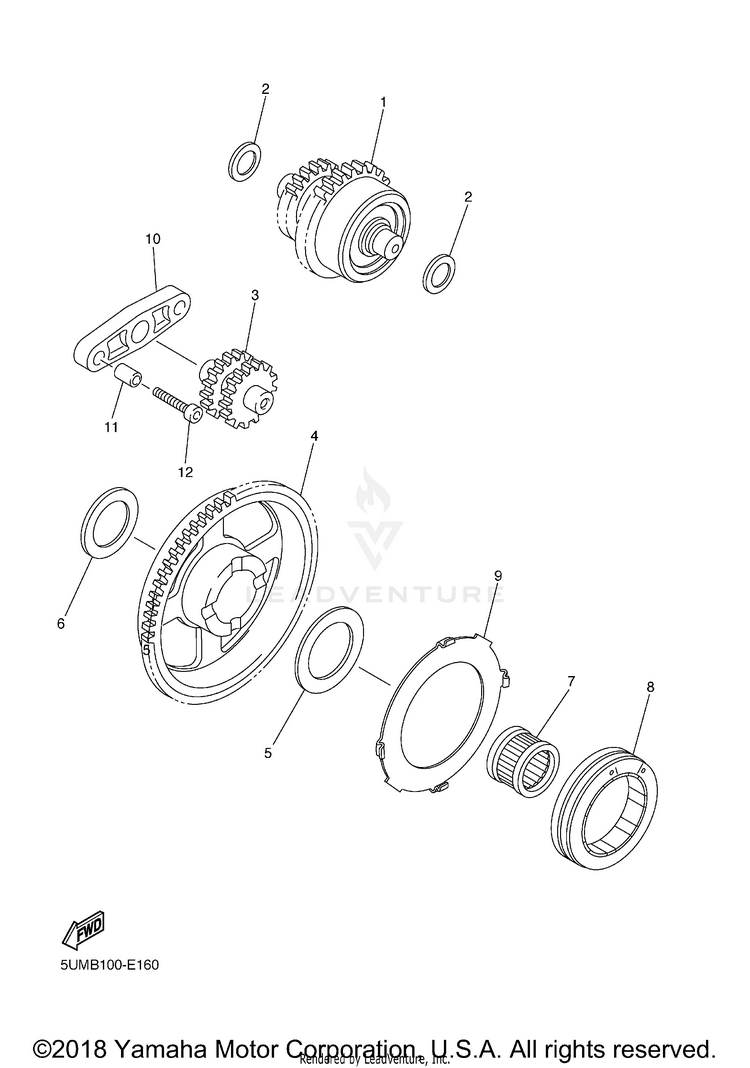

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15UM-15560-10-00DAMPER ASSY$290.99$241.50Usually ships in 7-10 business days
290201-08759-00

(replaces part #
90201-104R2-00)

WASHER, PLATE$3.50$3.0110+ In-Stock
35UM-15517-00-00GEAR, IDLER 2$100.99$78.77Usually ships in 7-10 business days
45UM-15515-20-00GEAR 3$207.99$162.23Usually ships in 7-10 business days
590201-20021-00WASHER, PLATE (T=1.0)$13.49$11.06Usually ships in 7-10 business days
690201-20792-00

(replaces part #
90201-203L1-00)

WASHER, PLATE$10.49$8.60Usually ships in 7-10 business days
793310-42057-00BEARING$49.99$40.99Usually ships in 7-10 business days
85UM-15570-00-00STARTER CLUTCH ASSY$137.99$107.631 In-Stock
95VY-15586-00-00PLATE, STARTER CLUTCH ASSY$14.49$11.303 In-Stock
105UM-15532-00-00PLATE, IDLE GEAR$45.99$37.71Usually ships in 7-10 business days
1199530-08012-00PIN, DOWEL$6.99$5.4510+ In-Stock
1291317-06025-00

(replaces part #
91312-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
