2013 Yamaha YZF-R1 Generator OEM Parts Diagram

Submodel YZFR1 - YZFR1DCR - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

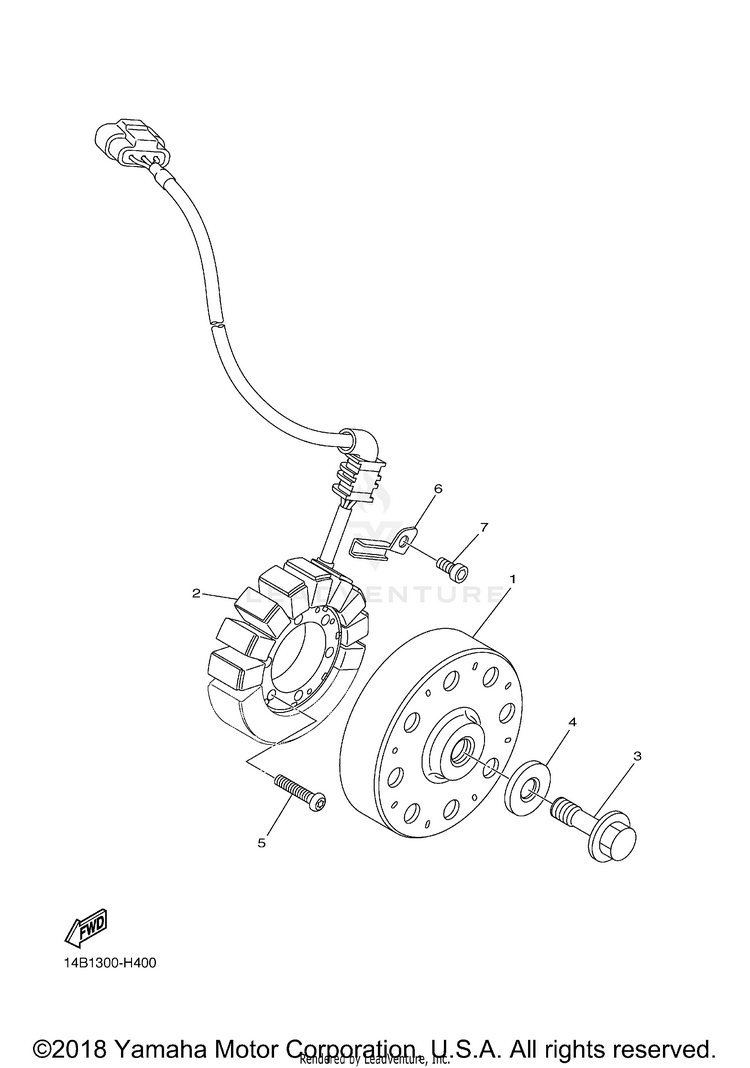

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
114B-81450-00-00ROTOR ASSY$486.99$417.41Usually ships in 7-10 business days
214B-81410-00-00STATOR ASSY$514.99$401.69Usually ships in 7-10 business days
390105-126A8-00BOLT, FLANGE$17.49$14.34Usually ships in 7-10 business days
490201-12008-00WASHER, PLATE$16.49$13.52Usually ships in 7-10 business days
590149-06129-00

(replaces part #
90149-06128-00)

SCREW$9.49$8.54Usually ships in 7-10 business days
614B-15484-00-00CLAMP 2$5.99$5.39Usually ships in 7-10 business days
791317-06012-00

(replaces part #
90110-06182-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
