2013 Yamaha YZF-R1 Shift Cam Fork OEM Parts Diagram

Submodel YZFR1 - YZFR1DCR - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

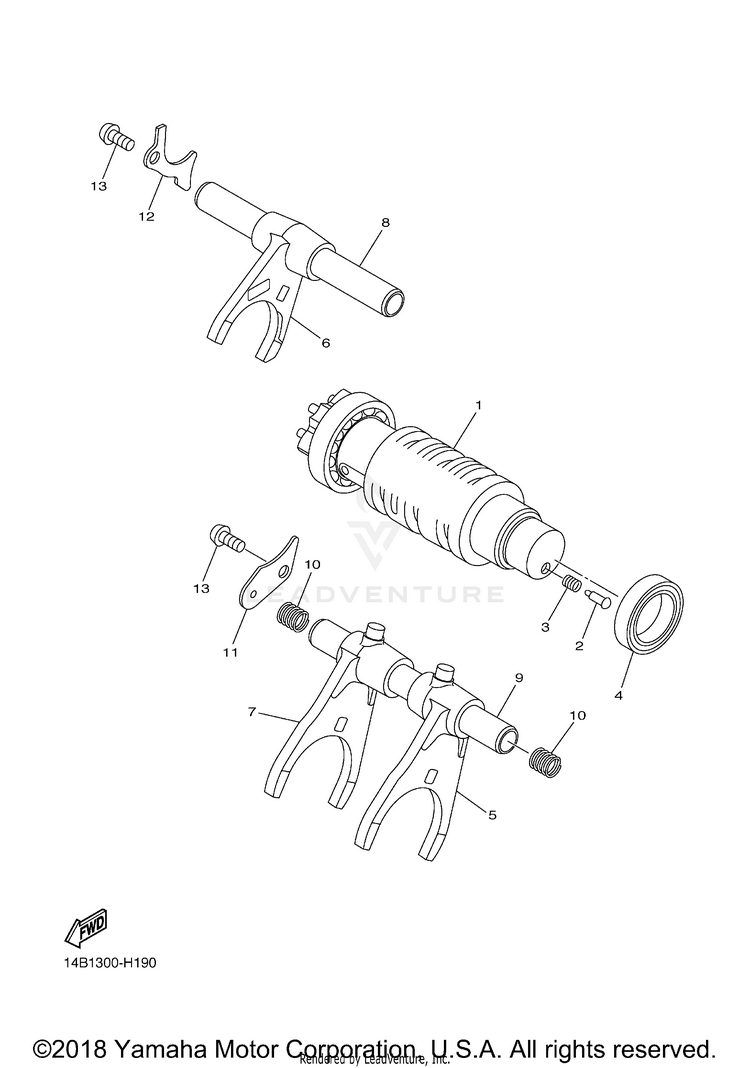

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
114B-18540-00-00SHIFT CAM ASSY$379.99$296.39Usually ships in 7-10 business days
23D7-18542-00-00POINT, NEUTRAL$7.49$5.84
390501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
493306-80502-00BEARING$42.99$33.5310+ In-Stock
514B-18511-00-00FORK, SHIFT 1$117.99$92.03Usually ships in 7-10 business days
614B-18512-00-00FORK, SHIFT 2$187.99$146.63Usually ships in 7-10 business days
714B-18513-00-00FORK, SHIFT 3$86.99$67.85Usually ships in 7-10 business days
814B-18531-00-00BAR, SHIFT FORK GUIDE 1$42.99$35.25Usually ships in 7-10 business days
92C0-18535-00-00BAR, SHIFT FORK GUIDE 2$46.99$38.53Usually ships in 7-10 business days
1090501-080A2-00SPRING, COMPRESSION$8.49$7.64Usually ships in 7-10 business days
1114B-18536-00-00STOPPER, SHIFT BAR$4.60$4.14Usually ships in 7-10 business days
1214B-18562-00-00PLATE, STOPPER 2$5.49$4.94Usually ships in 7-10 business days
1390149-06156-00

(replaces part #
90149-06158-00)

SCREW$9.49$8.54Usually ships in 7-10 business days
