2014 Yamaha Raider XV1900C Flasher Light OEM Parts Diagram

Submodel RAIDER - XV19CECR - 2014

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FLASHER LIGHT

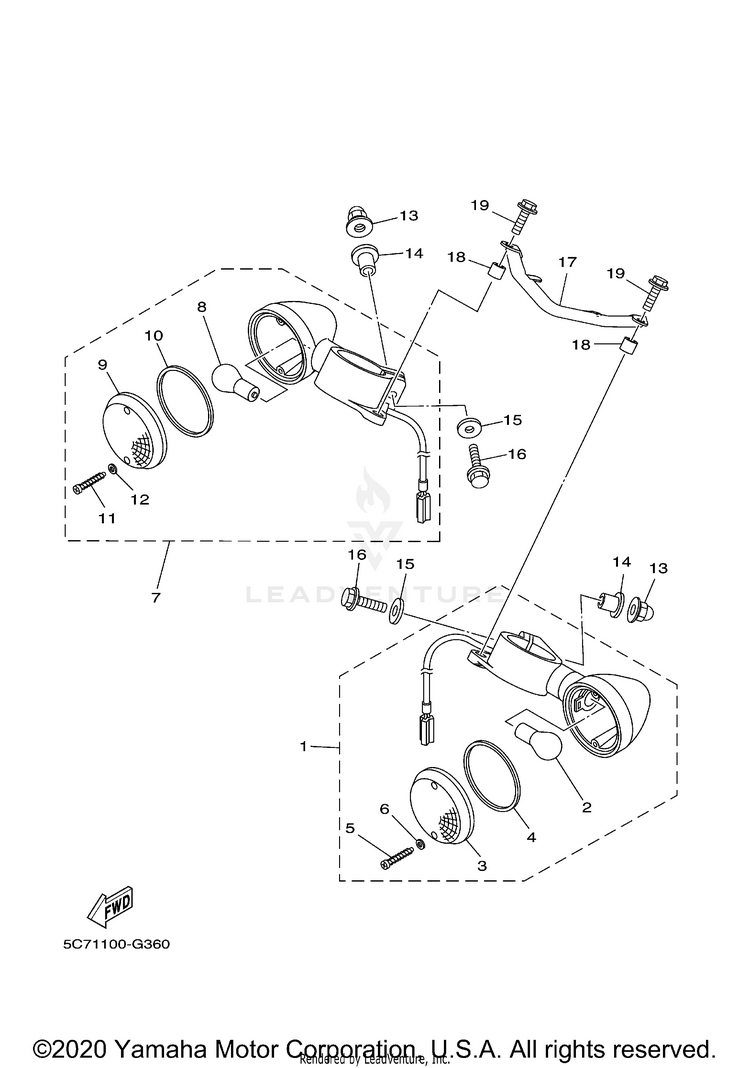

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15C7-83310-10-00FRONT FLASHER LIGHT ASSY 1$107.99$84.23Usually ships in 7-10 business days
25VN-83311-00-00BULB, FLASHER (12V-23/8W)$16.49$12.867 In-Stock
35PX-83312-10-00LENS, FLASHER$10.99$8.572 In-Stock
45PX-83313-00-00GASKET, FLASHER LENS$7.49$6.741 In-Stock
597704-40625-00SCREW, TAPPING$9.49$8.54Usually ships in 7-10 business days
65PX-83348-00-00WASHER$7.49$6.74Usually ships in 7-10 business days
75C7-83320-10-00FRONT FLASHER LIGHT ASSY 2$104.99$81.89Usually ships in 7-10 business days
85VN-83311-00-00BULB, FLASHER (12V-23/8W)$16.49$12.867 In-Stock
95PX-83312-10-00LENS, FLASHER$10.99$8.572 In-Stock
105PX-83313-00-00GASKET, FLASHER LENS$7.49$6.741 In-Stock
1197704-40625-00SCREW, TAPPING$9.49$8.54Usually ships in 7-10 business days
125PX-83348-00-00WASHER$7.49$6.74Usually ships in 7-10 business days
1390176-06055-00NUT, CROWN$6.49$5.0610+ In-Stock
1490387-06076-00COLLAR$6.49$5.84Usually ships in 7-10 business days
1590201-06045-00WASHER, PLATE$9.49$7.409 In-Stock
1695817-06025-00

(replaces part #
95802-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
175C7-83335-00-00GUIDE, LEAD WIRE 1$74.99$58.49Usually ships in 7-10 business days
1890387-08085-00COLLAR$8.49$7.64Usually ships in 7-10 business days
1995027-08025-00BOLT, FLANGE$10.49$8.184 In-Stock
