2014 Yamaha Raider XV1900C Seat OEM Parts Diagram

Submodel RAIDER - XV19CECR - 2014

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

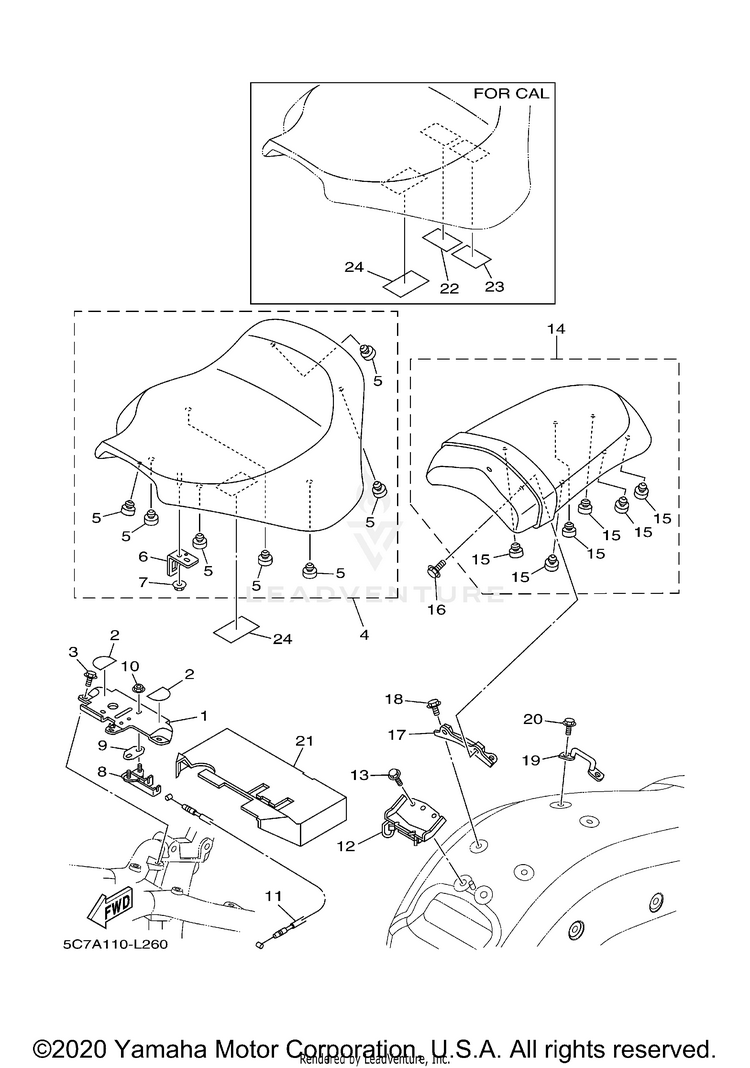

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15C7-21341-00-00BRACKET, SEAT 1$50.99$39.77Usually ships in 7-10 business days
25PX-21735-00-00SEAL 2$11.49$9.42Usually ships in 7-10 business days
395817-08016-00

(replaces part #
90105-08485-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
45C7-24710-11-00

(replaces part #
5C7-24710-10-00)

SINGLE SEAT ASSY$281.99$233.79Usually ships in 7-10 business days
522W-24741-00-00PAD, SEAT$9.49$7.4010+ In-Stock
64NK-24728-00-00BRACKET, SEAT$12.99$10.65Usually ships in 7-10 business days
795702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
84BP-24780-00-00SEAT LOCK ASSY$105.99$82.67Usually ships in 7-10 business days
94BP-24792-00-00PLATE$10.99$9.01Usually ships in 7-10 business days
1095702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
115PX-2478E-00-00CABLE, SEAT LOCK$22.99$18.85Usually ships in 7-10 business days
125C7-2475N-00-00BRACKET$84.99$66.29Usually ships in 7-10 business days
1395022-08012-00BOLT, FLANGE$13.49$10.524 In-Stock
145C7-24750-12-00

(replaces part #
5C7-24750-11-00)

TANDEM SEAT ASSY$237.99$188.67Usually ships in 7-10 business days
1522W-24741-00-00PAD, SEAT$9.49$7.4010+ In-Stock
1695022-08012-00BOLT, FLANGE$13.49$10.524 In-Stock
175C7-2475H-00-00BRACKET, SEAT LEVER 1$28.99$23.77Usually ships in 7-10 business days
1895022-08012-00BOLT, FLANGE$13.49$10.524 In-Stock
191D7-2475R-00-00BRACKET 6$18.99$15.57Usually ships in 7-10 business days
2095022-08012-00BOLT, FLANGE$13.49$10.524 In-Stock
215C7-24796-00-00COVER$50.99$39.77Usually ships in 7-10 business days
2234B-21684-00-00PLATE, ROUTING | FOR CAL$7.49$6.743 In-Stock
235RU-21686-00-00PLATE, ROUTING 2 | FOR CAL$5.99$5.39Usually ships in 7-10 business days
241D7-21668-00-00LABEL, TIRE$3.65$3.28Usually ships in 7-10 business days
