2015 Yamaha RAPTOR 700 Intake OEM Parts Diagram

Submodel RAPTOR 700 - YFM700RFL - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

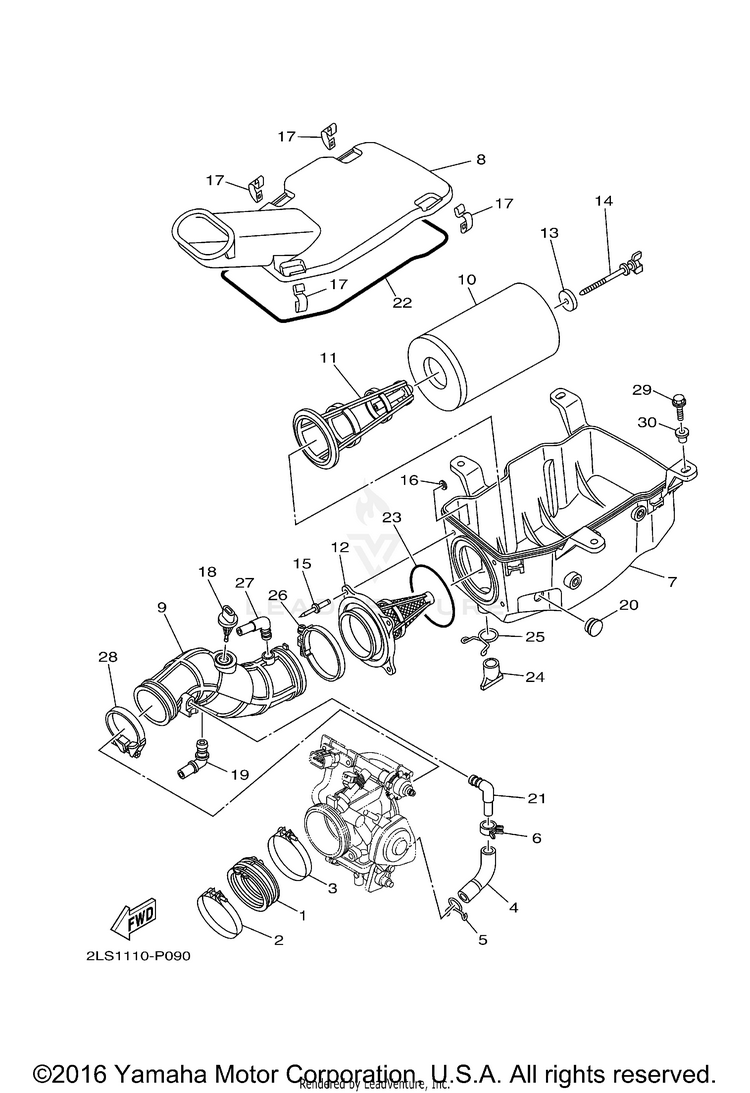

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15VK-13586-00-00JOINT, CARBURETOR 1$34.99$27.296 In-Stock
290450-72003-00HOSE CLAMP ASSY$20.99$16.376 In-Stock
390450-72003-00HOSE CLAMP ASSY$20.99$16.376 In-Stock
41PE-E3545-00-00HOSE 1$2.15$1.94Usually ships in 7-10 business days
590467-160A4-00CLIP$9.49$7.404 In-Stock
690467-15012-00CLIP$9.49$7.408 In-Stock
71S3-14411-00-00CASE, AIR CLEANER 1$58.99$46.011 In-Stock
81S3-14412-01-00CAP, CLEANER CASE 1$32.99$25.731 In-Stock
92LS-14453-00-00JOINT, AIR CLEANER 1$62.99$49.13Usually ships in 7-10 business days
101S3-14451-01-00

(replaces part #
1S3-14451-00-00)

ELEMENT, AIR CLEAN$45.99$35.875 In-Stock
111S3-14458-00-00GUIDE$35.99$28.076 In-Stock
121S3-14459-01-00HOLDER, GUIDE$54.99$42.89Usually ships in 7-10 business days
1390209-06096-00WASHER$10.49$8.1810+ In-Stock
1490122-06010-00BOLT, WING$11.49$8.9610+ In-Stock
1590267-48138-00RIVET, BLIND$4.05$3.4810+ In-Stock
1690201-04028-00WASHER, PLATE$9.49$8.54Usually ships in 7-10 business days
175TH-14436-00-00

(replaces part #
5GH-14436-00-00)

HOOK$10.99$8.5710+ In-Stock
185VU-85886-00-00SENSOR, AIR TEMPRATURE$62.99$49.131 In-Stock
195KM-14419-00-00PIPE$8.49$6.621 In-Stock
2090338-18266-00PLUG$8.49$7.64Usually ships in 7-10 business days
2131A-14419-00-00PIPE$8.49$6.627 In-Stock
221VJ-14462-00-00

(replaces part #
10M-14457-00-00)

SEAL$19.99$15.5910+ In-Stock
231S3-14457-00-00SEAL$5.99$4.672 In-Stock
2459V-14457-00-00SEAL$7.49$5.8410+ In-Stock
2590467-220A1-00CLIP$6.49$5.0610+ In-Stock
2690450-75002-00

(replaces part #
90460-75020-00)

HOSE CLAMP ASSY$12.49$9.748 In-Stock
275TJ-14419-00-00PIPE$9.49$7.405 In-Stock
2890450-59005-00

(replaces part #
90450-59006-00)

HOSE CLAMP ASSY$17.49$13.6410+ In-Stock
2990105-06084-00BOLT, FLANGE$4.95$4.2610+ In-Stock
3090387-08073-00COLLAR$10.49$8.1810+ In-Stock
