2015 Yamaha RAPTOR 700 Steering OEM Parts Diagram

Submodel RAPTOR 700 - YFM700RFL - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

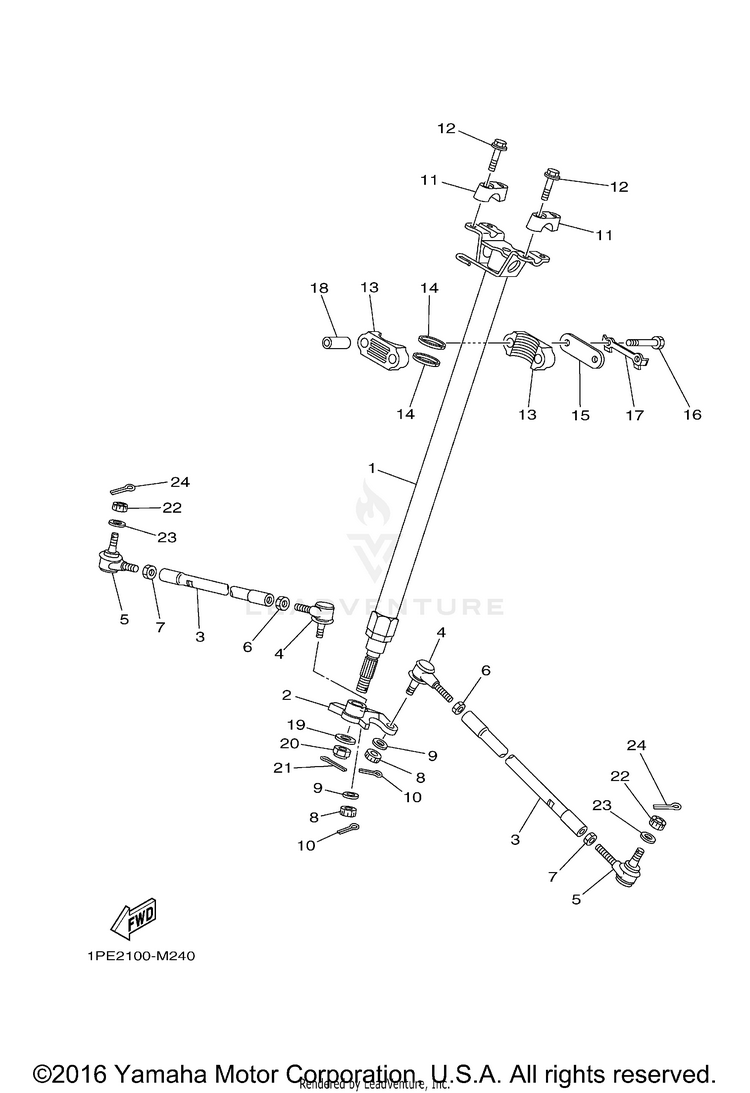

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11PE-F3813-00-00COLUMN, STEERING 2$217.99$170.031 In-Stock
21PE-F3816-00-00ARM, PITMAN$66.99$52.25Usually ships in 7-10 business days
31PD-23831-00-00ROD, TIE$66.99$52.253 In-Stock
41S3-23841-20-00JOINT, UNIVERSAL 1$70.99$55.3710+ In-Stock
51S3-23845-20-00JOINT, UNIVERSAL 2$70.99$55.3710+ In-Stock
695317-12700-00

(replaces part #
90170-12055-00)

NUT$9.49$7.4010+ In-Stock
790170-12054-00NUT | (RH. THREAD)$9.49$7.4010+ In-Stock
890171-10001-00NUT, CASTLE$3.55$3.0510+ In-Stock
990209-10229-00WASHER$8.49$6.6210+ In-Stock
1091490-20025-00

(replaces part #
91402-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
111E6-23441-00-00

(replaces part #
8K1-23814-00-00)

HOLDER, HANDLE UPR (1E6-23441-0$30.99$24.1710+ In-Stock
1295817-08030-00

(replaces part #
95822-08030-00)

BOLT, FLANGE$9.49$7.408 In-Stock
1337S-F3812-00-00BEARING, STEERING$8.49$6.62
1493112-31800-00OIL SEAL-$1.9110+ In-Stock
151PE-F3868-00-00BRACKET, STEERING LOWER-$7.288 In-Stock
1697017-08060-00

(replaces part #
97022-08060-00)

BOLT$11.49$8.968 In-Stock
171UY-23894-01-00WASHER, LOCK 1$8.49$6.6210+ In-Stock
1890387-106T4-00

(replaces part #
90387-090R0-00)

COLLAR (903-87090-R0-00)$16.49$12.8610+ In-Stock
1990201-14021-00WASHER, PLATE$6.49$5.0610+ In-Stock
2090185-14009-00NUT, SELF-LOCKING (M14)$10.49$8.1810+ In-Stock
2191490-20035-00

(replaces part #
91402-20025-00)

PIN, COTTER (91401-20030-00)$5.49$4.289 In-Stock
2290171-10001-00NUT, CASTLE$3.55$3.0510+ In-Stock
2390209-10229-00WASHER$8.49$6.6210+ In-Stock
2491490-20025-00

(replaces part #
91402-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
