2015 Yamaha WR450F Fender OEM Parts Diagram

Submodel WR450F - WR450FF - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

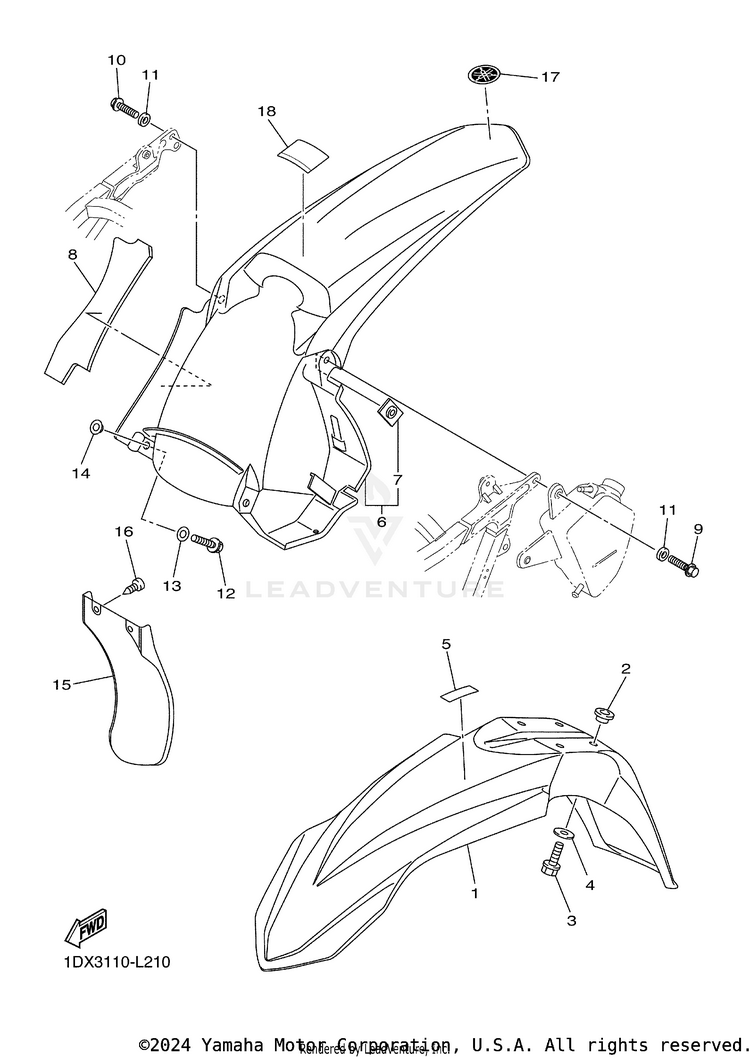

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
117D-21511-50-00FENDER, FRONT$34.99$32.298 In-Stock
290387-06259-00COLLAR$9.49$7.4010+ In-Stock
390105-06127-00BOLT, FLANGE$9.49$7.407 In-Stock
490201-06108-00WASHER, PLATE$4.95$4.2610+ In-Stock
53FB-2415E-02-00LABEL, CAUTION$5.49$4.283 In-Stock
65UM-21610-E0-00REAR FENDER COMP.$39.99$31.192 In-Stock
75XE-21635-10-00NUT, REAR FENDER$14.49$11.3010+ In-Stock
85UM-2174T-E0-00INSULATOR, SIDE COVER 2$18.99$15.575 In-Stock
990105-06127-00BOLT, FLANGE$9.49$7.407 In-Stock
1090105-06100-00BOLT, FLANGE$8.49$6.6210+ In-Stock
1190201-06032-00WASHER, PLATE$9.49$7.409 In-Stock
1290105-06106-00BOLT, FLANGE$4.05$3.4810+ In-Stock
1390201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
1490387-06009-00COLLAR$11.49$8.9610+ In-Stock
155TA-21642-00-00GUARD, FLAP$43.99$34.3110+ In-Stock
1697702-60016-00SCREW, TAPPING$2.35$2.0210+ In-Stock
173C5-2411B-20-00EMBLEM$11.99$9.353 In-Stock
185PA-2118K-01-00

(replaces part #
5PA-2118K-00-00)

LABEL, CAUTION$7.49$5.849 In-Stock
