2015 Yamaha WR450F Front Wheel OEM Parts Diagram

Submodel WR450F - WR450FF - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

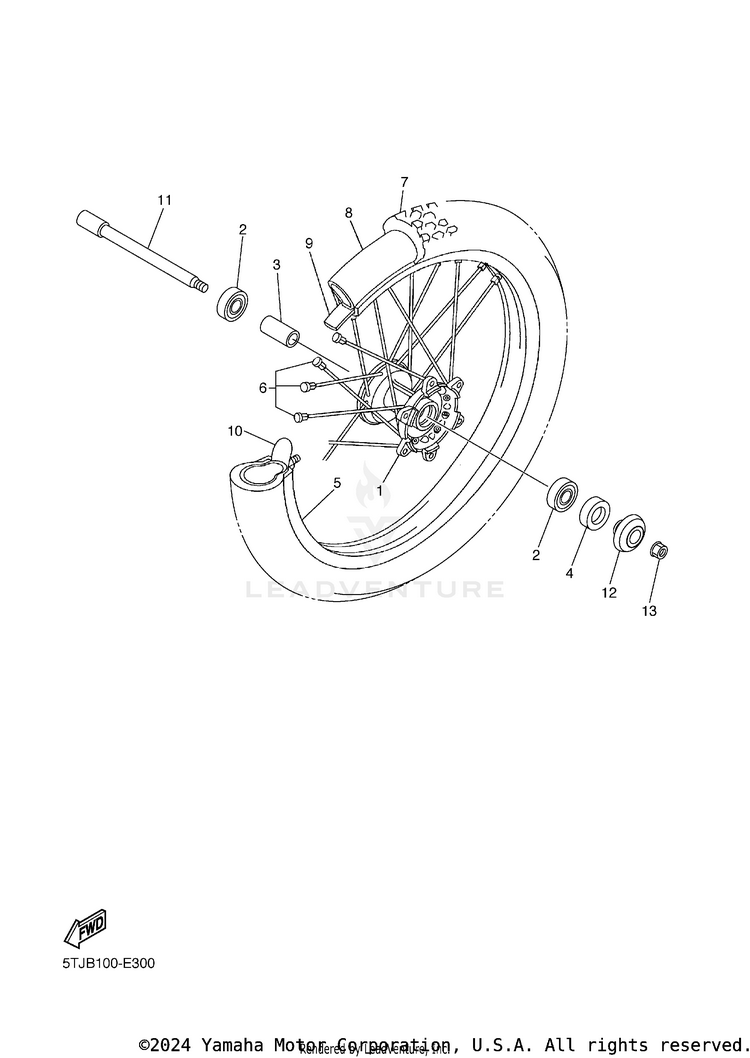

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15NG-25111-50-00HUB, FRONT$263.99$219.10Usually ships in 7-10 business days
293306-90409-00BEARING$39.99$31.1910+ In-Stock
35NY-25117-00-00SPACER, BEARING$34.99$27.299 In-Stock
493102-26468-00OIL SEAL$23.99$18.7110+ In-Stock
594416-21018-00RIM (1.60-21)$380.99$316.38Usually ships in 7-10 business days
65NY-25104-00-00SPOKE SET, FRONT$235.99$184.073 In-Stock
794108-21028-00TIRE (80/100-21 51M MX51FG) | DUNLOP$109.99$90.74Usually ships in 7-10 business days
894227-21123-00

(replaces part #
94227-21101-00)

TUBE (MCS 2.75/3.00-21 TR6) | DUNLOP$51.99$40.5510+ In-Stock
994330-21084-00

(replaces part #
94309-21161-00)

BAND, RIM (1.60-21) | DUNLOP$18.49$14.4210+ In-Stock
105SF-25394-00-00SPACER, BEAD$30.99$24.1710+ In-Stock
111C3-25181-10-00AXLE, WHEEL$137.99$107.634 In-Stock
125TJ-2510C-80-00COLLAR ASSY.$37.99$29.632 In-Stock
1390179-16011-00NUT$19.49$15.2010+ In-Stock
