2016 Yamaha Bolt Seat OEM Parts Diagram

Submodel BOLT - XVS95CGCB - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

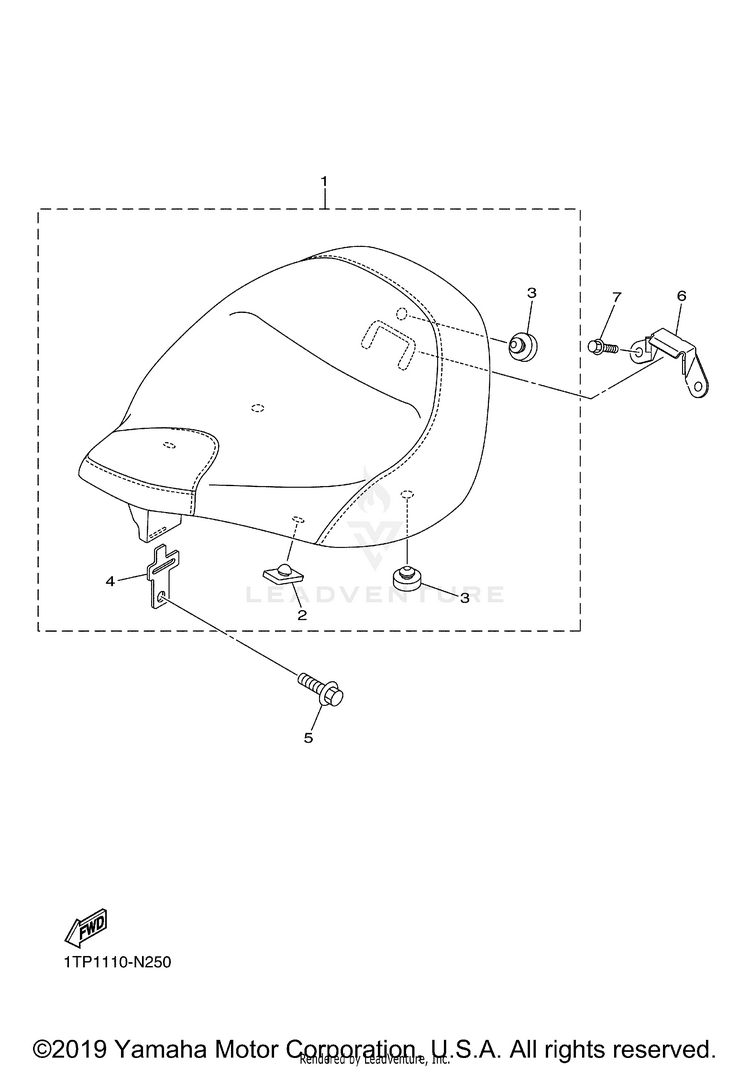

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11TP-24710-01-00

(replaces part #
1TP-24710-00-00)

SINGLE SEAT ASSY$171.99$134.15Usually ships in 7-10 business days
2509-24724-00-00DAMPER, SEAT$11.99$9.353 In-Stock
322W-24741-00-00PAD, SEAT$9.49$7.4010+ In-Stock
41TP-24718-00-00BRACKET, SEAT$5.99$5.39Usually ships in 7-10 business days
595022-08014-00BOLT, FLANGE$9.49$8.54Usually ships in 7-10 business days
61TP-2475N-00-00BRACKET$12.99$10.65Usually ships in 7-10 business days
795022-08012-00

(replaces part #
90105-08126-00)

BOLT, FLANGE$13.49$10.524 In-Stock
