2016 Yamaha FJ-09 Electrical 3 OEM Parts Diagram

Submodel FJ09 CA - FJ09GCB - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 3

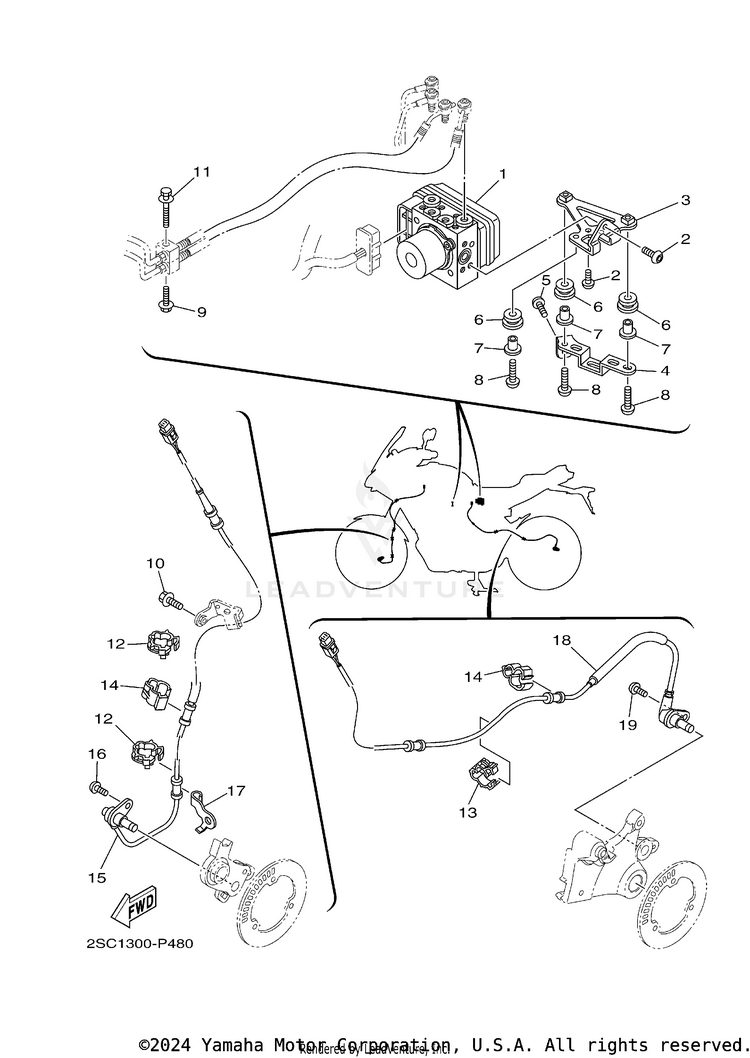

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12SC-85930-05-00

(replaces part #
2SC-85930-09-00)

HYDRAULIC UNIT ASSY$1,080.99$904.50Usually ships in 7-10 business days
292012-06010-00BOLT, BUTTON HEAD$4.65$4.0010+ In-Stock
32DR-85991-00-00BRACKET, UNIT$12.99$10.65Usually ships in 7-10 business days
42DR-85542-00-00BRACKET$11.49$9.42Usually ships in 7-10 business days
592012-06010-00BOLT, BUTTON HEAD$4.65$4.0010+ In-Stock
690480-13567-00GROMMET$5.49$4.2810+ In-Stock
790387-06160-00COLLAR$4.35$3.92Usually ships in 7-10 business days
892012-06020-00BOLT, BUTTON HEAD$9.49$7.403 In-Stock
990105-06148-00BOLT, FLANGE$9.49$7.404 In-Stock
1095817-06016-00

(replaces part #
90105-060A6-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
1190119-06M55-00BOLT, WITH WASHER$4.45$4.00Usually ships in 7-10 business days
1290464-12013-00CLAMP$9.49$8.54Usually ships in 7-10 business days
1390464-14003-00CLAMP$39.99$32.79Usually ships in 7-10 business days
1490464-10233-00CLAMP$8.49$7.64Usually ships in 7-10 business days
152DR-85970-01-00

(replaces part #
2DR-85970-00-00)

WHEEL SENSOR ASSY, FRONT$149.99$116.99Usually ships in 7-10 business days
1692014-06014-00BOLT, BUTTON HEAD$4.05$3.486 In-Stock
172DR-23318-00-00WIRE, HOLDER 1$8.99$8.09Usually ships in 7-10 business days
182DR-85980-02-00

(replaces part #
2DR-85980-01-00)

WHEEL SENSOR ASSY, R$139.99$109.19Usually ships in 7-10 business days
1992014-06014-00BOLT, BUTTON HEAD$4.05$3.486 In-Stock
