HEADLIGHT

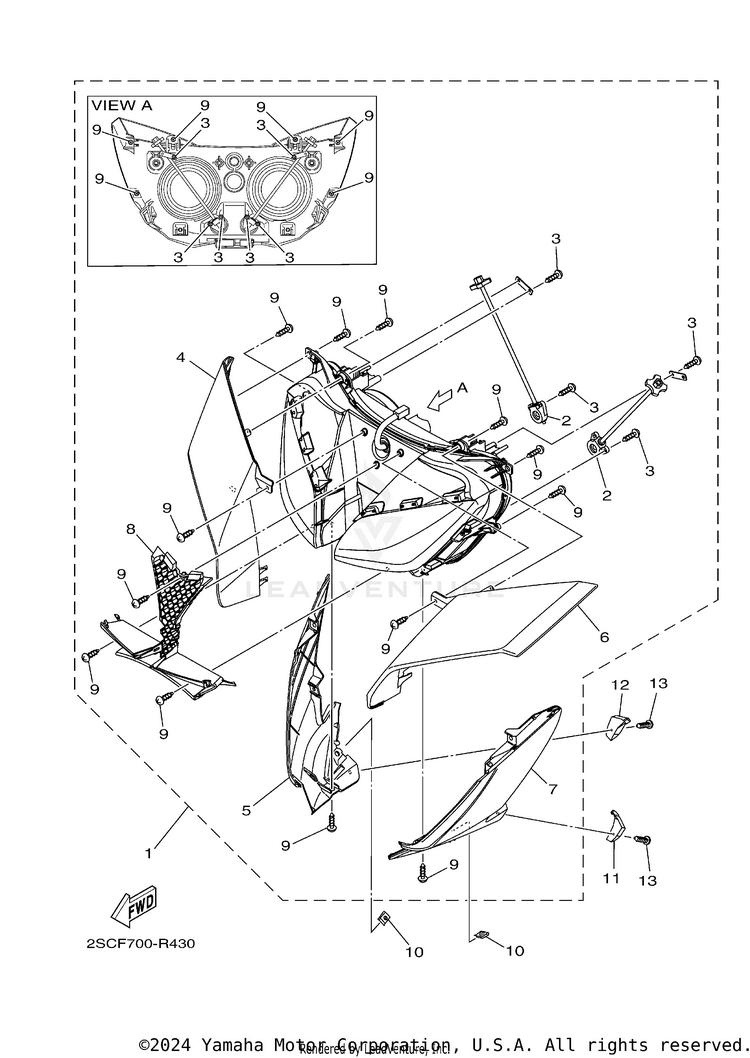

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12PP-84300-30-00HEADLIGHT ASSY | UR FOR SMX$914.99$741.66Usually ships in 7-10 business days
12PP-84300-22-00HEADLIGHT ASSY | UR FOR MS1$1,320.99$1,072.20Usually ships in 7-10 business days
22SC-8430M-00-00GEAR UNIT ASSY$72.99$56.93Usually ships in 7-10 business days
32SC-84526-00-00SCREW$1.30$1.17Usually ships in 7-10 business days
42SC-84196-20-00COVER A | UR FOR MS1$59.99$46.79Usually ships in 7-10 business days
42SC-84196-30-00COVER A | UR FOR SMX$59.99$46.79Usually ships in 7-10 business days
52SC-84544-00-00COVER B$25.99$21.31Usually ships in 7-10 business days
62SC-84396-30-00COVER C | UR FOR SMX$68.99$53.81Usually ships in 7-10 business days
62SC-84396-20-00COVER C | UR FOR MS1$68.99$53.81Usually ships in 7-10 business days
72SC-84797-00-00COVER D$25.99$21.31Usually ships in 7-10 business days
82SC-84144-00-00COVER E$32.99$27.05Usually ships in 7-10 business days
92SC-84526-00-00SCREW$1.30$1.17Usually ships in 7-10 business days
1090183-05042-00NUT, SPRING-$3.2010+ In-Stock
112PP-84366-00-00DAMPER, HEADLIGHT 1$14.49$11.88Usually ships in 7-10 business days
122PP-84367-00-00DAMPER, HEADLIGHT 2$11.49$9.42Usually ships in 7-10 business days
1390269-03002-00RIVET$1.75$1.58Usually ships in 7-10 business days
