2016 Yamaha FJR1300A Shift Cam Fork OEM Parts Diagram

Submodel FJR1300A - FJR13AGC - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

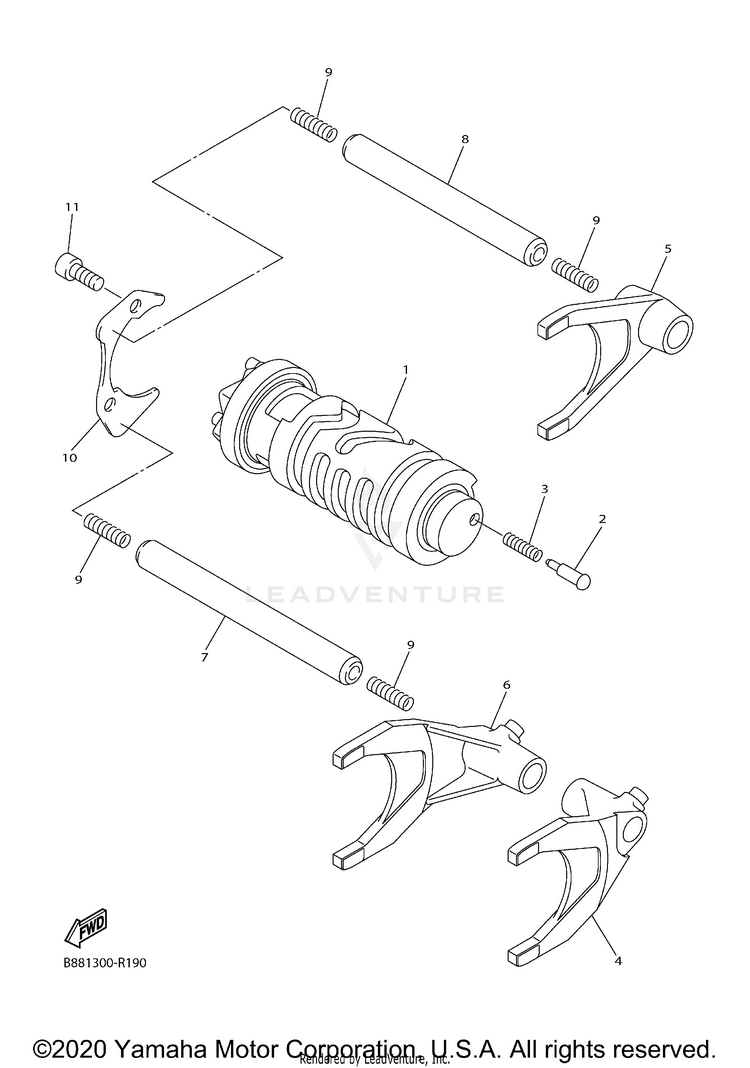

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B88-18540-00-00SHIFT CAM ASSY$203.99$161.77Usually ships in 7-10 business days
23D7-18542-00-00POINT, NEUTRAL$7.49$5.84
390501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
4B88-18511-00-00FORK, SHIFT 1$176.99$140.31Usually ships in 7-10 business days
5B88-18512-00-00FORK, SHIFT 2$78.99$61.61Usually ships in 7-10 business days
6B88-18513-00-00FORK, SHIFT 3$190.99$151.26Usually ships in 7-10 business days
74XV-18531-00-00BAR, SHIFT FORK GUIDE 1$24.99$20.49Usually ships in 7-10 business days
85JW-18535-00-00BAR, SHIFT FORK GUIDE 2$21.99$18.03Usually ships in 7-10 business days
990501-064L1-00SPRING, COMPRESSION$2.35$2.0210+ In-Stock
105JW-18536-00-00STOPPER, SHIFT BAR$7.99$7.19Usually ships in 7-10 business days
1191317-06012-00

(replaces part #
90110-06182-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
