2016 Yamaha FJR1300A Transmission OEM Parts Diagram

Submodel FJR1300A - FJR13AGC - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TRANSMISSION

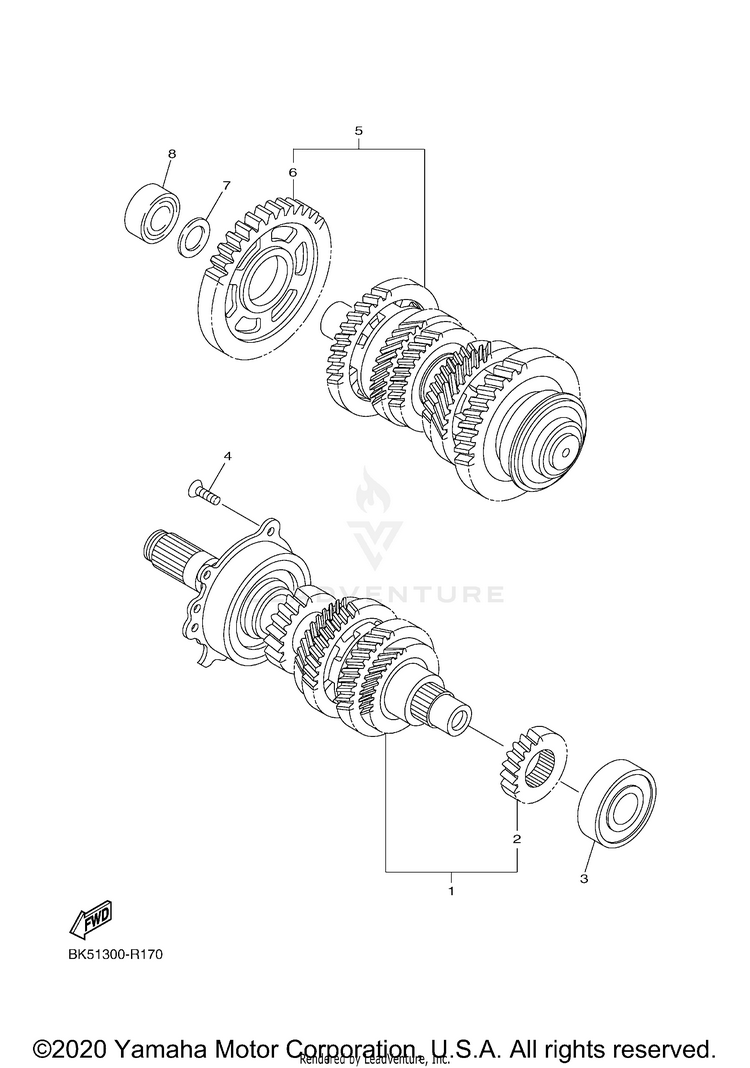

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B96-17410-10-00

(replaces part #
B88-17410-00-00)

MAIN AXLE COMP.$1,075.99$900.78Usually ships in 7-10 business days
2B88-17111-00-00GEAR, 1ST PINION$214.99$169.97Usually ships in 7-10 business days
393306-37214-00BEARING$58.99$46.01Usually ships in 7-10 business days
490149-06126-00

(replaces part #
90149-06086-00)

SCREW$10.49$8.1810+ In-Stock
5B96-17420-00-00

(replaces part #
B88-17420-00-00)

DRIVE AXLE ASSY$1,169.99$1,023.12Usually ships in 7-10 business days
6B88-17582-00-00GEAR, MIDDLE DRIVE$135.99$106.07Usually ships in 7-10 business days
790201-25008-00WASHER, PLATE$10.49$8.60Usually ships in 7-10 business days
893304-20508-00BEARING$102.99$80.33Usually ships in 7-10 business days

Get additional RM Cash on OEM purchases!

Select parts to add, then click
